Introduction
Tube end forming changes the geometry near one or both ends of a tube. The formed section may create a connection, provide a sealing surface, locate another component, improve assembly access or prepare the tube for a later joining operation. The process is used across many industries, but the required equipment is determined by the specific profile and material rather than the general term end forming.

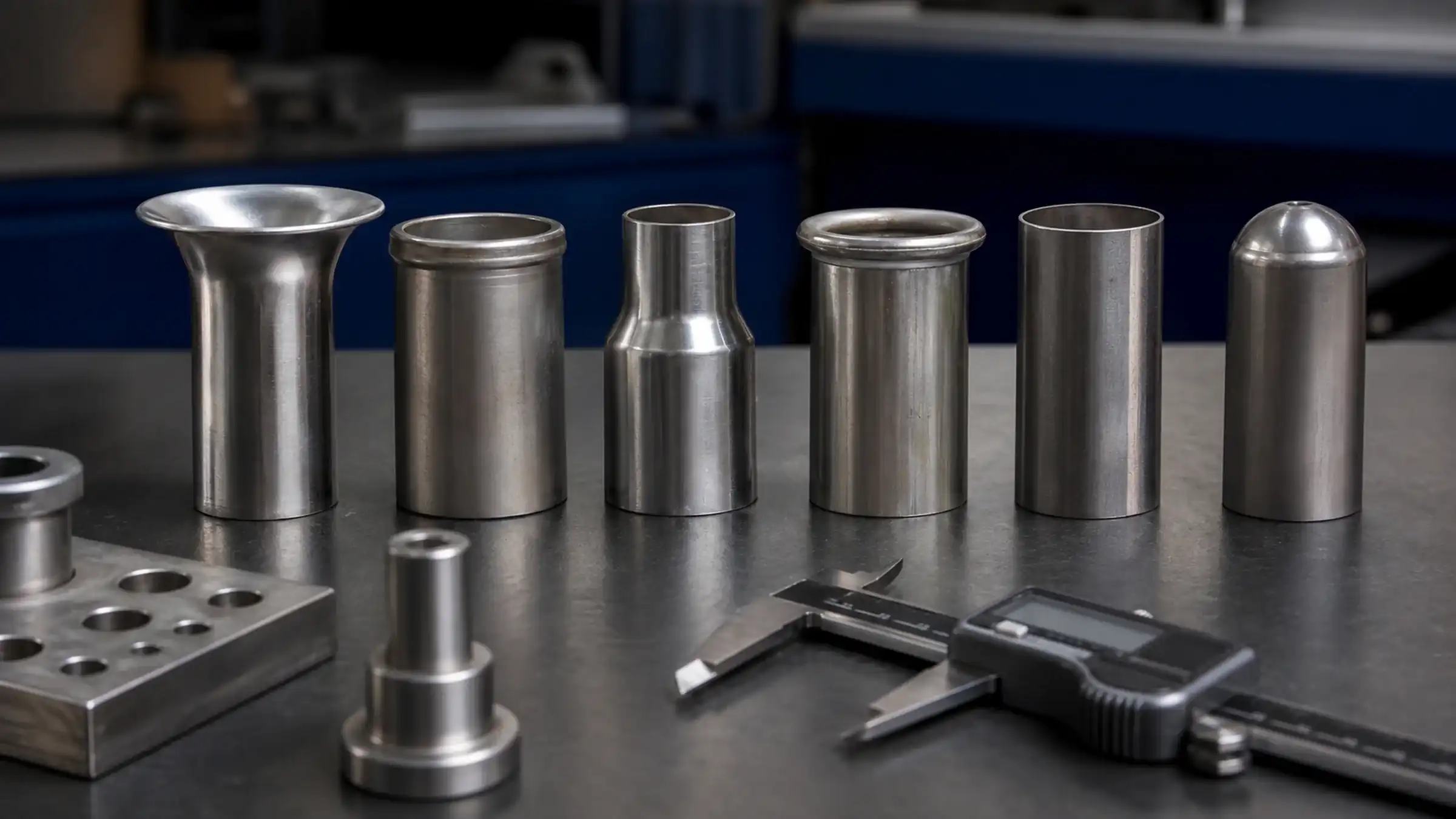

Common operations include expansion, reduction, flaring, beading, sizing and combinations of these forms. Some are made by axial pressing, some by segmented tooling, spinning or rotary action, and some require several controlled stages. A shape that looks simple on a drawing may demand careful material flow if the wall is thin, the expansion is large or the transition is short.
Buyers should provide the tube material, shape, outside diameter, wall thickness, finished end dimensions, transition geometry and finished-part drawing. Bending radius and existing bends also matter because a formed or bent part must fit the machine and tooling. Required output, batch size and downstream inspection complete the basis for machine selection.
Common End Forming Processes
Expansion and reduction
Expansion increases a tube end to accept another component or create a joining interface. Reduction decreases the outside diameter or changes the section for insertion, location or assembly. Either process may be produced in one or more stages depending on material ductility, dimensional change, wall behavior and surface requirements.
During expansion, the wall can thin and the material may split if the requested form exceeds what the tube condition can support. During reduction, material can thicken or buckle if it is not guided. Tooling must control the transition as well as the final diameter. The supplier should review both inside and outside dimensions when the function depends on fit.
Flaring and beading
A flare opens the tube end into an angled or radiused profile. It may support a joint, fastener or sealing concept when designed for the mating component. A bead creates a local raised feature around the tube and may be used for hose retention, location or reinforcement. The required shape, height, width and transition should be defined on the drawing.
Surface finish and edge preparation can be important. A rough cut edge may crack during flaring, while an inconsistent starting length can shift the final feature. When the bead or flare interacts with a seal, the inspection method should reflect the functional contact area rather than only an outside diameter.
Sizing, calibration and combined forms
Sizing or calibration brings a tube end to a controlled final section. It may follow cutting, welding, bending or another forming step. Combined forms can include an expanded section with a bead, a reduced section with a calibrated bore or several diameters connected by short transitions.
Complex profiles may require progressive tooling or multiple stations so the material moves in controlled steps. The appropriate sequence depends on the starting tube, shape and tolerances. Additional stages can improve control in suitable applications, but they also affect cycle, tooling cost, changeover and inspection.
| Process | Typical functional objective | Key review points |
|---|---|---|
| Expansion | Receive or overlap another component | Wall thinning, split risk, final inside and outside size |
| Reduction | Create an insertion or locating section | Buckling, wall buildup, transition length, concentricity |
| Flaring | Form an open end or mating face | Edge condition, flare angle, surface quality, material ductility |
| Beading | Add a retention or locating feature | Bead profile, collapse, feature position, sealing surface |
| Sizing | Calibrate a functional end section | Starting variation, springback, gauge method, tool access |
| Combined forming | Create a multi-feature connection | Stage sequence, intermediate geometry, changeover, inspection |
Match Tooling and Machine Layout to the Application
Tooling may act from inside the tube, outside the tube or both. Axial presses can drive a punch or segmented tool into a supported workpiece. Rotary or spinning methods can distribute forming around the circumference. Some profiles require a dedicated die set, while flexible machines may accept several tool families within a defined range.
Review the complete part before selecting the machine. A bend close to the end can limit clamping length or collide with the tool housing. A bracket, hole or welded feature may prevent insertion into a standard support. Long parts require stable support, and double-ended work may need orientation control or a transfer strategy.
Application review checklist:
- Identify the functional purpose of every formed surface.
- Dimension the starting tube and completed profile from controlled datums.
- Define inside diameter, outside diameter, length and transition requirements.
- Mark cosmetic surfaces, coatings, weld seams and areas where tool marks are restricted.
- Confirm cut-end quality and whether chamfering is required before forming.
- Review bends, holes, brackets and other features for machine clearance.
- State whether forming occurs before or after bending, punching and welding.
- Define gauges and inspection frequency for the functional characteristics.
- Provide batch sizes, required output and expected changeover pattern.
- Select representative samples for a documented forming trial.
Output should be evaluated across the complete cycle. Loading, orientation, forming stages, lubrication, part release and inspection all contribute to usable production. Automatic feeding may suit straight cut blanks, while pre-bent or asymmetric parts may need robotic or manual handling designed around their geometry.
Common Mistakes
One mistake is specifying only a final outside diameter. A supplier also needs the formed length, transition, inside condition, allowable wall change and datum structure. Two parts with the same final diameter can require different tools.
Another mistake is ignoring the starting cut. Burrs, squareness and length variation can affect a flare, bead or calibrated end. Cutting and end preparation should be treated as part of the forming process.
Teams may also choose the operation order without checking tool access. Forming an end first can interfere with a bending collet, while bending first can prevent the part from entering the end forming machine. Review the full route with the actual geometry.
It is also risky to assume that material with the same general name will form identically. Grade, temper, heat treatment, weld seam and work history can change ductility and springback. Use the specified production material for trials.
Finally, avoid approving a sample with an undefined visual standard. Functional dimensions, cracks, folds, wall condition and surface marks need agreed inspection methods.
Information Buyers Should Provide
Provide the tube material and supply condition, tube shape, outside diameter or profile dimensions, wall thickness and cut length. Include a finished-part drawing with the complete end profile, transitions, tolerances and datums. If the part is bent, add bending radius, bend angles and the distance from the final bend to the formed end.
State the required output, batch sizes, changeover frequency and planned operation sequence. Identify joining, sealing, welding, coating or assembly functions that depend on the formed area. Add sample parts or mating-component information when fit is critical. A 3D model can support clearance review, but the controlled drawing should define acceptance.
Frequently Asked Questions
Can several end forms be made on one machine?
Potentially, if the machine accepts the required tooling, force, stroke, stages and part geometry. Each form still needs a dedicated technical review. Machine flexibility does not mean one tool can produce every profile.
Should tube ends be formed before or after bending?
The best sequence depends on clamping, clearance, datum control and risk of damaging the formed feature. Forming first may simplify handling of a straight blank, while bending first may protect dimensional relationships on another part. Evaluate both routes using the full drawing.
Is chamfering required before end forming?
Not always. Chamfering may help assembly, remove a burr or improve the starting edge for a particular form. In other cases, it can reduce support or change material flow. The need should follow the process trial and functional drawing.
How is an end form inspected?
Inspection may use plug gauges, ring gauges, profile gauges, calipers, fixtures or other methods suited to the feature. Choose a method that measures the functional characteristic and can be repeated in production. The gauge concept should be discussed before tooling approval.
Related Machines
Tube End Forming Machines provide the controlled motion and tooling interface for the selected profile. Tube Chamfering Machines may prepare cut edges or finished assembly features. Tube Cutting Machines establish blank length and end condition. Their sequence should be reviewed together with bending, punching and joining operations.
