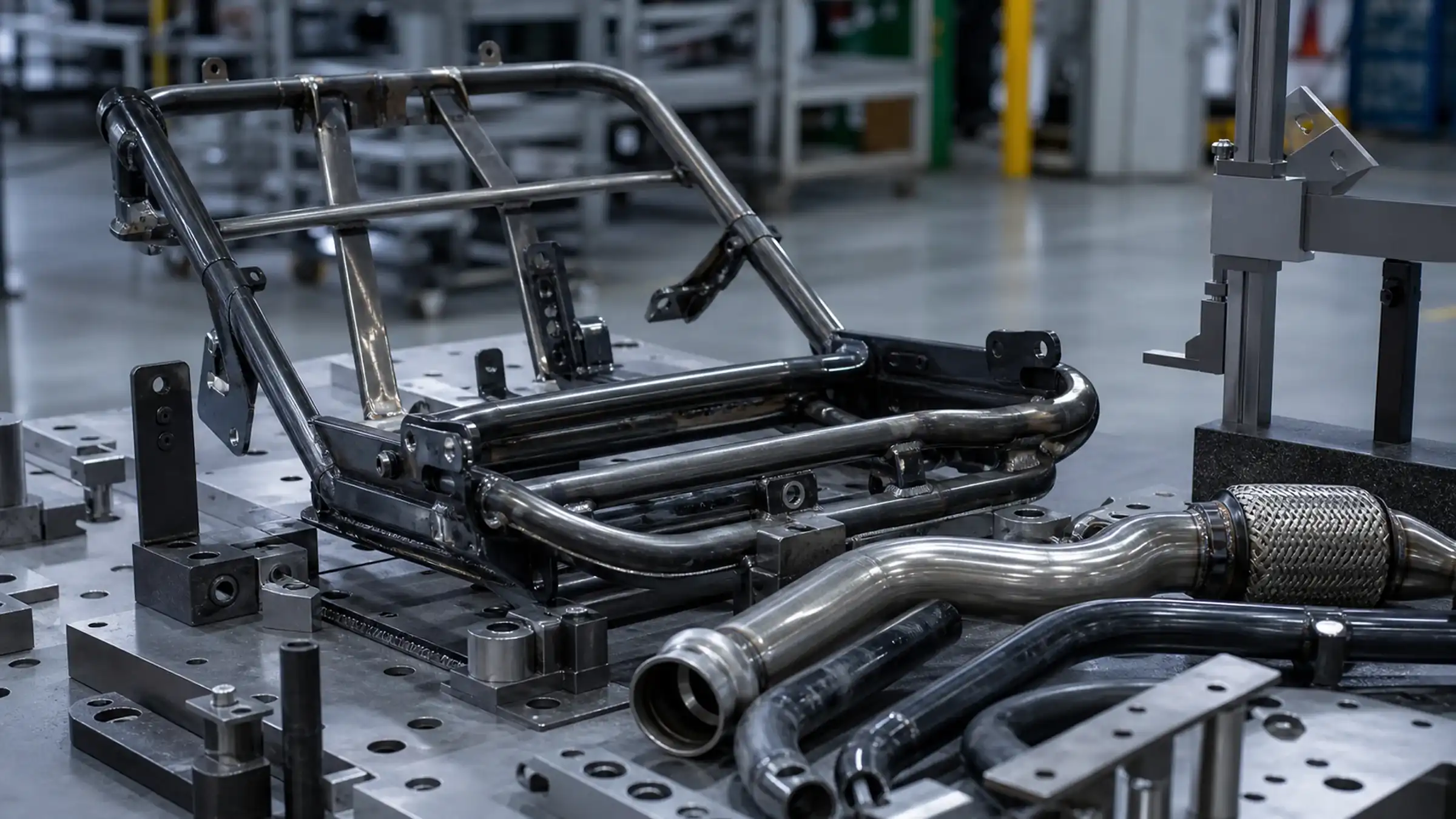

Introduction
Automotive tubular components appear in many assemblies, but the term does not define one process. A part may be a simple cut and chamfered tube, a multi-bend structure with mounting holes, or a formed component that must connect accurately with brackets, hoses or mating tubes. The correct equipment concept depends on the released part family and its production conditions.
Manufacturing engineers should begin with functional datums and the full sequence from raw tube to accepted component. Procurement teams should compare proposals on scope, tooling, handling, inspection, changeover and test evidence, not only on nominal machine capacity. A solution that makes one sample is not automatically a stable production plan for several variants.
Automotive programs can introduce specific documentation, traceability, safety and quality requirements. These requirements vary by customer, product and plant. They should be supplied by the buyer and built into the project plan rather than assumed by the equipment provider. No machine family by itself establishes compliance with a particular customer standard.
Map the Component to a Complete Process Chain
Start by identifying every transformation of the tube. Typical operations can include stock loading, length measurement, cutting, chamfering, deburring, punching, bending, end forming, washing, marking and inspection. Welding, coating or assembly may occur outside the tube-processing cell but still influence datums and acceptance.
The process sequence should protect critical features. For example, punching on a straight tube may provide simple access and support, but a later bend can change the final position of that hole relative to an assembly datum. Punching after bending may improve final reference control, yet the formed shape can restrict loading or tooling access. The correct order depends on the tolerance chain and available inspection method.
Bending evaluation should include tube material, outside size, wall thickness, centerline radius, bend angles, distances between bends and three-dimensional orientation. Tooling access and straight lengths near each bend matter. Springback and section change depend on the submitted material and geometry, so capability should be confirmed through review and representative trials rather than assumed from a catalog range.
Cutting and end preparation also affect the finished assembly. The cut end may serve as a locating datum, a welding interface or the starting point for an end form. Burr direction, chamfer geometry, end squareness and surface condition should be defined according to function. If a cut end is later formed, the allowable variation should be reviewed across both operations.
Punching requires stable orientation, especially when holes reference a bend plane, tube seam or profile face. End forming requires a clear definition of the mating feature, forming length and inspection diameter or profile. Each process should use datums that can be transferred or re-established without creating an uncontrolled chain of small errors.
Select Equipment Around Variation, Handling and Quality
The machine concept should reflect product mix. A dedicated cell may suit a stable part family with common material and tooling. A more flexible platform may be useful when recipes, lengths or bend programs change frequently. Flexibility still has limits because clamps, mandrels, dies, punches and end-forming tools are tied to geometry. Ask for a tooling matrix that separates common components from part-specific components.
Handling deserves the same attention as the core process. Raw tube length, finished-part envelope, center of gravity, hot or sharp surfaces, orientation and risk of cosmetic damage can determine whether loading is manual, assisted or automated. Output should be calculated from a defined good-part cycle that includes these tasks. A quoted machine movement time is not a production rate.
Use this comparison during concept review:
| Decision area | Questions to answer | Evidence to request |
|---|---|---|
| Process sequence | Which operation establishes each critical datum? | Marked process drawing and operation flow |
| Machine scope | Which variants fit the proposed platform? | Part-to-machine compatibility matrix |
| Tooling | Which items are common, dedicated or wear parts? | Tool list and changeover description |
| Material handling | How are parts loaded, oriented and unloaded? | Cycle narrative and layout |
| Quality control | Where are critical features inspected? | Inspection plan and gauge concept |
| Traceability | What records must follow a batch or part? | Buyer requirement and proposed data flow |
| Factory testing | Which parts and material will be tested? | Agreed FAT protocol and sample list |
| Ramp-up | What training and process documents are included? | Scope list with responsibilities |
Quality planning should distinguish machine control from part verification. A program value or axis display does not prove the finished component. Inspection may require fixtures, gauges, measurement equipment or destructive checks selected for the actual feature. The buyer should define critical characteristics and sampling expectations. The supplier should explain what the machine records and what must be verified separately.
Review this practical checklist before concept approval:
- Confirm all initial part numbers and revisions.
- Identify critical assembly datums and special characteristics defined by the buyer.
- Map each feature to an operation and an inspection point.
- Document material grades, conditions and approved variation.
- Separate cycle time, changeover time and planned maintenance time.
- Define operator tasks and material presentation.
- List required recipes, permissions, reports and traceability interfaces.
- Agree on good-part handling and nonconforming-part control.
- Confirm the representative parts and material for factory testing.
- Record open items, owners and decision dates.
Common Mistakes
A common mistake is selecting a bending machine first and treating cutting, punching, end forming and inspection as later additions. This can create incompatible datums or handling problems. Begin with the finished component and build the sequence before freezing individual equipment.
Another mistake is using one nominal tube size to represent a full product family. Parts with the same outside diameter can require different bend tools, clamps, hole orientation or end-forming dies. The supplier needs every planned variant and its expected volume.
Buyers may also request a fast cycle without defining the boundary of that cycle. Loading stock, scanning or selecting a recipe, unloading the part, checking a gauge and separating rejects can be significant. A fair comparison uses the same start condition, end condition and operator assumption for every proposal.
Do not assume that automation removes variation in incoming tube. Material tolerances, seam condition, straightness and surface finish can influence clamping and forming. Define the input material and how out-of-spec stock will be identified.
Finally, avoid treating factory acceptance as an informal demonstration. Test parts, measurement methods, sample quantity, pass criteria and responsibilities should be approved in advance. Any customer-specific documentation should also be listed explicitly.
Information Buyers Should Provide
The technical package should include:
- Tube material, grade, delivery condition and any approved alternatives
- Tube shape, including round, square, rectangular or special section
- Outside diameter or profile dimensions
- Wall thickness and relevant tolerances
- Bending radius, bend angles and spatial orientation
- Finished-part drawing with revision, functional datums and critical dimensions
- Required output as good parts over a defined time and shift pattern
- Forecast product mix, batch size and changeover frequency
- Hole, slot, notch, chamfer and end-form details
- Upstream and downstream processes, including welding or coating when relevant
- Raw material presentation and finished-part handling expectations
- Plant utilities, floor-space and interface constraints
- Inspection, documentation and traceability requirements set by the buyer
- Factory testing samples, material and acceptance expectations
Include a part-family matrix when several components are involved. If requirements are still open, mark them TBC and identify the decision owner. The machine supplier should use conditional language until the final tube material, shape, OD, wall thickness, bending radius, finished-part drawing and output are confirmed.
Frequently Asked Questions
Can one cell produce several automotive tube variants?
It may be possible when the variants fit the proposed machine range and the tooling, handling and inspection changes are practical. Ask for a compatibility and changeover matrix. Similar-looking parts should not be assumed to share all tools.
Is CNC bending always required?
No. The suitable control approach depends on geometry, number of axes, repeatability needs, variant mix, operator plan and output. Some parts may suit an NC Tube Bending Machine, while more complex three-dimensional programs may justify a CNC Tube Bending Machine. The drawing and production plan should guide the choice.
Should quality gauges be included with the equipment?
That depends on the project scope and buyer's quality system. Dedicated gauges can be valuable for production checks, but their design, calibration responsibility and acceptance method must be agreed. Do not assume a gauge is included unless it appears in the scope.
How should a supplier demonstrate suitability?
The supplier should review the controlled drawing, representative material and agreed process conditions. Factory testing should use defined parts, methods and pass criteria. The evidence may include measured samples, process observations and agreed machine checks, depending on scope.
Related Machines
Automotive tube projects may involve CNC Tube Bending Machines or NC Tube Bending Machines, supported by Tube Cutting Machines, Tube Punching Machines, Tube End Forming Machines and Tube Chamfering Machines. These machines can be evaluated as standalone stations or as parts of a coordinated line.
The combination should remain conditional on the actual part family, material, layout and output. Integration can reduce handling in some cases, while separate stations can provide useful flexibility in others.
Send Your Drawing
Send the finished-part drawings and part-family matrix for an engineering review. Include tube material, shape, outside diameter, wall thickness, bending radius, required output, changeover expectations and buyer-specific inspection requirements. Request a proposed operation flow, tooling matrix, handling concept and list of open assumptions before comparing final offers.
