Automotive Tube Processing Solutions
From seat frames and headrest tubes to exhaust, EGR and structural components, Raysun configures complete tube processing solutions around your drawing, material and production requirements.
02 / APPLICATIONS
Automotive Tube Applications
Select a component to review its process requirements and recommended equipment.
SELECTED APPLICATION
Seat Frame Tubes
Seat structures including back frames, lower frames and welded support assemblies.
- Typical Material
- Carbon steel / high-strength steel
- Typical Tube Size
- Confirm from drawing
- Typical Processes
- Cutting / Bending / Punching / Welding / Inspection
- Key Production Challenge
- Bend geometry, hole position and assembly repeatability
- Recommended Equipment
- Tube Cutting Machine, CNC Tube Bending Machine, Tube Punching Machine
03 / PROCESS EXPLORER
Process Explorer
Select a process step to understand the operation, equipment and key control points.
CURRENT PROCESS

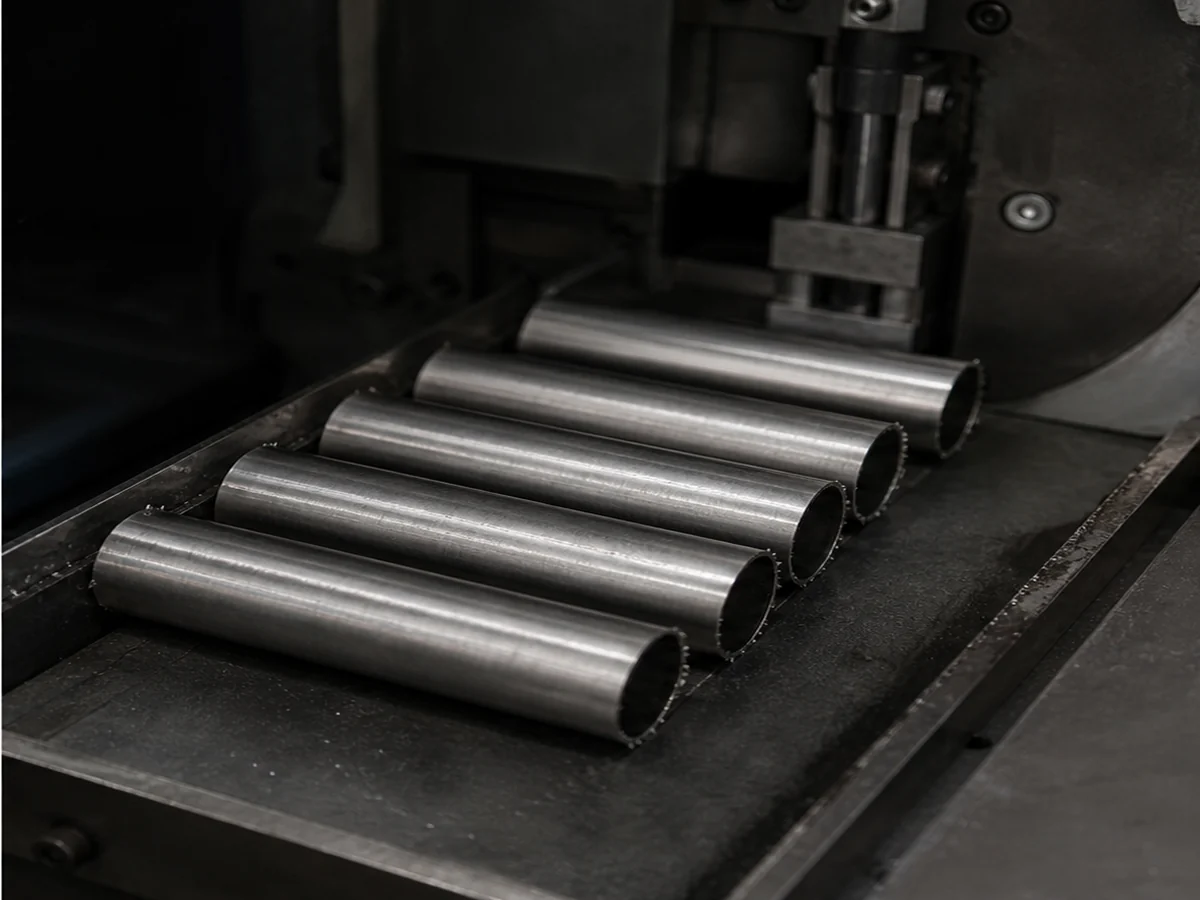

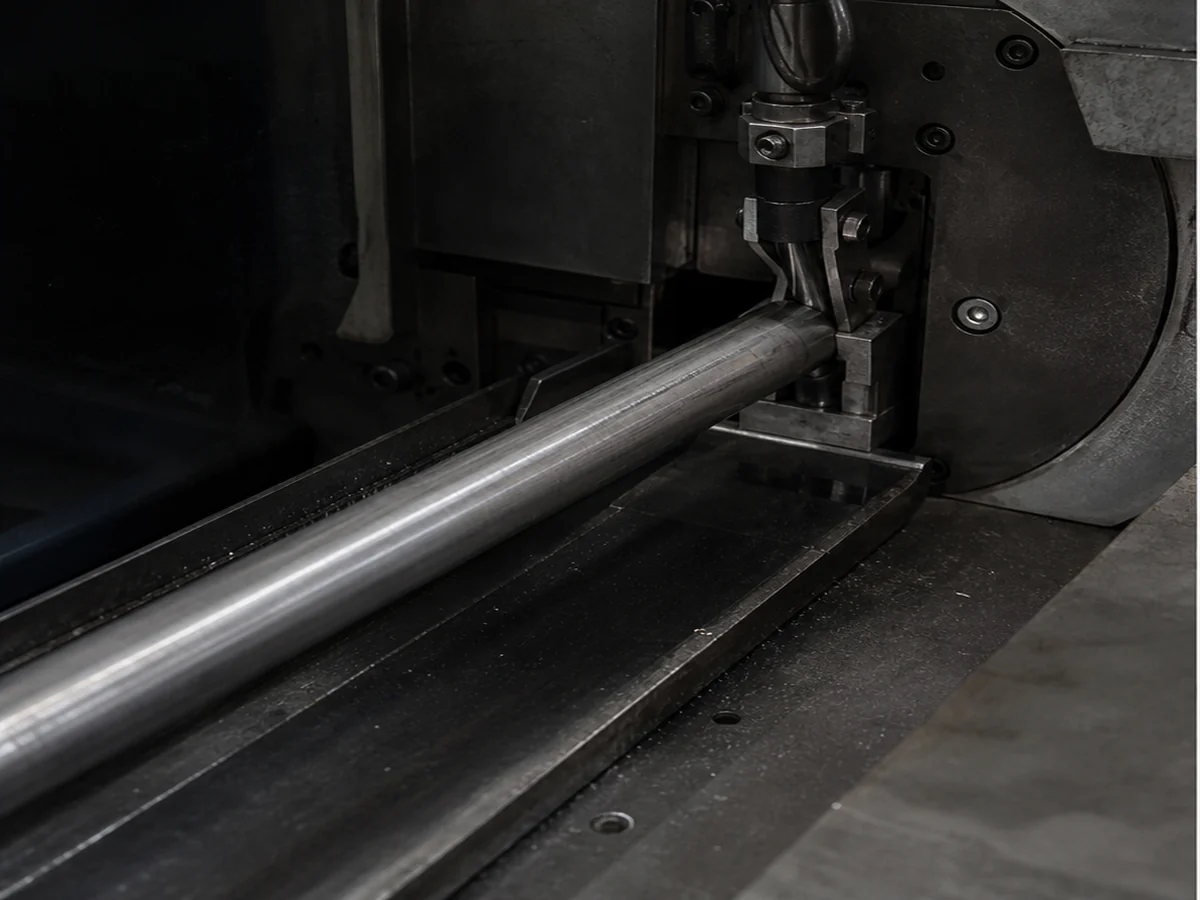

Automatic Tube Cutting
Precision cutting creates repeatable tube lengths and a stable datum for downstream operations.
Recommended Equipment
Automatic Tube Cutting Machine
Key Control Points
- Cut length
- End squareness
- Burr control
- Surface protection
04 / ENGINEERING CONTROL
Engineering Challenges

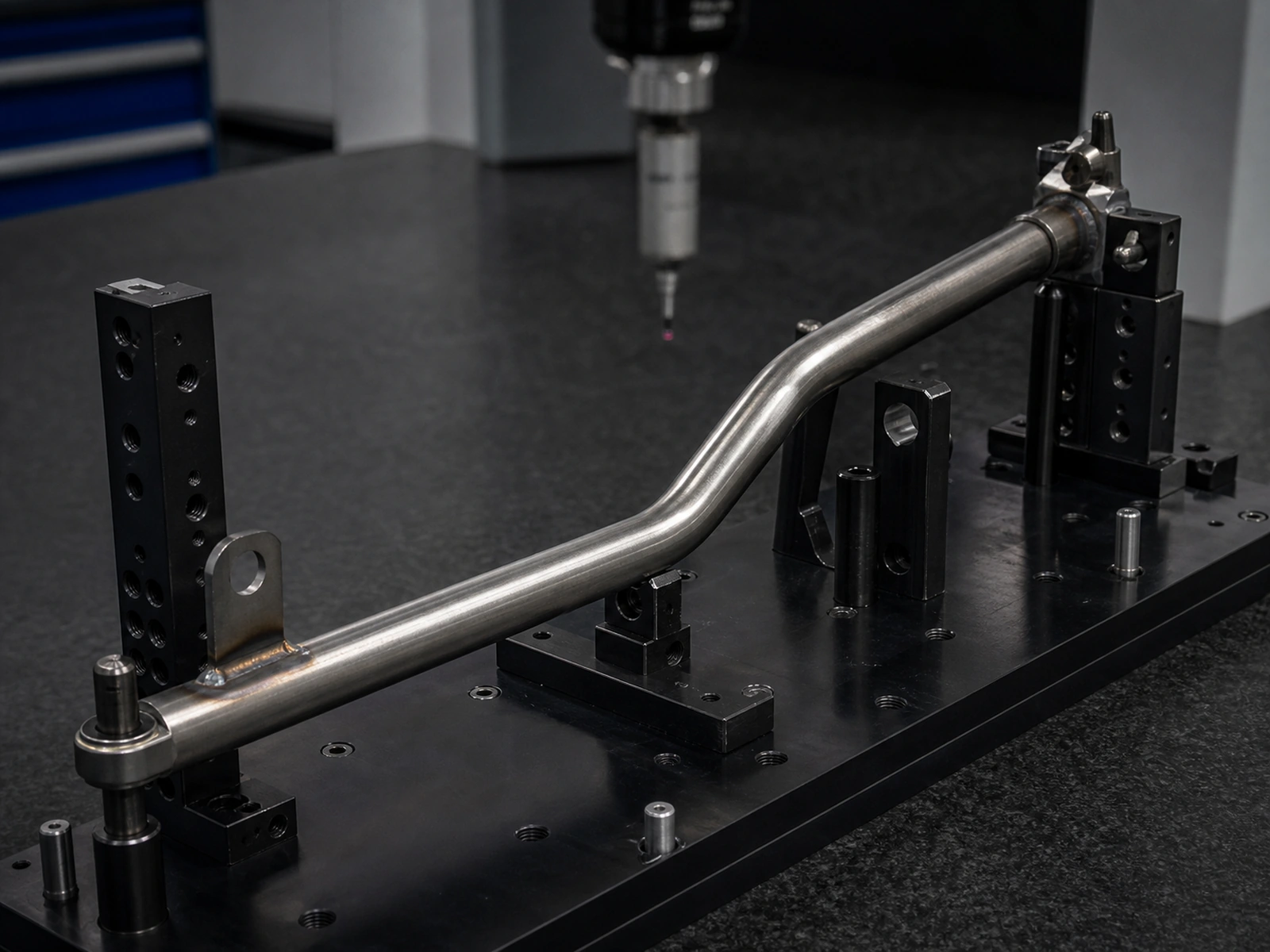

1234RAYSUN RESPONSE
Tooling design, mandrel selection and trial compensation are configured around the actual tube.
05 / EQUIPMENT CONFIGURATOR
Configure the Right Equipment Around Your Part
Choose the part and required operations to preview a practical processing route.
06 / PROJECT PATHS
Automotive Tube Processing Projects
Representative component routes for engineering discussion. Final parameters are confirmed from each customer drawing.
01 / SEAT STRUCTURE

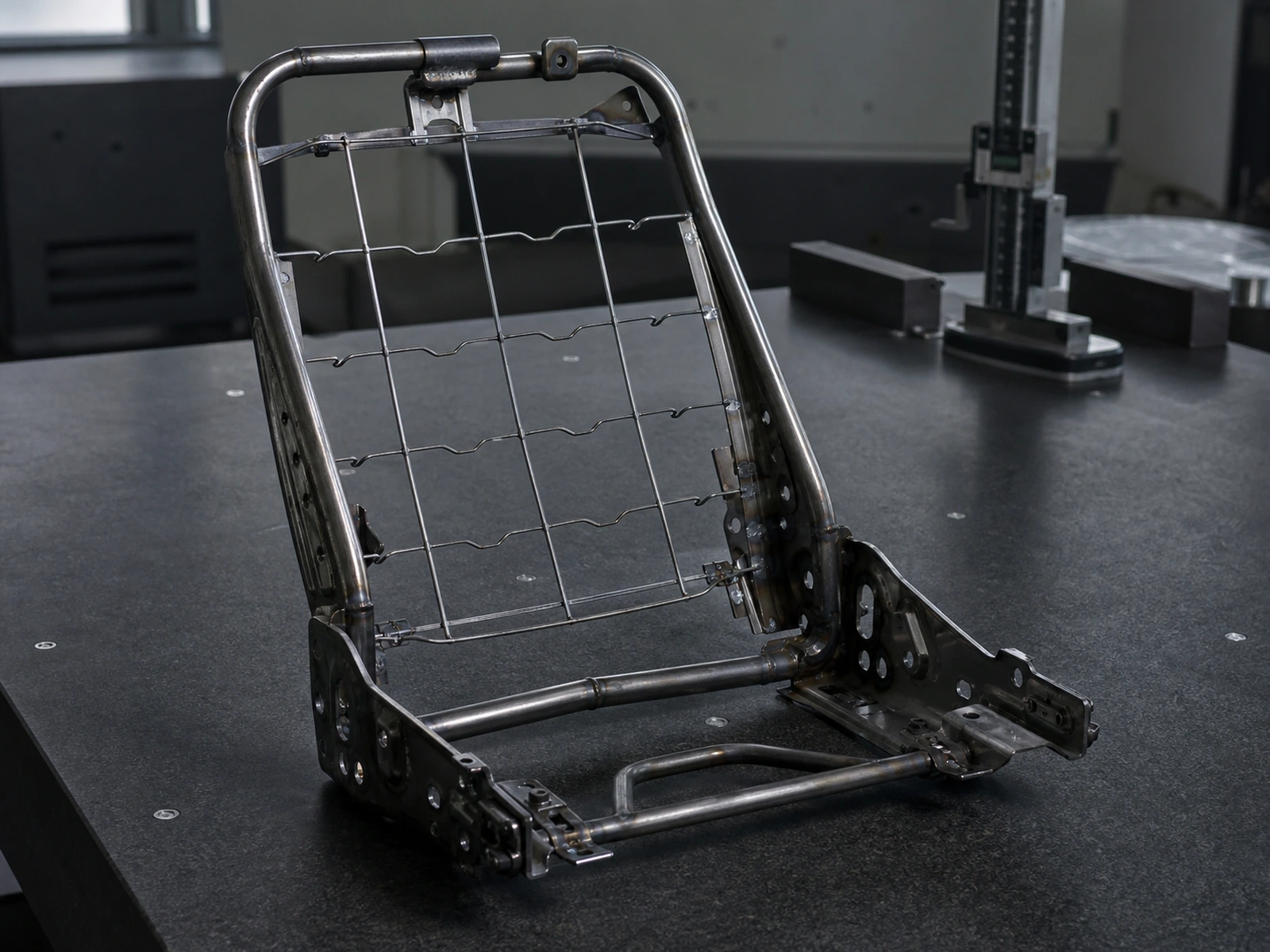

Automotive Seat Frame
Material: Confirm from drawingTube Size: Confirm from drawingProcess: Bending · Punching · Welding
02 / INTERIOR COMPONENT

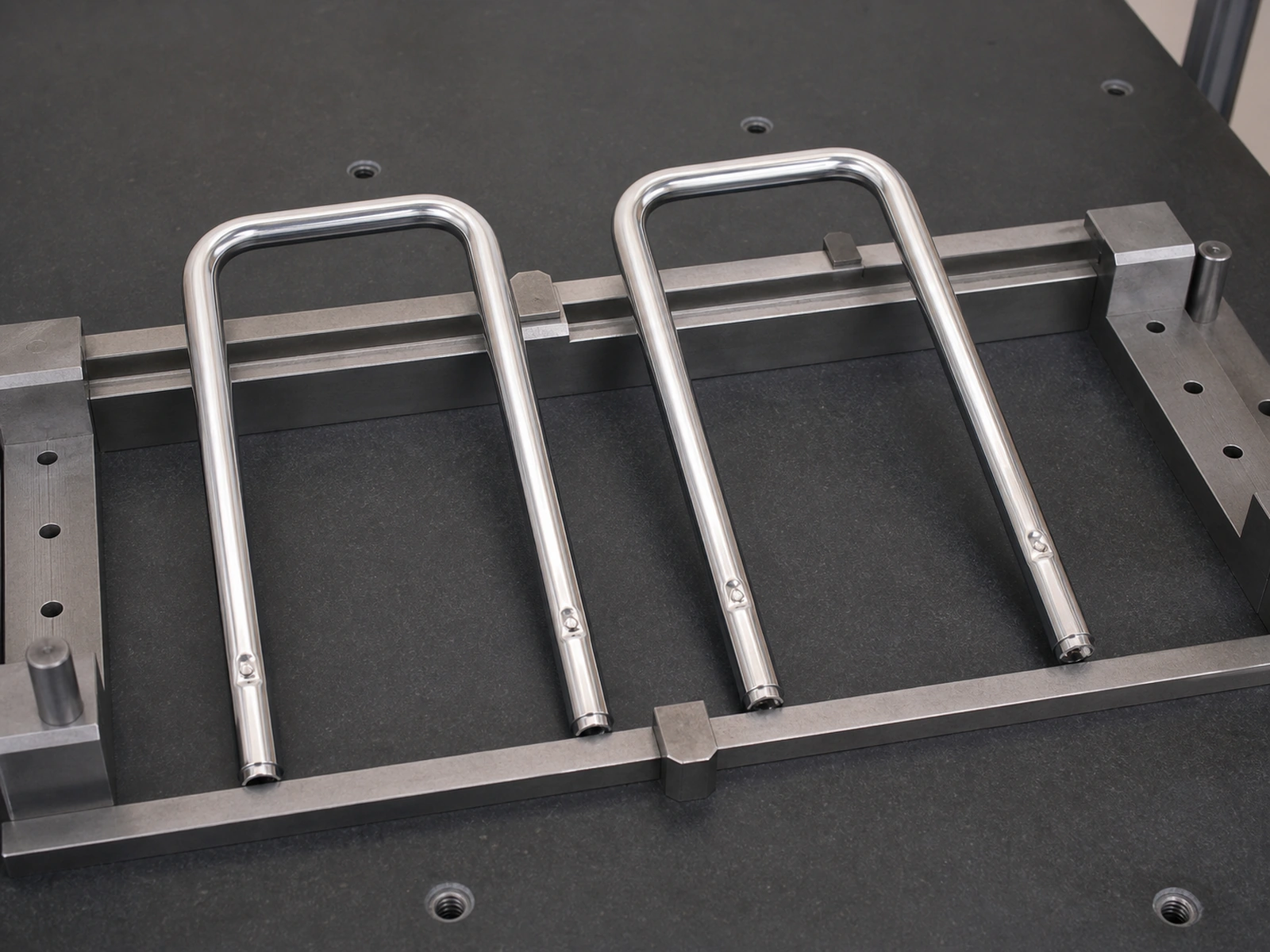

Headrest Tube Production
Material: Confirm from drawingTube Size: Small diameterProcess: Cutting · Chamfering · Bending
03 / EXHAUST SYSTEM

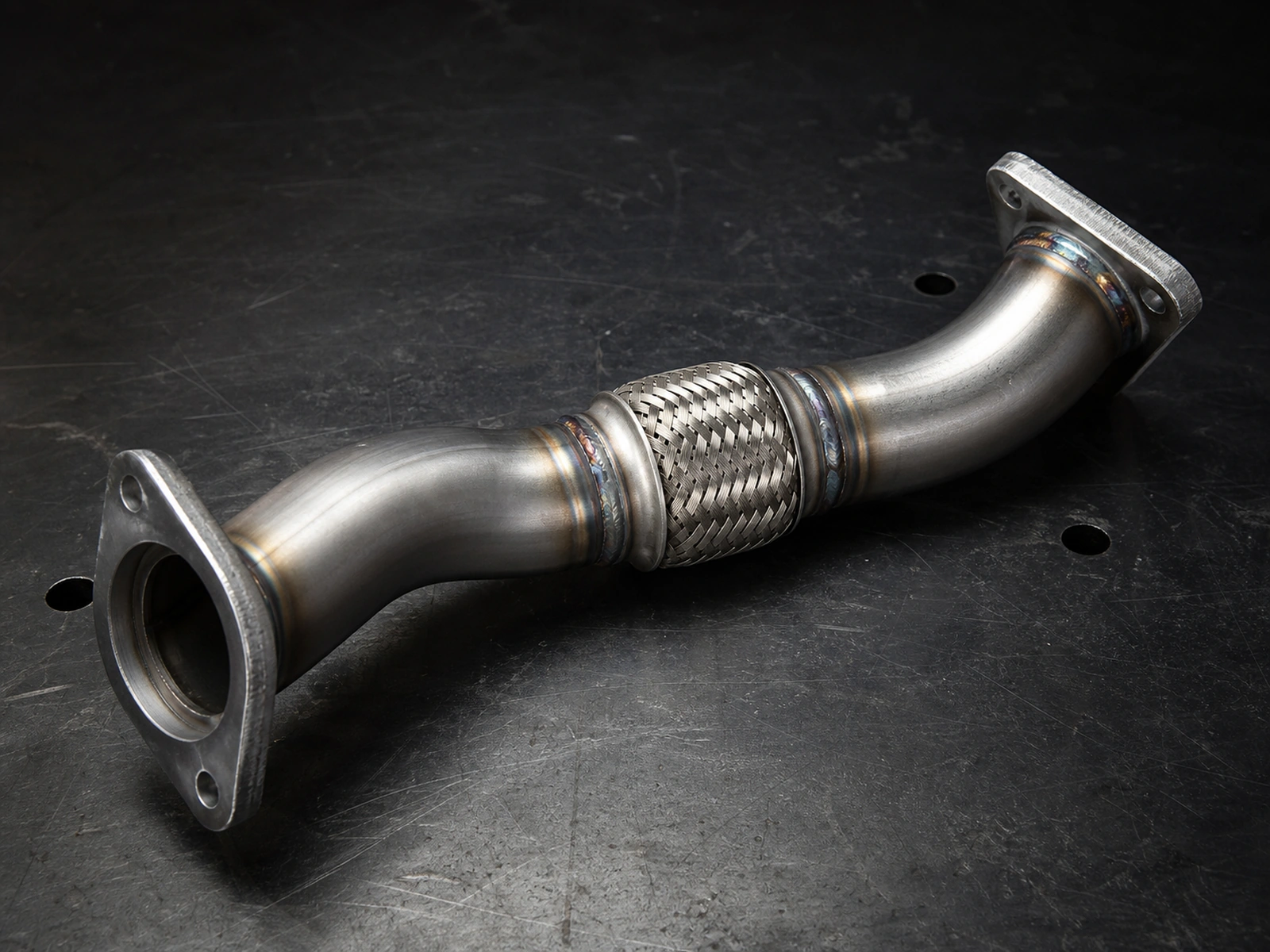

Exhaust Connection Tube
Material: Stainless steelTube Size: Confirm from drawingProcess: Bending · Forming · Welding
04 / STRUCTURAL COMPONENT

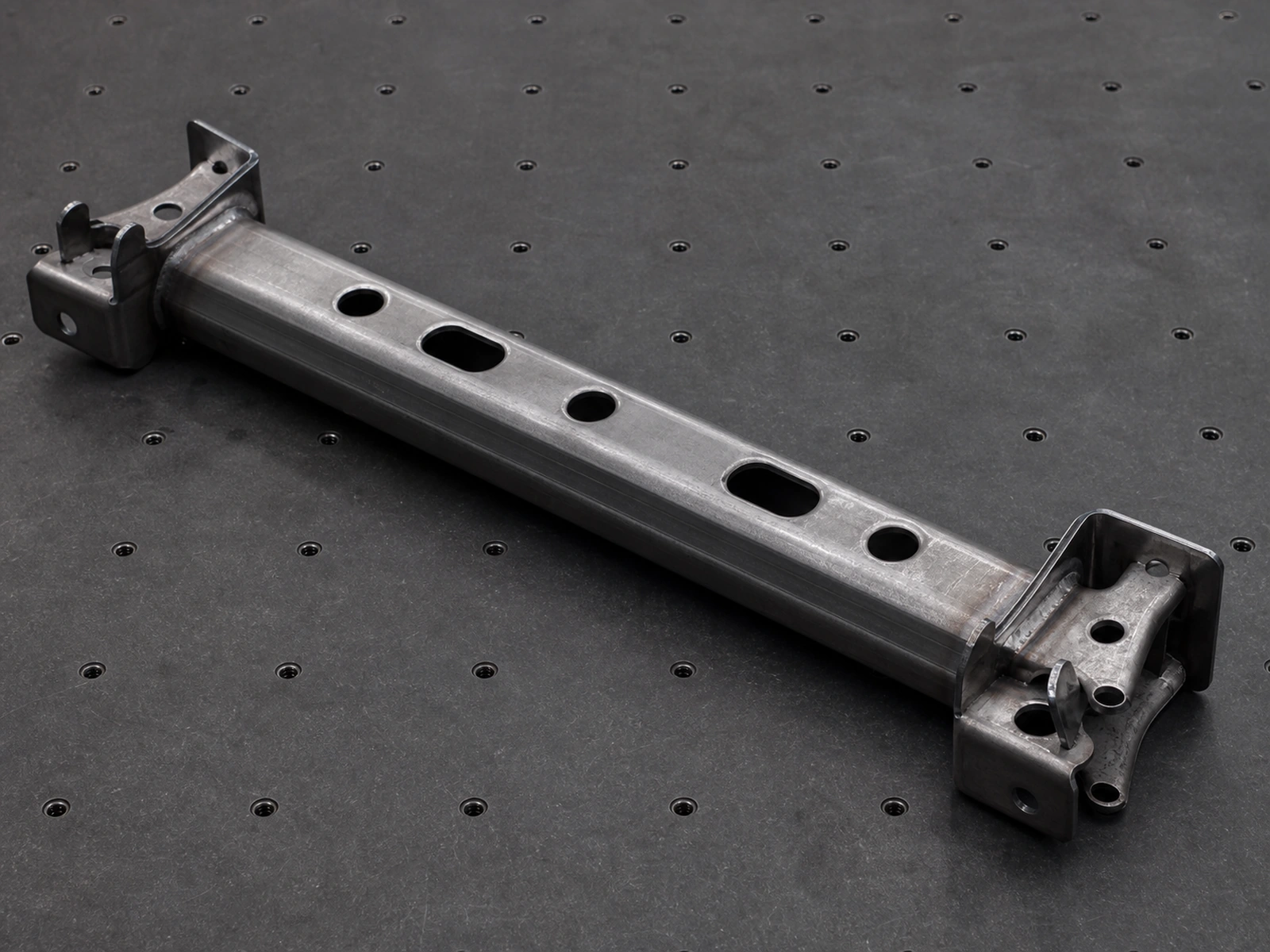

Seat Rear Cross Tube
Material: Confirm from drawingTube Size: Confirm from drawingProcess: End Forming · Punching
07 / PROJECT WORKFLOW
From Customer Drawing to Verified Sample
STEP 01
Drawing Review
Review geometry, material, tube size, tolerances and target output before selecting the process route.
08 / START YOUR PROJECT
Send Us Your Automotive Tube Drawing
Share your drawing, sample image and production requirement. Our engineers will review the part and recommend the suitable equipment configuration.
- Secure HTTPS submission
- Files: PDF, DWG, DXF, STEP, JPG, PNG
- Saved to Fluent Forms Entries
