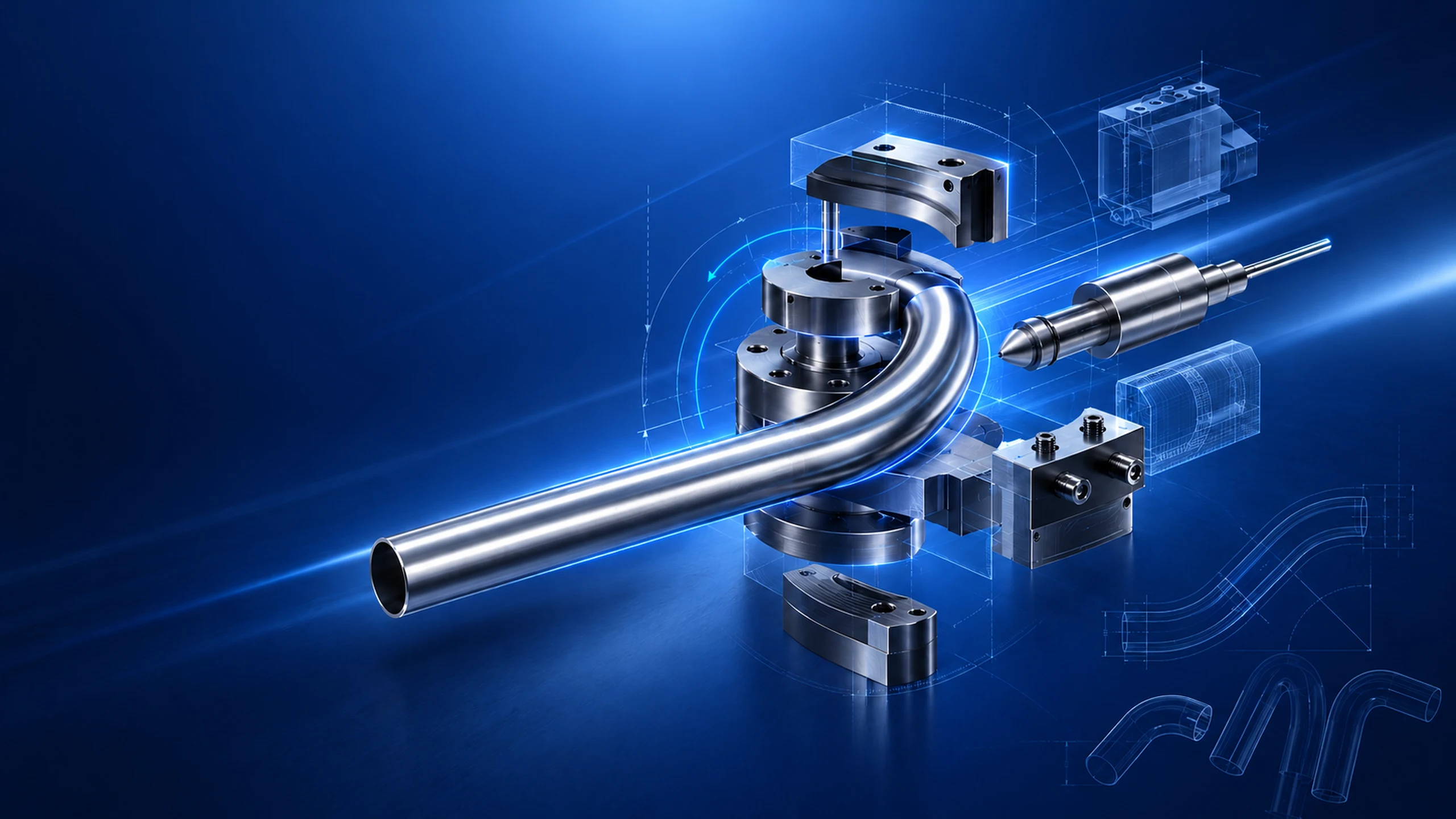

Pipe & Tube Processing Machines

RAYSUN PRODUCTS

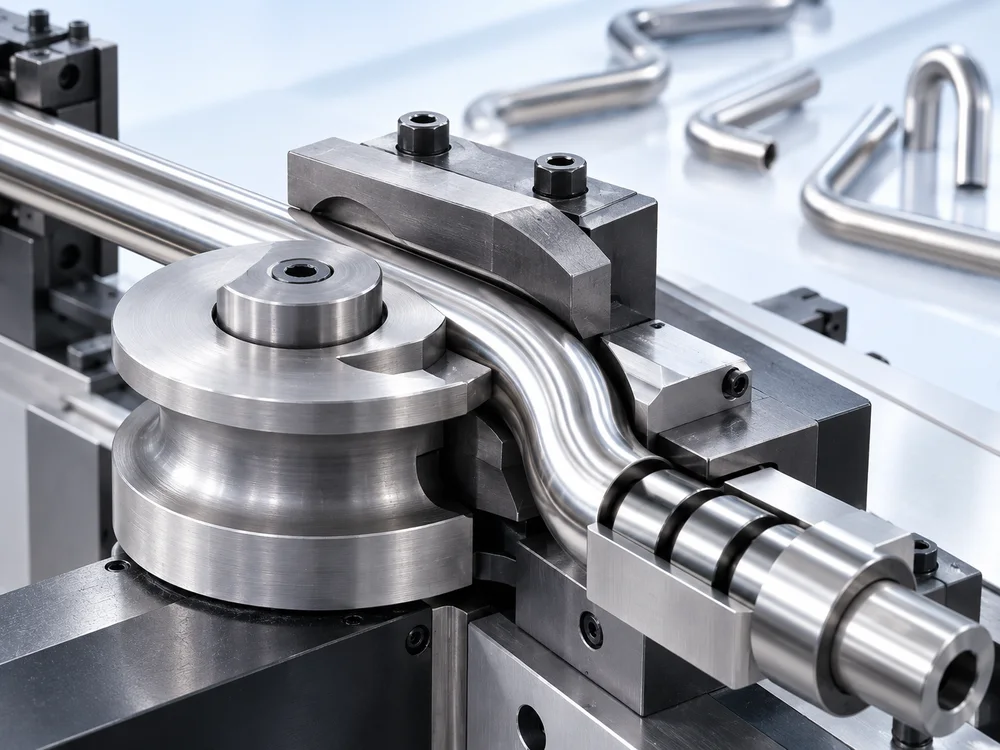

Tube Bending Machines

Explore CNC, hydraulic, double-head and roll bending configurations for complex tube geometries and production requirements. RAYSUN supports precision tube forming for automotive, furniture, HVAC, fitness and other industrial applications.

Max Tube Capacity

Up to Ø325.1 × 30 mm*Heavy-duty models available

Max Bend Radius

Up to R1200Model-dependent bending range

Max Bending Angle

Up to 190°CNC / NC configurations

Control Options

CNC / NC / PLCServo and hydraulic solutions

*Maximum capacity varies by machine model, material and wall thickness.

View Series →

Find your bending solution

Machine series & process support

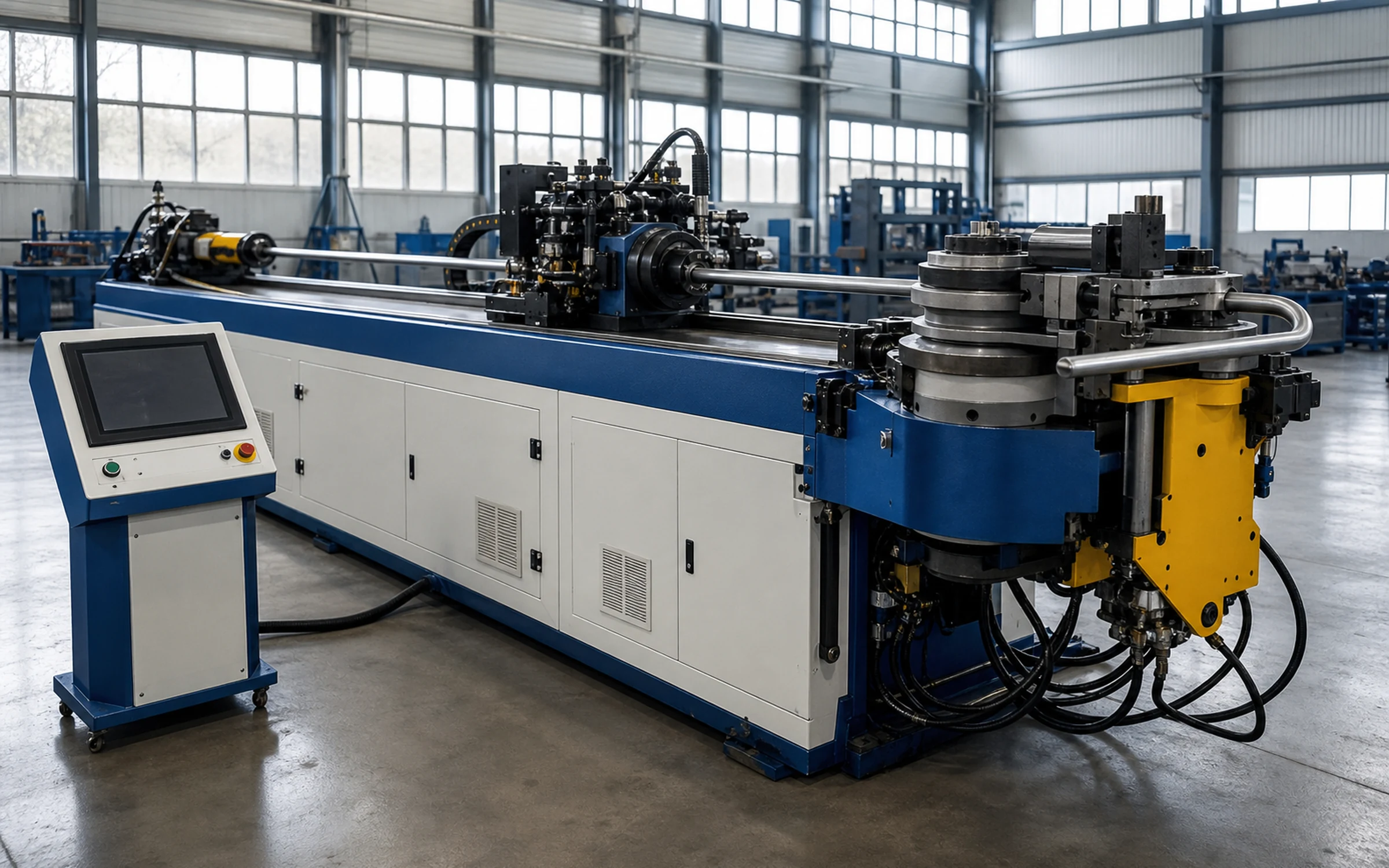

CNC Tube Bending Machines

High precision for complex 2D / 3D parts

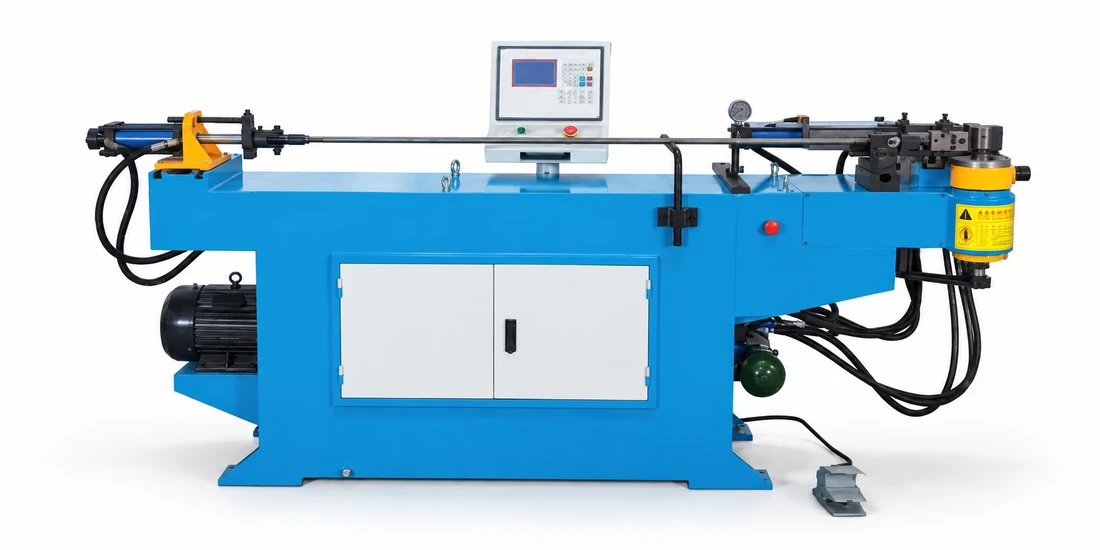

NC Hydraulic Tube Bending Machines

Reliable hydraulic bending for repeat production

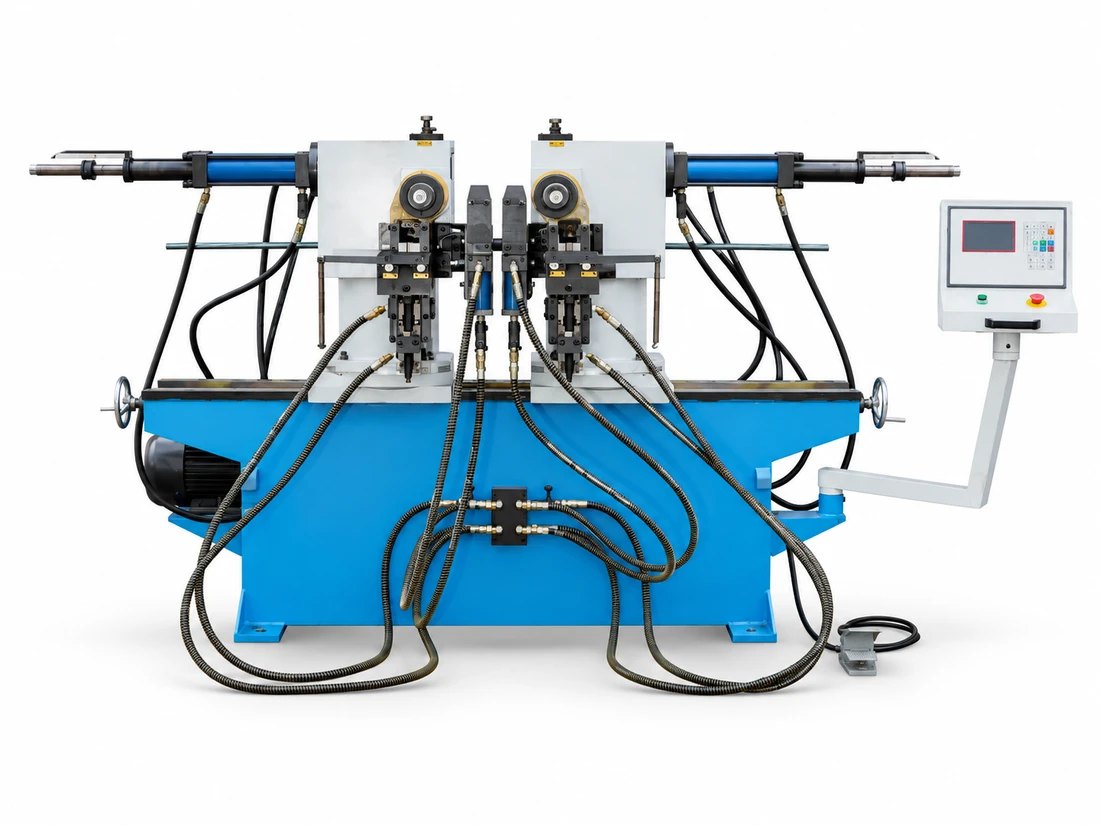

Single / Double Head Bending Machines

Efficient symmetric and multi-position bending

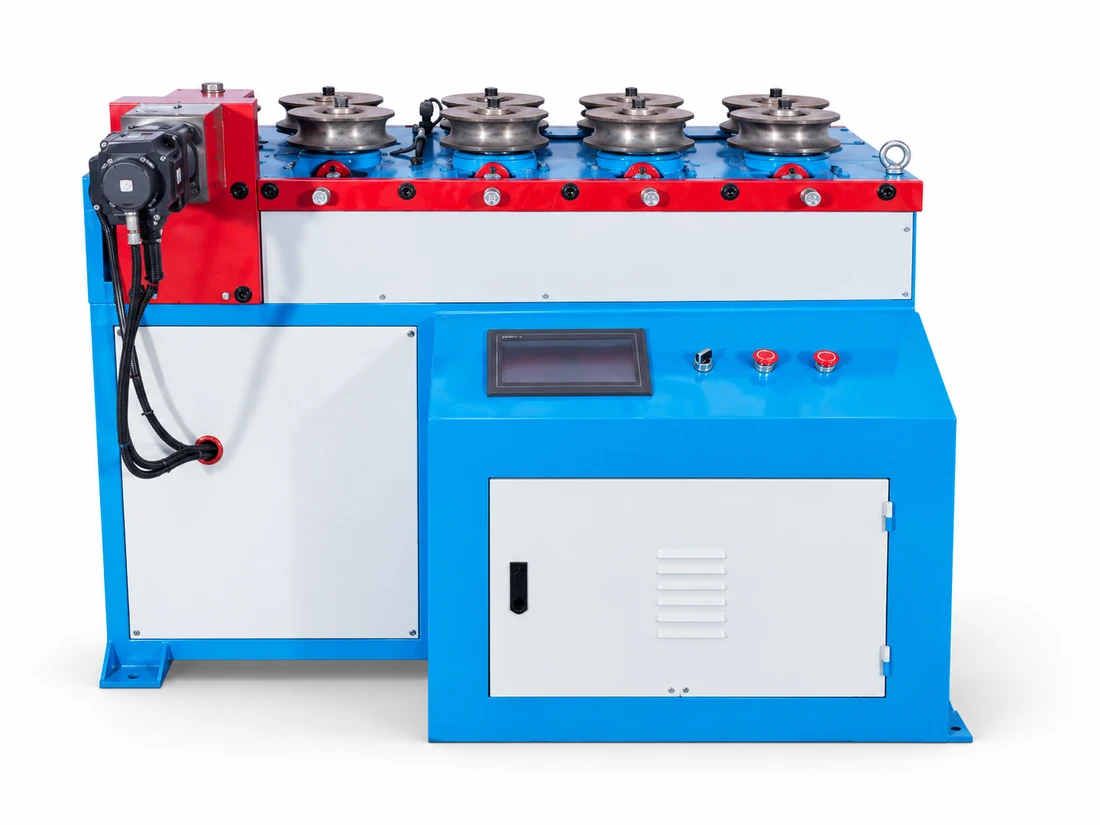

JW Series Roll Bending Machines

Large-radius arcs, circles and spiral forming

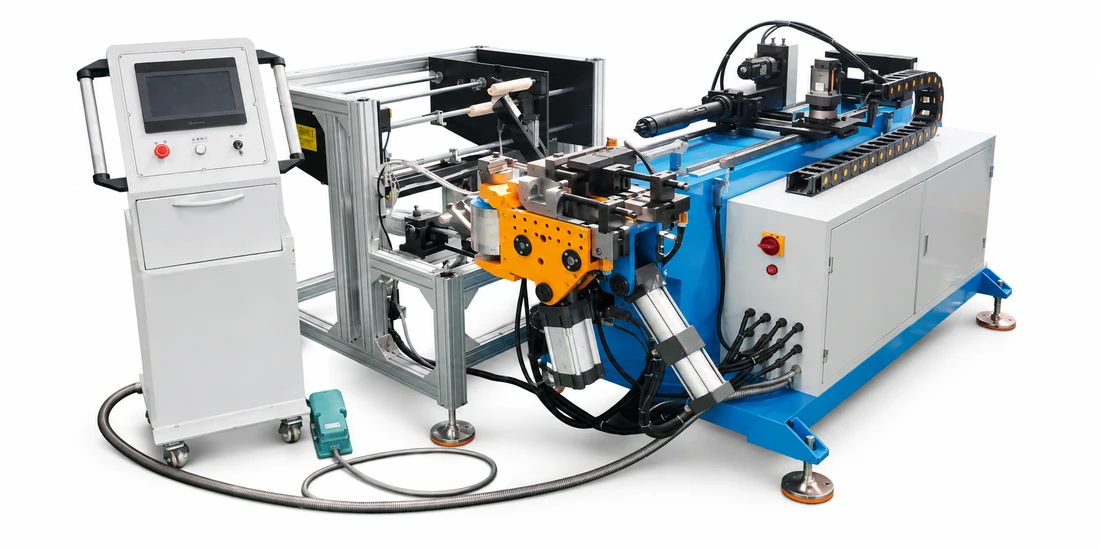

Automatic Loading Tube Bender

Integrated loading and bending workflow

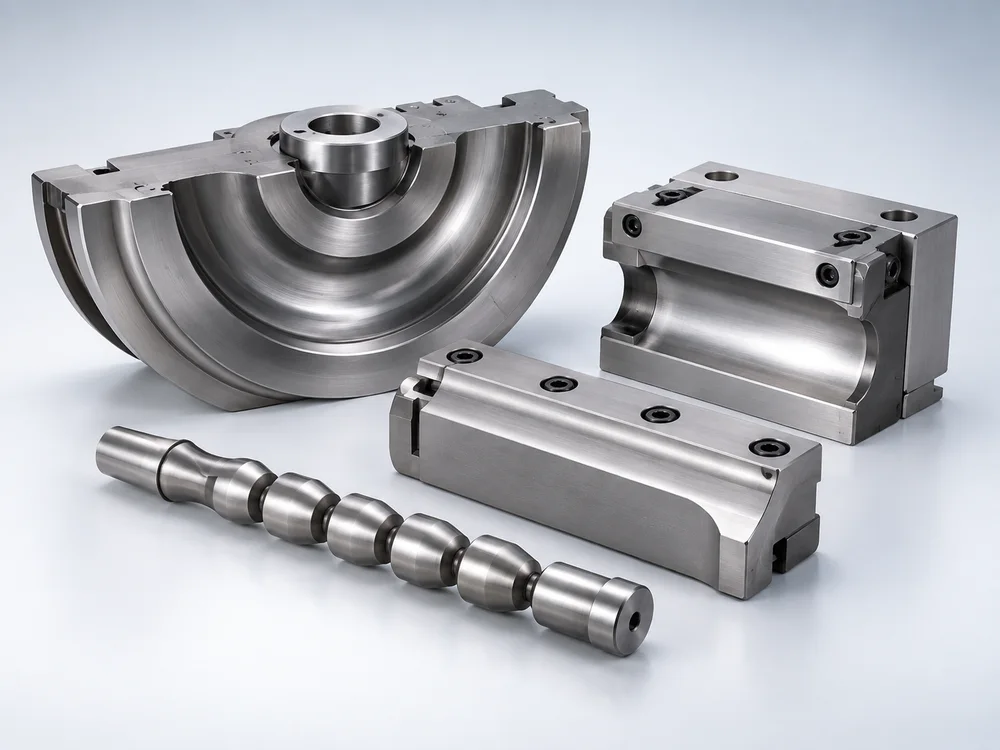

Bending die, clamp and mandrel tooling set

Tooling & Process Support

Bending die · Clamp die · Mandrel · Anti-wrinkle tooling

Explore Engineering →

What You Can Make

Start with the finished part. Define the right process.

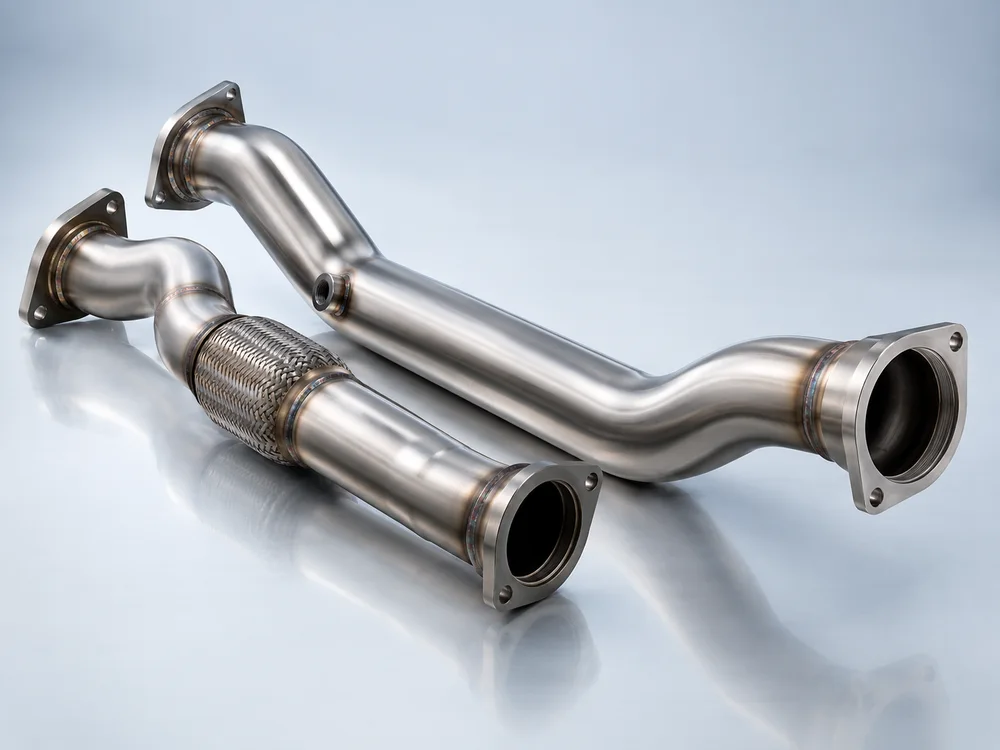

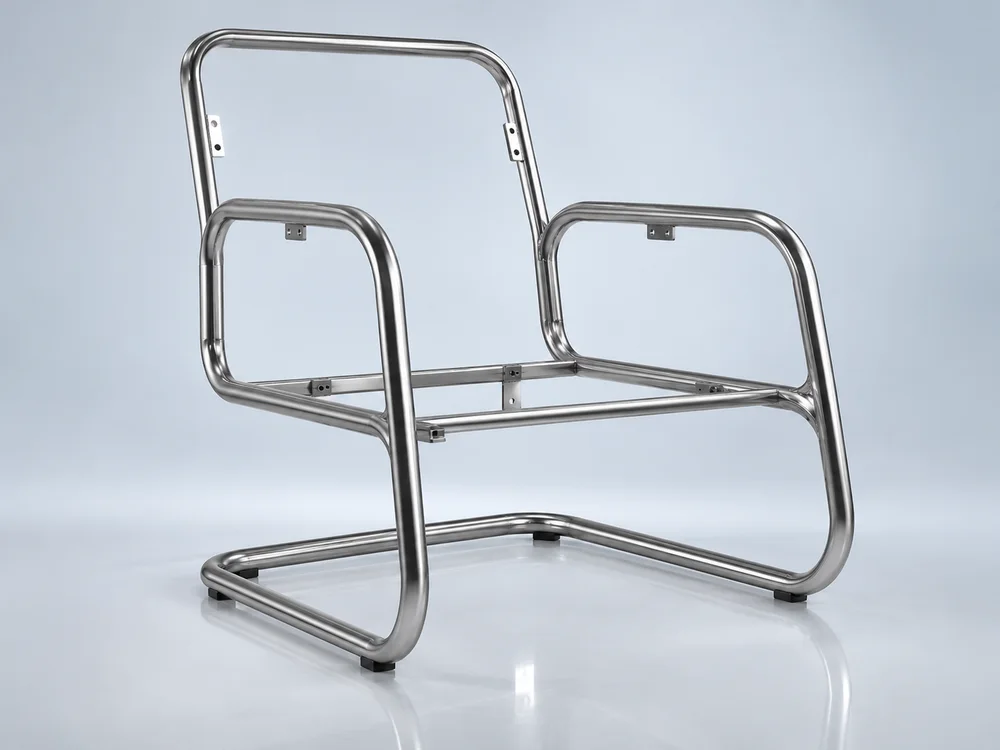

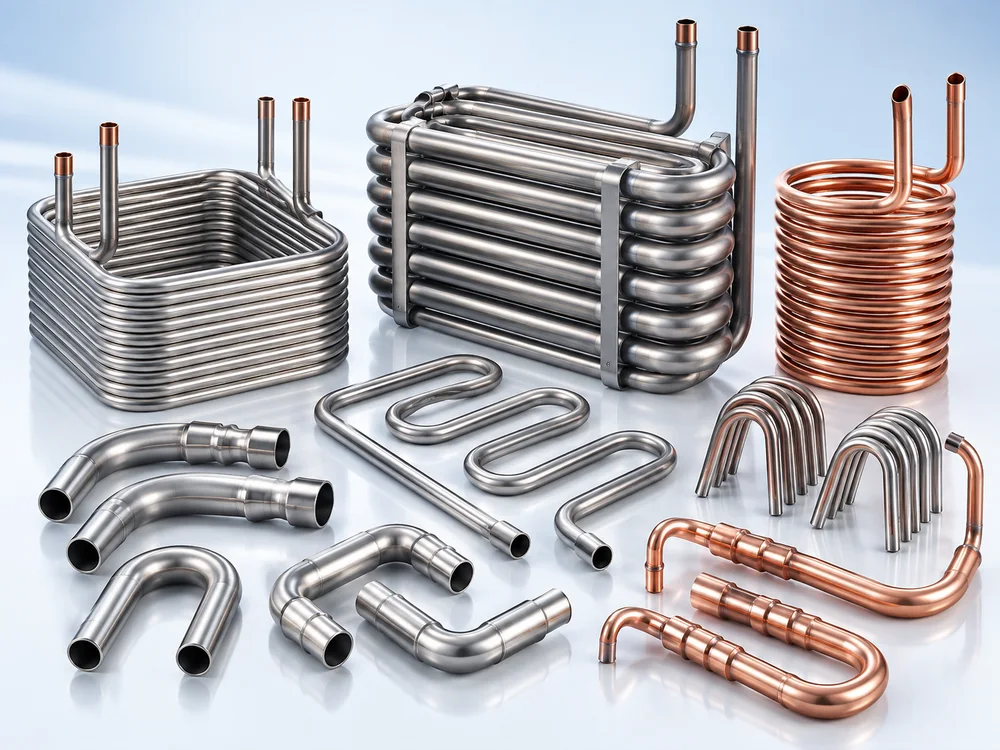

PROCESSED PARTS

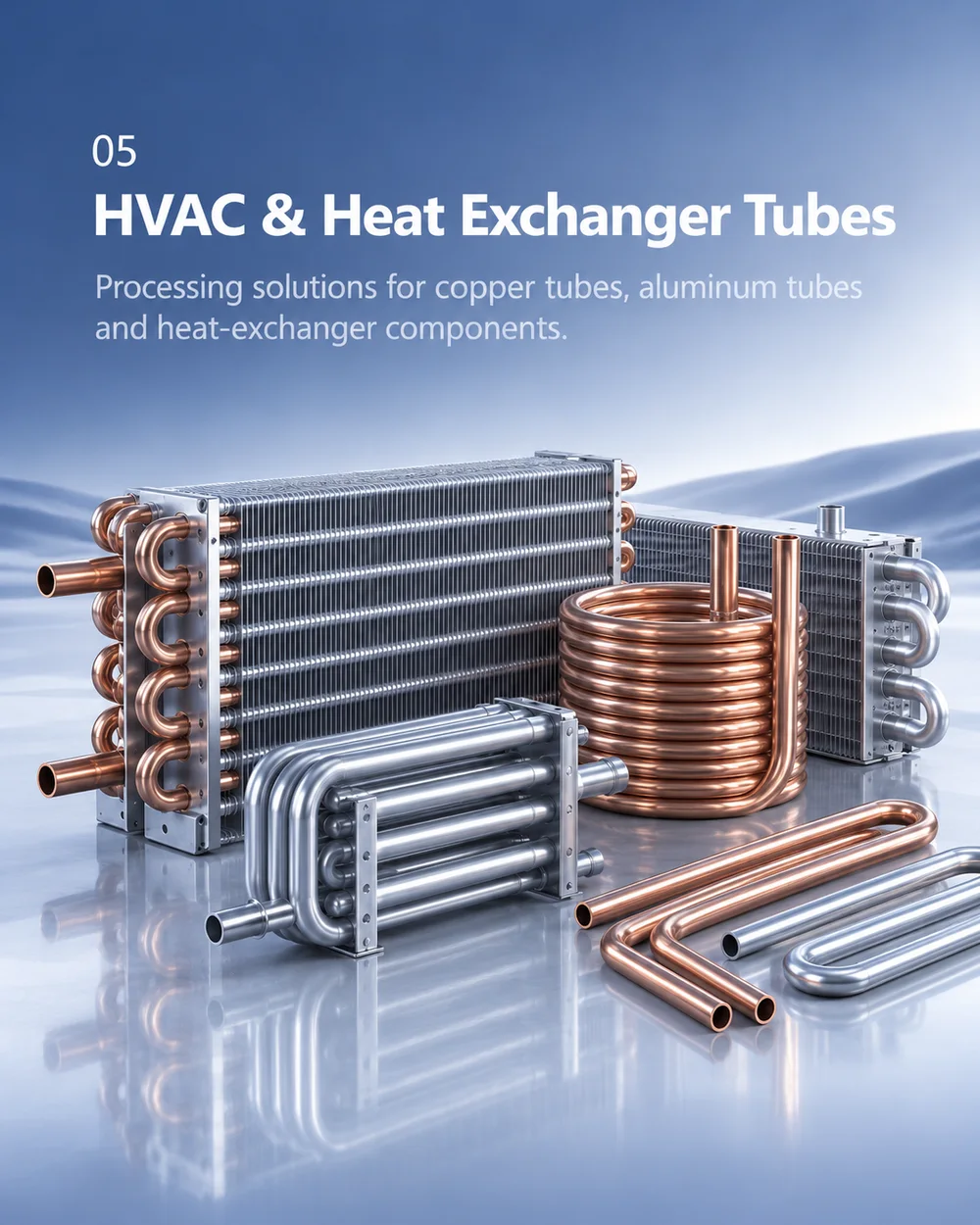

Main Applications

Tube processing solutions across multiple industries.

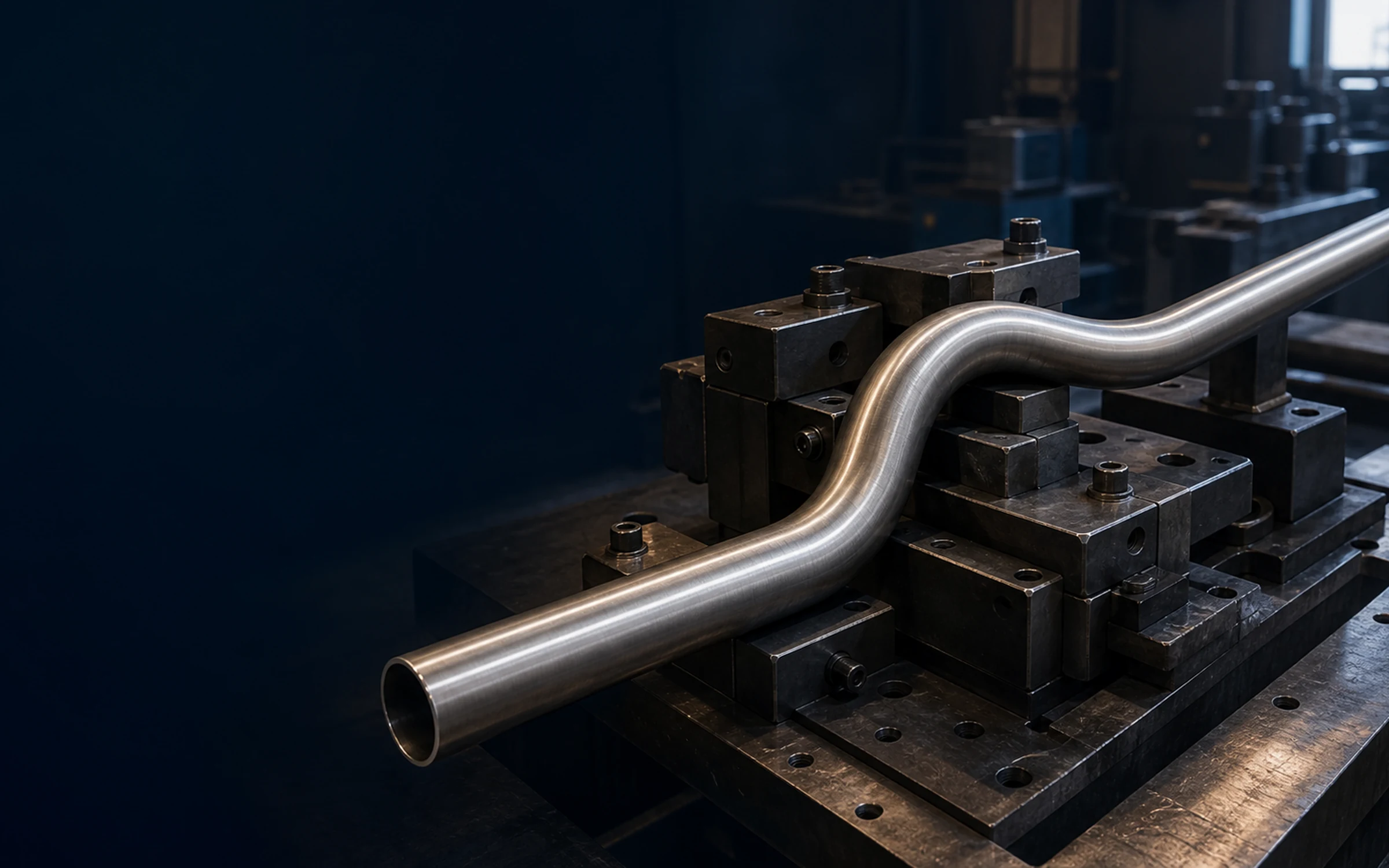

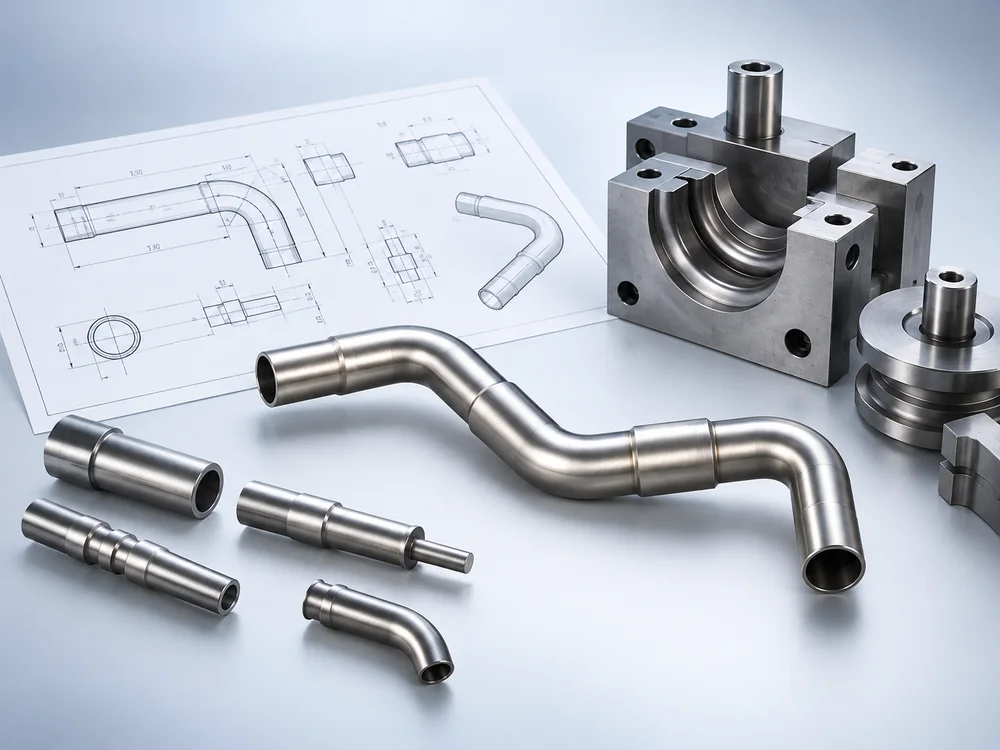

TOOLING & ENGINEERING

More Than a Machine

Machine selection, tooling design and process validation are reviewed together around your tube geometry.

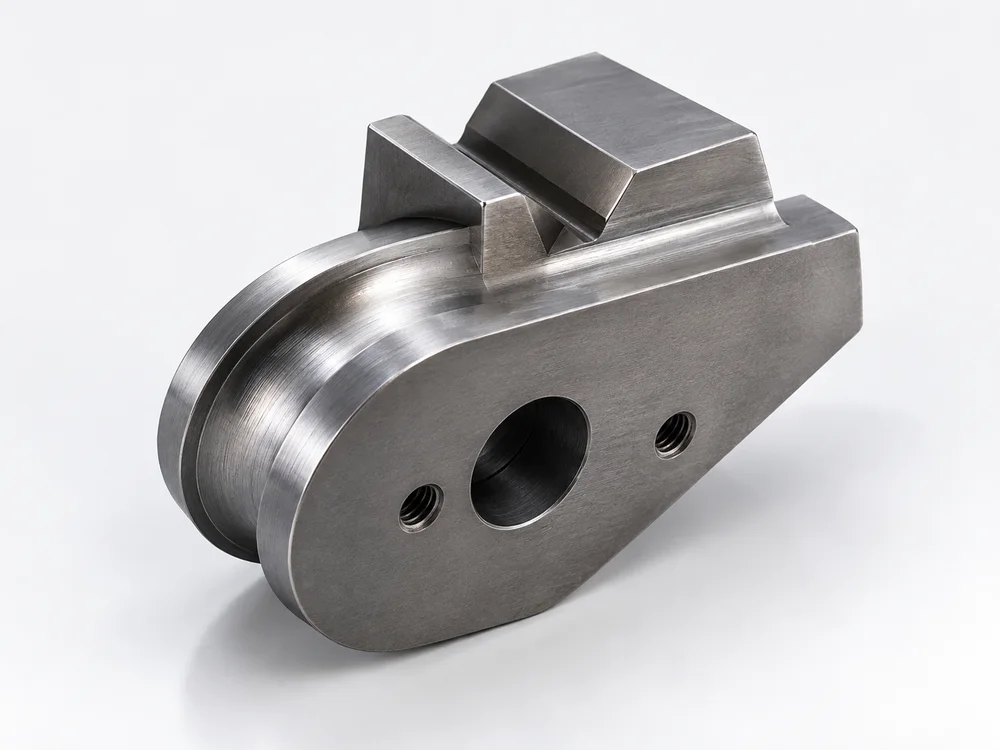

Bending Die

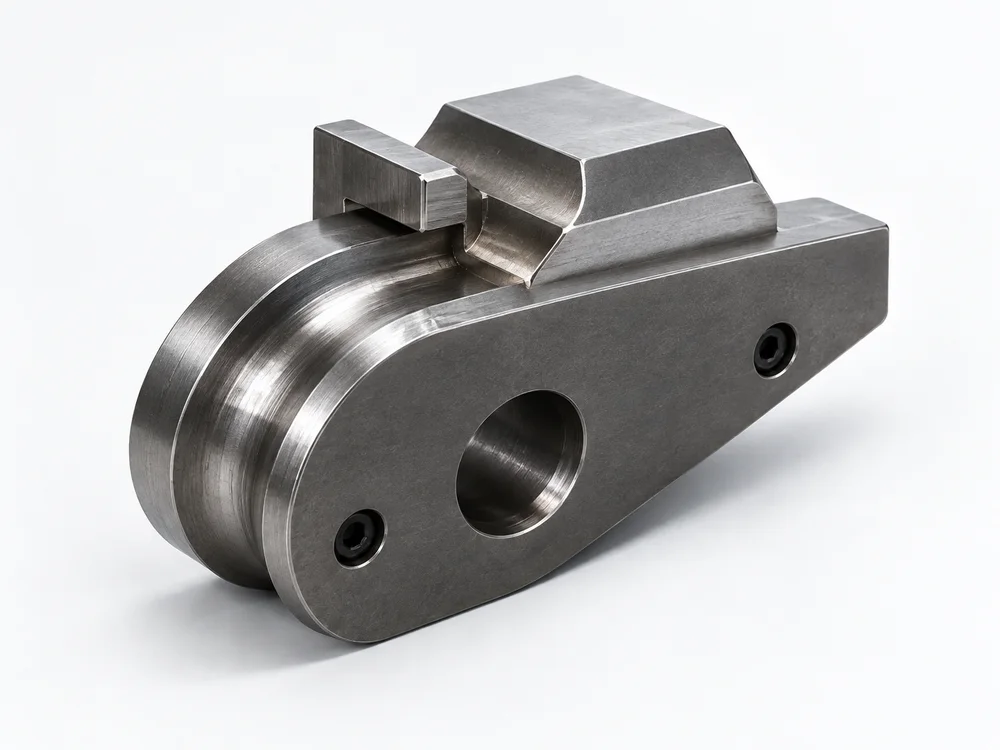

Clamp Die
Pressure / Slide Die

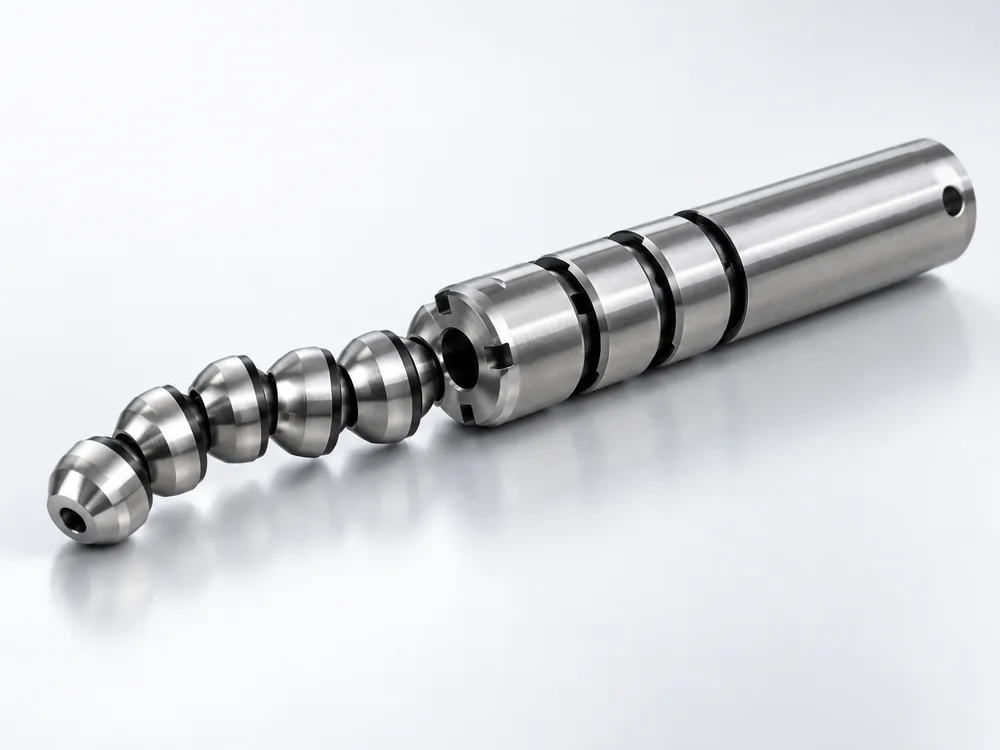

Mandrel
Anti-Wrinkle Tooling
Small-Radius Tooling

Start with your part.

Send your tube specifications and drawing. Our engineering team will review the process and recommend a suitable machine and tooling configuration.

Model	Tube Capacity (mm)	Max Radius	Max Angle	Max Feed Length (mm)	Max Bending Speed (°/s)	Max Turning Speed (°/s)	Max Feeding Speed (mm/s)	Bending Precision	System Pressure (MPa)	Machine Weight (kg)
RS-18CNC	Ø19.1 × 1.2	R120	190°	1800	180	200	1000	±0.1°	10	1200
RS-25CNC	Ø25.1 × 1.5	R160	190°	2000	150	200	1000	±0.1°	12	1300
RS-38CNC	Ø39.1 × 2	R180	190°	2200	150	200	1000	±0.1°	12	1500

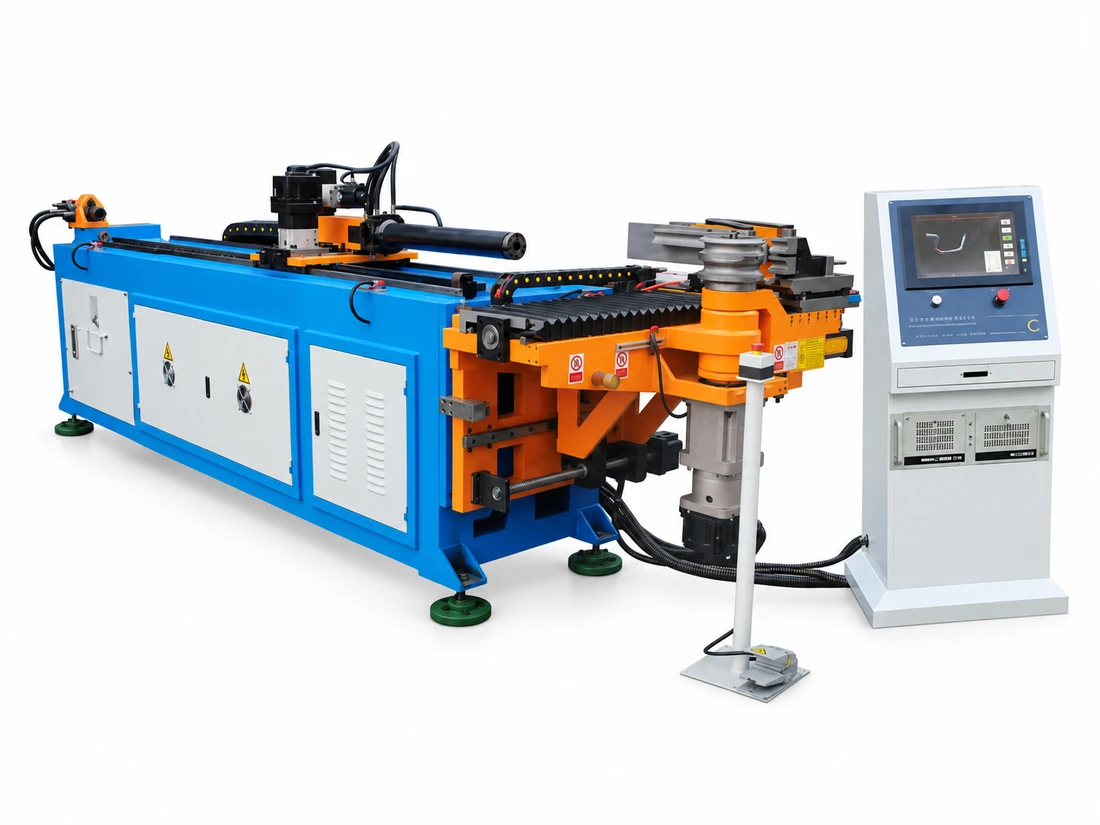

RS-50CNC	Ø51.1 × 3	R250	190°	2500	85	200	1000	±0.1°	12	2500
RS-63CNC	Ø65.1 × 4	R250	190°	3000	85	200	1000	±0.1°	12	3000
RS-75CNC	Ø76.1 × 4	R300	190°	3000	40	160	800	±0.1°	12	4500
RS-89CNC	Ø90.1 × 6	R300	190°	3000	30	160	800	±0.1°	14	5500
RS-114CNC	Ø120.1 × 8	R450	190°	3000	30	160	800	±0.1°	14	6800
RS-130CNC	Ø133.1 × 8	R450	190°	3000	30	160	800	±0.1°	14	7800
RS-168CNC	Ø169.1 × 14	R600	190°	3500	30	160	800	±0.1°	14	12000
RS-219CNC	Ø220.1 × 16	R800	190°	4000	25	80	600	±0.2°	14	22000
RS-273CNC	Ø275.1 × 20	R800	190°	4000	25	80	500	±0.2°	14	25000
RS-325CNC	Ø325.1 × 30	R1200	190°	5000	20	80	500	±0.2°	14	38000

Model	Tube Capacity (mm)	Max Bend Radius	Min Radius	Max Bend Angle	Standard Core Length (mm)	Control	Hydraulic Motor (kW)	Max Pressure (MPa)	Weight (kg)
RS-38NC	Ø38 × 2	R260	≥1.5D	190°	1600	Microcomputer	4	12	750
RS-63NC	Ø63 × 4	R350	≥1.5D	190°	2600	Microcomputer	5.5	12	1500
RS-89NC	Ø89 × 6	R450	≥1.5D	190°	3500	Microcomputer	11	14	3500
RS-130NC	Ø130 × 8	R520	≥1.5D	190°	4500	Microcomputer	22	14	8000
RS-219NC	Ø219 × 16	R800	≥1.5D	190°	6000	Microcomputer	30	16	20000

Model	Hydraulic Motor (kW)	Max Oil Pressure (kg/cm²)	Max Applicable Carbon Steel Tube	Applicable Bend Radius (mm)	Double Bend Center Range (mm)	Max Bend Angle
SW-38	4	140	Ø38 × 1.8t	38–200	170–1450	185°
SW-50	5.5	140	Ø50 × 2t	45–300	190–1650	185°

Model	Max Bending Pipe Capacity	Small Bend Radius (mm)	Die Diameter (mm)
JW-38	Ø38 × 1.5	200	80
JW-50H	Ø38 × 1.5	200	80
JW-80H	Ø50 × 1.5	350	80

Model	Main Motor (kW)	Applicable Saw Blade	Cooling Pump	Max Clamp Opening (mm)	Compressed Air	Weight (kg)
MC-275B	1.8 / 1.3	Ø250 / Ø275	90 W	70	4–6 kg	220
MC-315B	1.8 / 1.3	Ø250 / 275 / 315	90 W	90	4–6 kg	240
MC-375B	2.2 / 1.8	Ø250 / 275 / 315 / 350	90 W	100	4–6 kg	350
MC-425Q	2.2 / 1.8	Ø250 / 275 / 315 / 350 / 400	90 W	120	4–6 kg	390

Model	Variants	Blade Drive	Blade Speed	Feed Stroke	Servo Motor	Pull Tail Stroke	Cooling Pump	Hydraulic Pump	Oil Working Pressure	Machine Size (mm)	Weight (kg)
RS-375-CNC	Vertical clamp / Horizontal clamp	3.0 / 4.0 kW; 380V / 50Hz	60 / 120 RPM	1500 mm / cycle	1000 W	150 mm	90 W	2.2 kW	10–50 kg	3500 × 1100 × 1700	1350
RS-425-CNC	Vertical clamp / Horizontal clamp	3.0 / 4.0 kW; 380V / 50Hz	60 / 120 RPM	1500 mm / cycle	1000 W	150 mm	90 W	2.2 kW	10–50 kg	3500 × 1100 × 1700	1350

Model	Max Tube Diameter (mm)	Max Tube Length (mm)	Motor (kW)	Forming Time (sec / cycle)
ZS-16	Ø16	60	1.5	3–12
ZS-22	Ø25	150	3	6–20
ZS-38	Ø38	300	4	7–13
ZS-50	Ø50	300	5.5	7–30
ZS-76	Ø76	300	7.5	7–30

Model	Main Motor	Approx. Tube Range	Air Pressure (kg/cm²)	Net Weight (kg)	Gross Weight (kg)
RS-50	2 HP × 4P	Up to Ø50 mm	6–8	160	210
RS-60	3 HP × 6P	Up to Ø60 mm	6–8	220	270
RS-80	3 HP / 1.5 HP × 2/4P	Up to Ø80 mm	6–8	280	360
RS-120	5 HP / 3 HP × 2/4P	Up to Ø120 mm	6–8	350	400

Tube Processing Equipment& Solutions

Find your bending solution

CNC Tube Bending Machines

NC Hydraulic Tube Bending Machines

Single / Double Head Bending Machines

JW Series Roll Bending Machines

Automatic Loading Tube Bender

Tooling & Process Support

What You Can Make

Main Applications

More Than a Machine

Start with your part.

Find your cutting solution

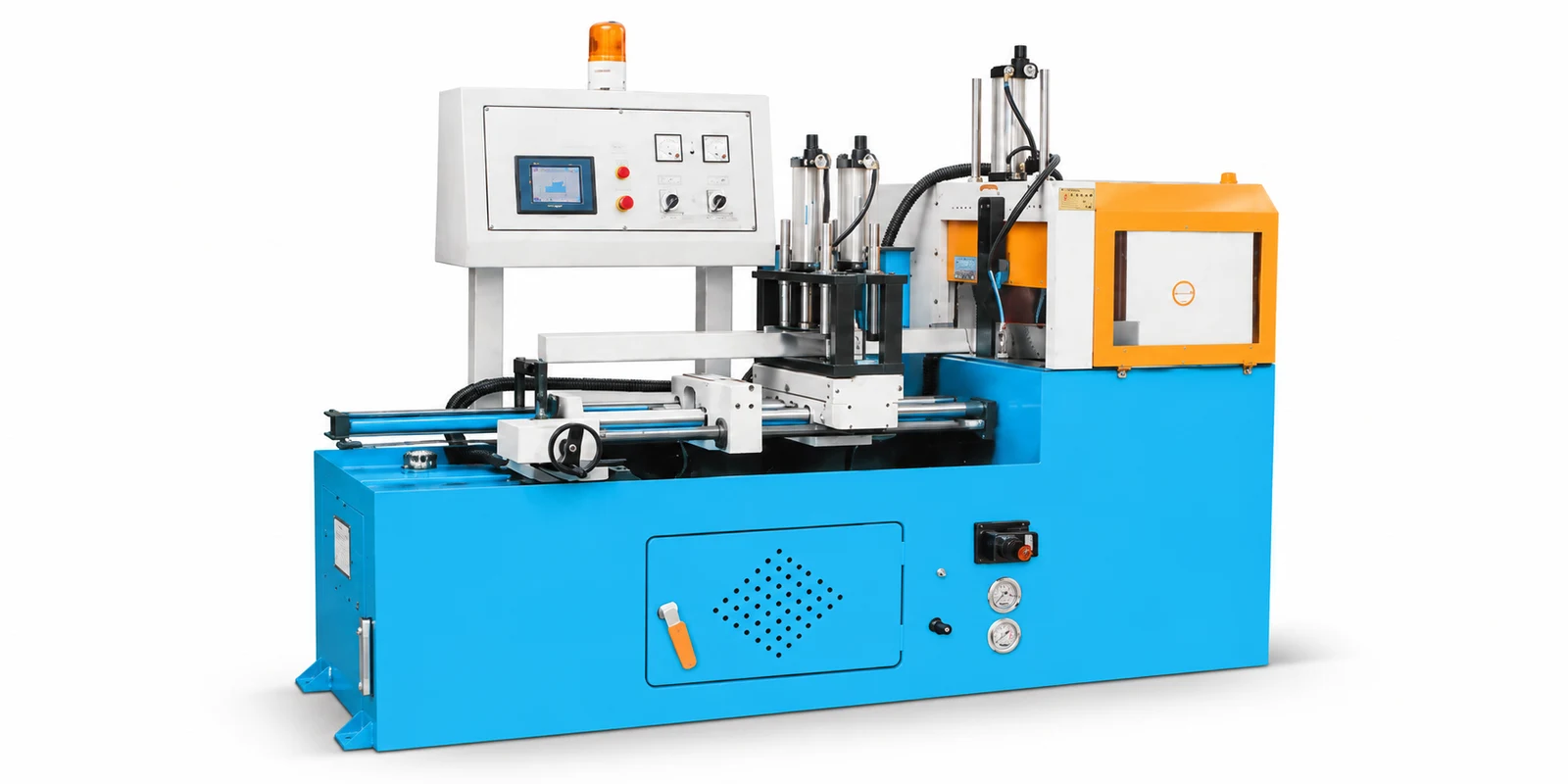

MC Series Semi-Automatic Cutting

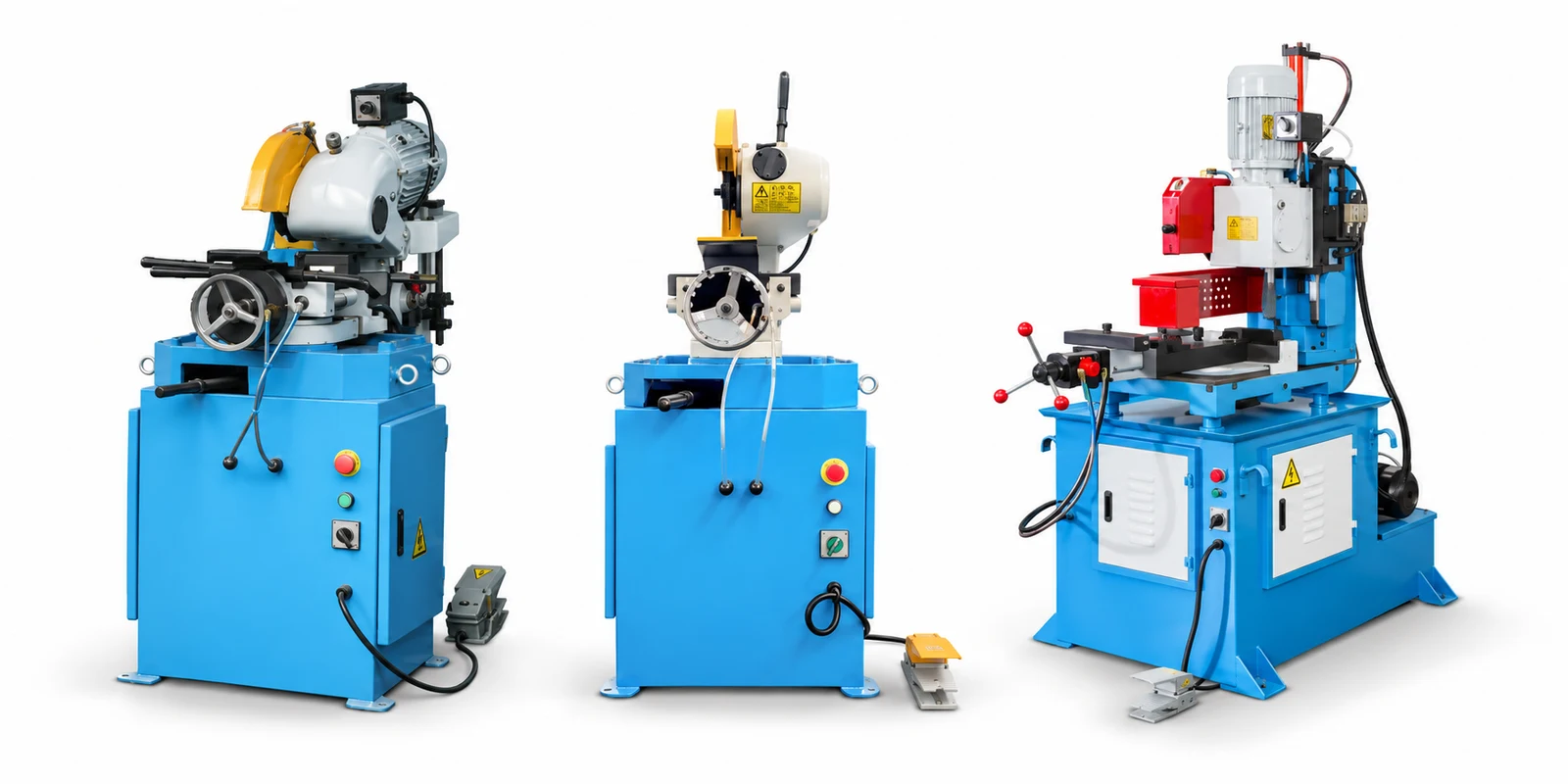

Automatic Circular Saw Machines

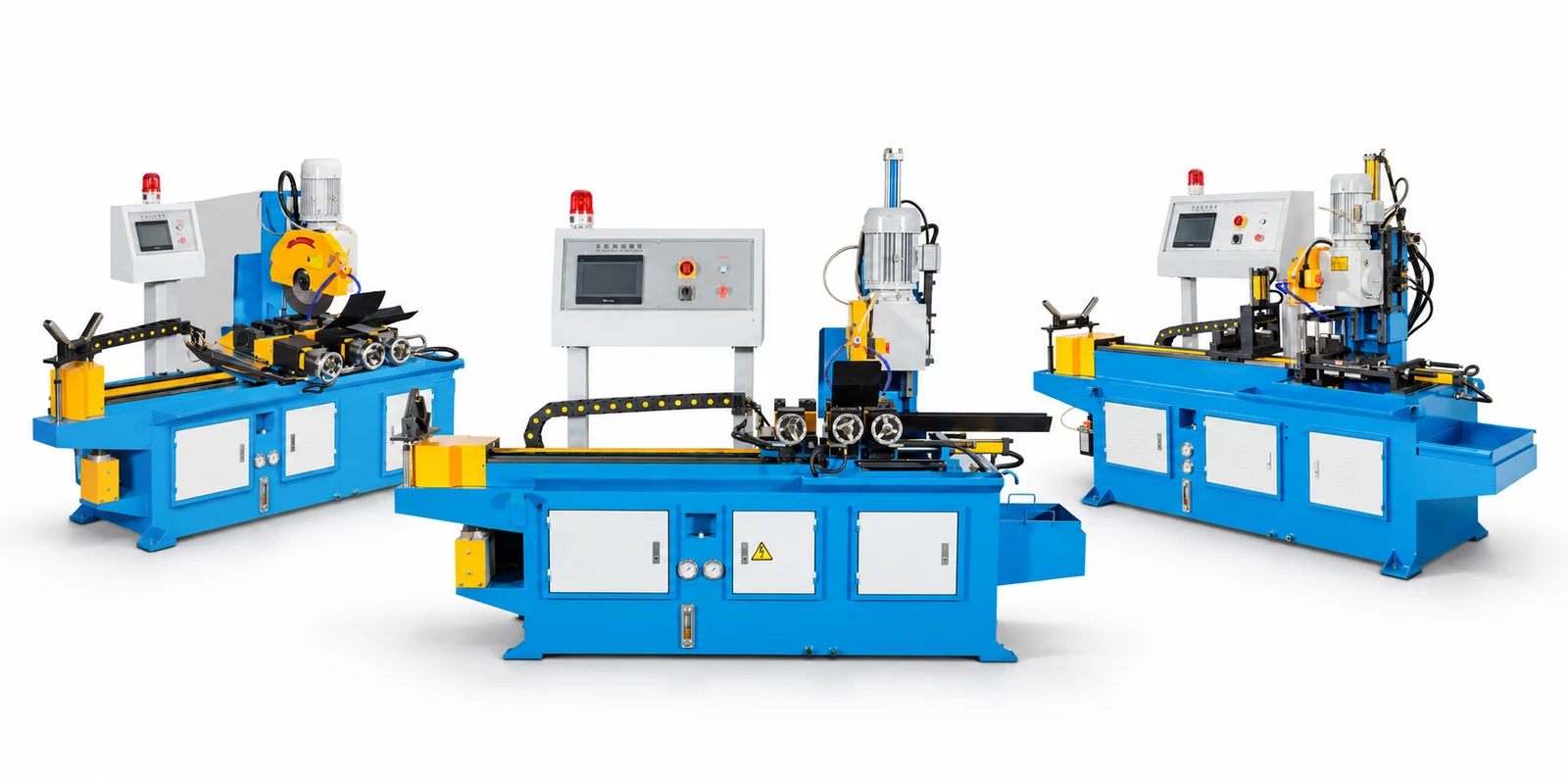

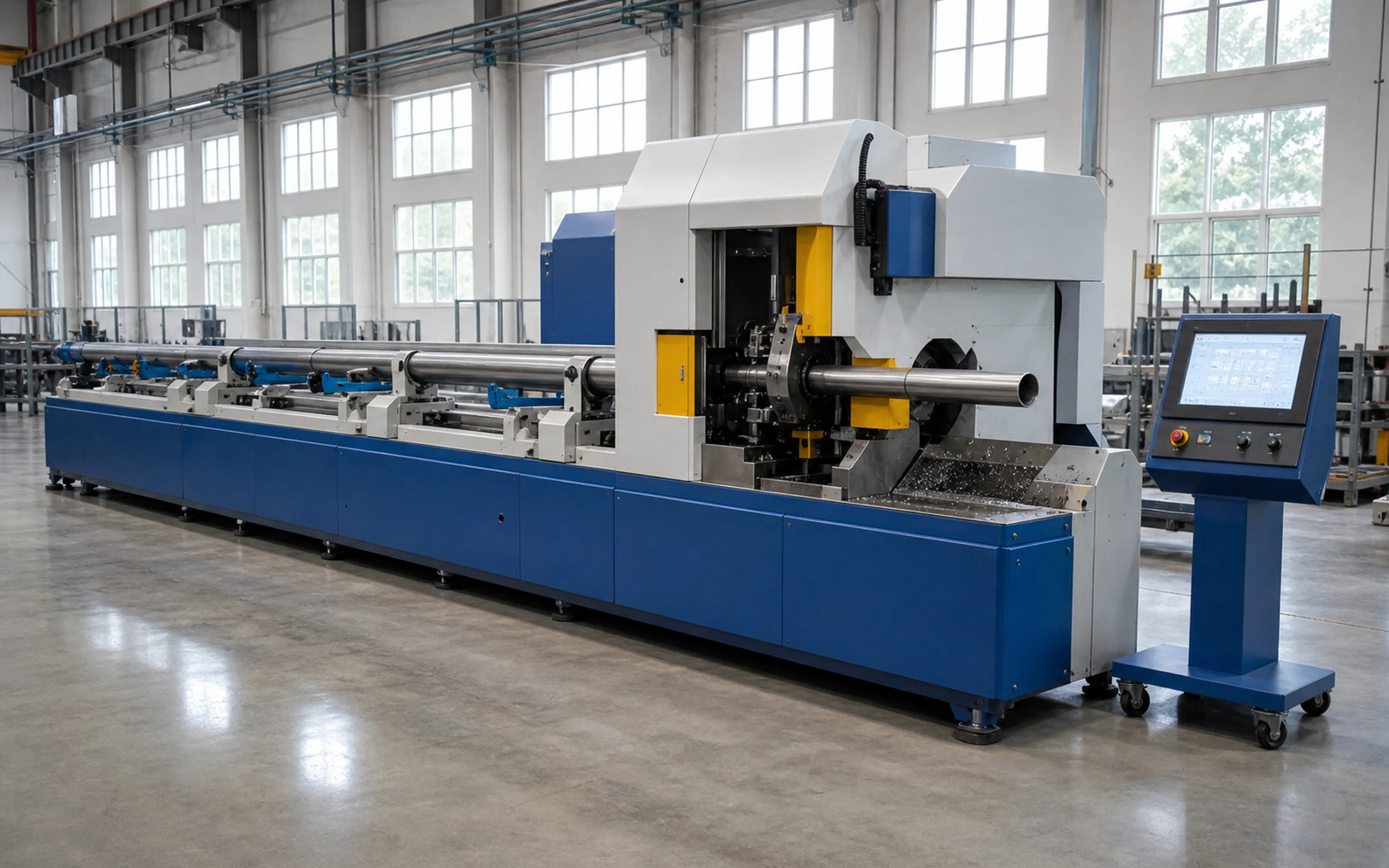

CNC Automatic Tube Cutting Machines

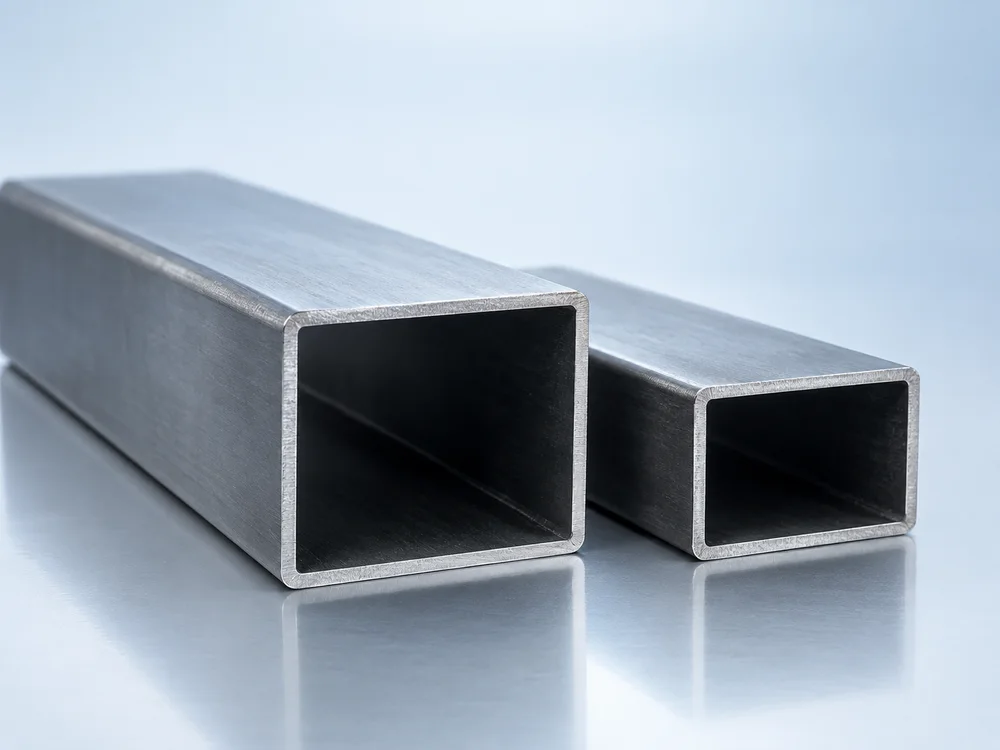

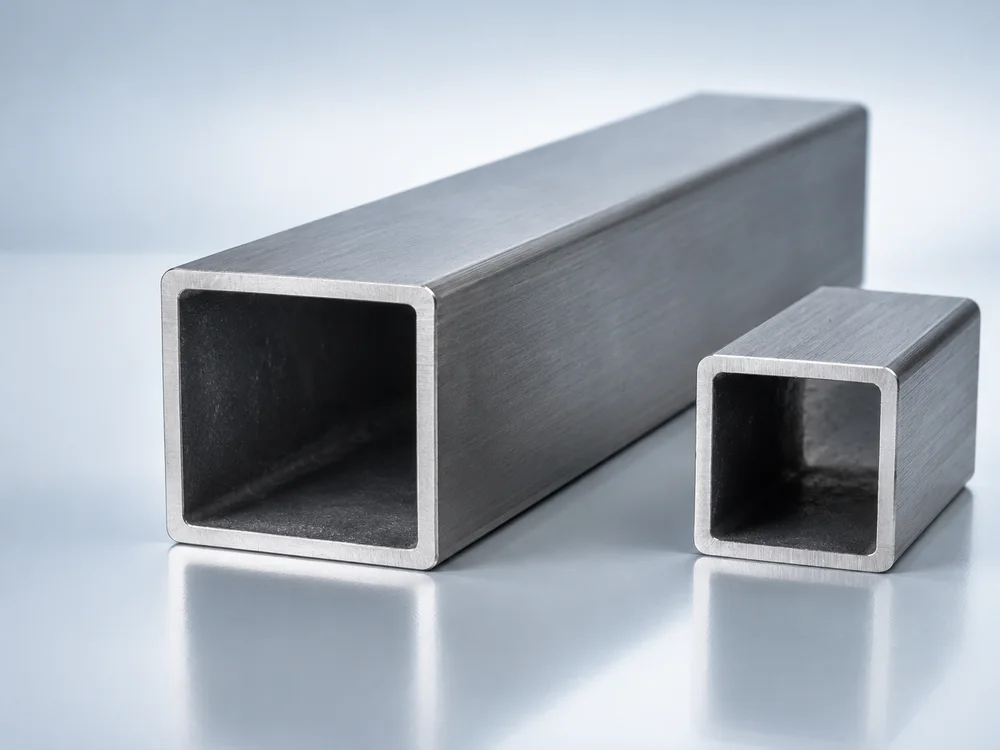

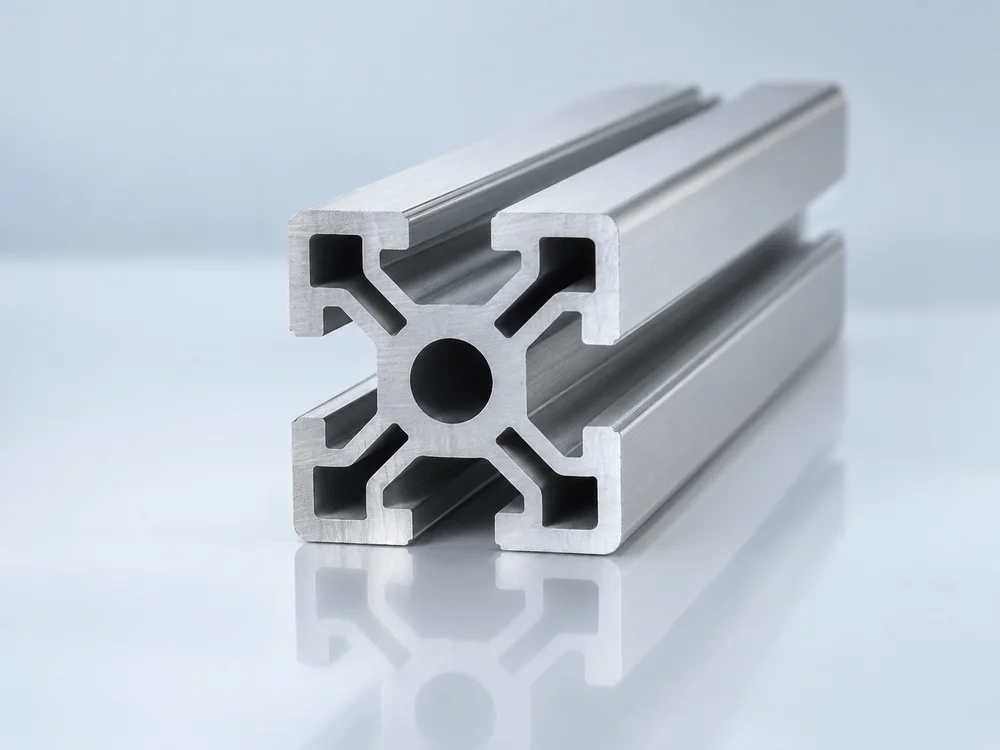

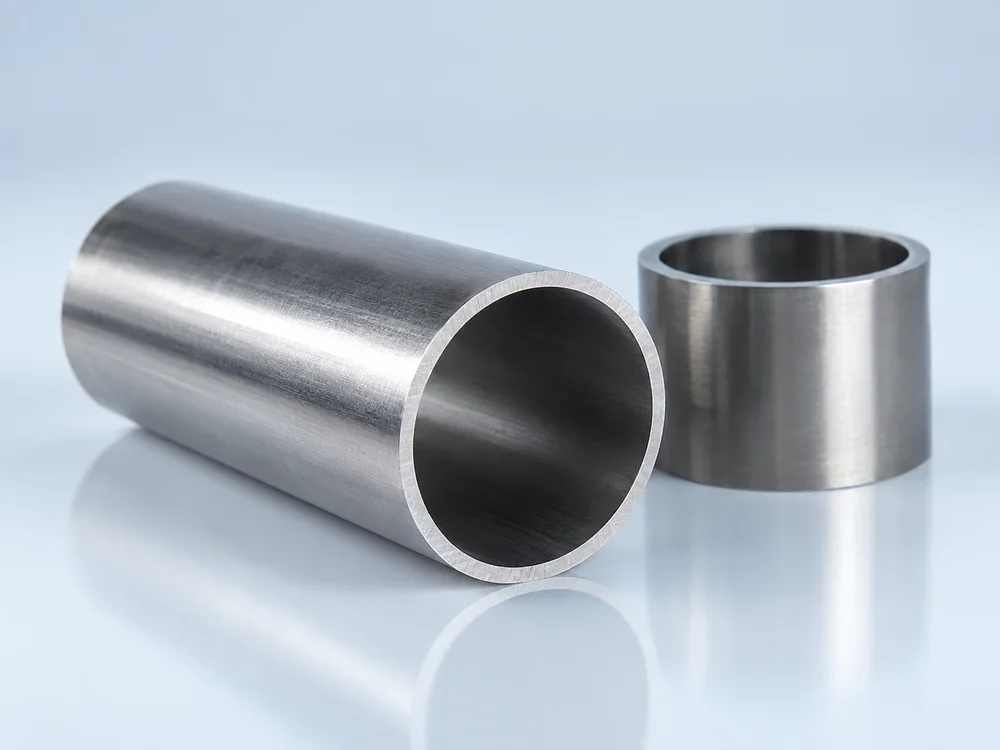

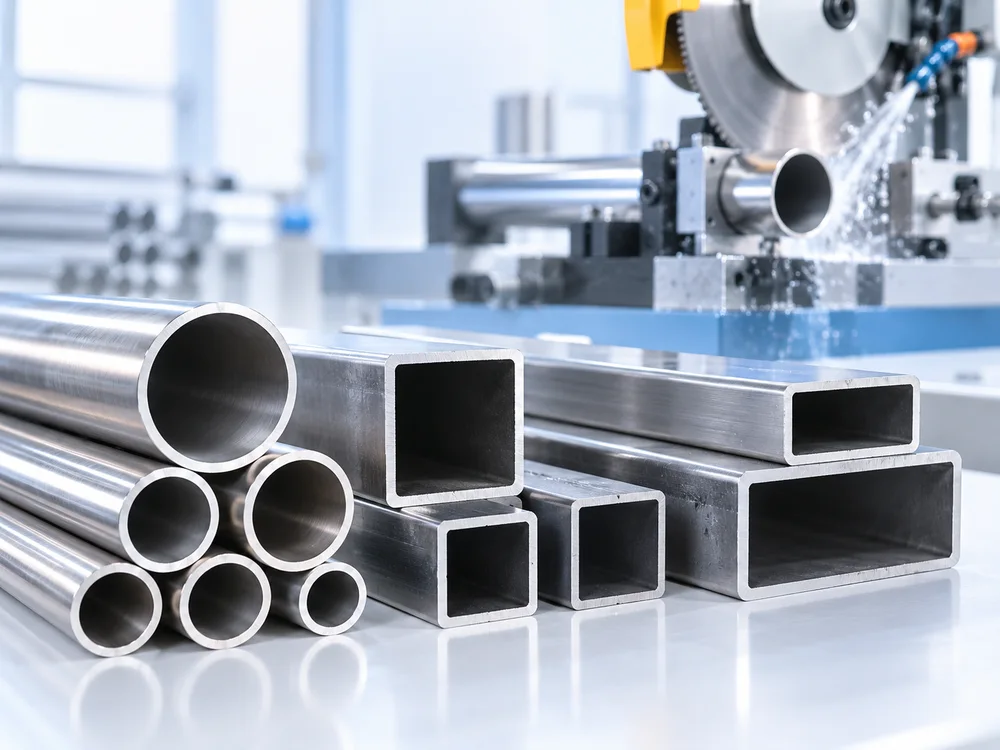

Cutting Results

Main Applications

Start with your part.

Find your end forming solution

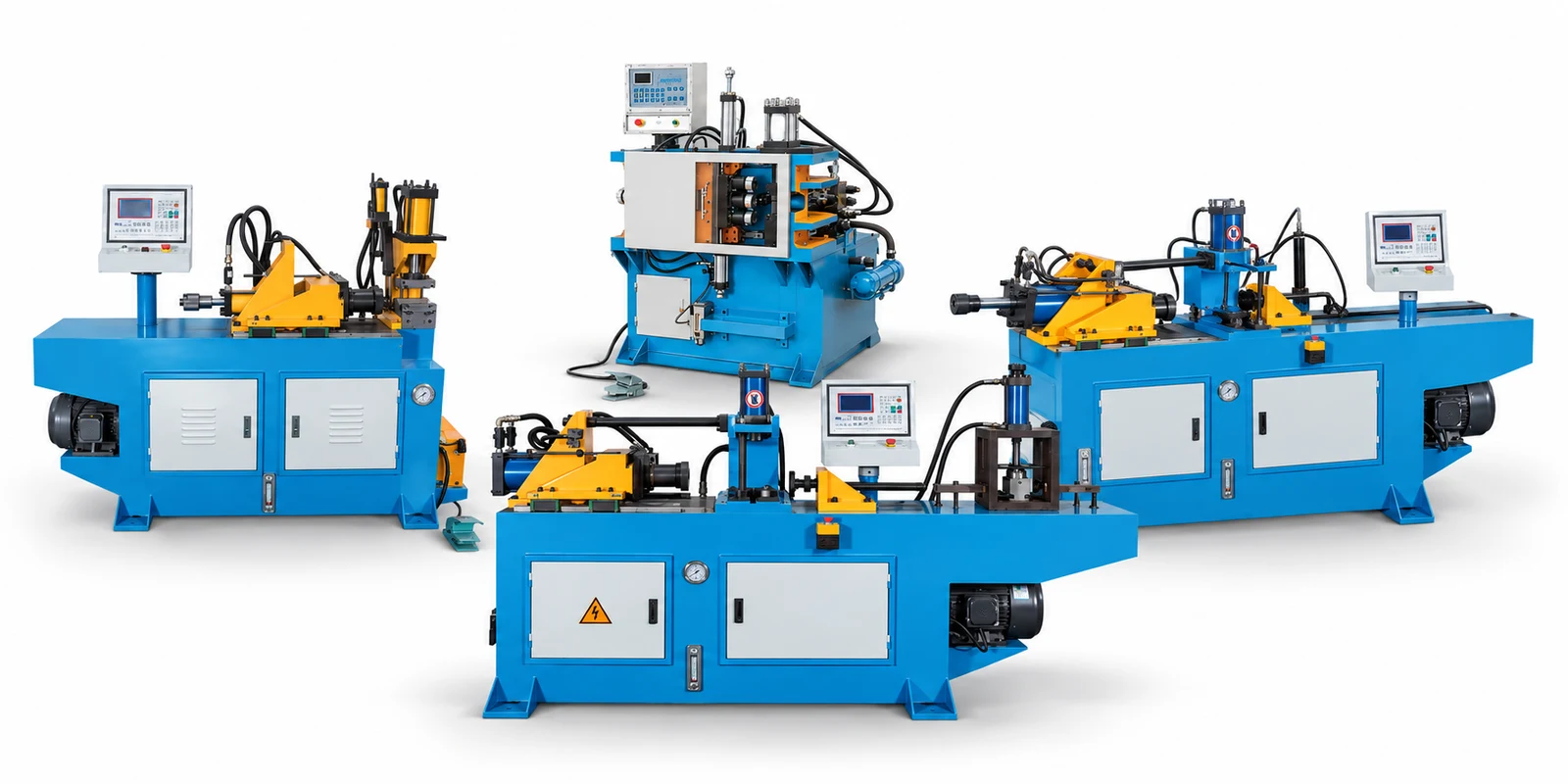

TM Series End Forming / Shrinking

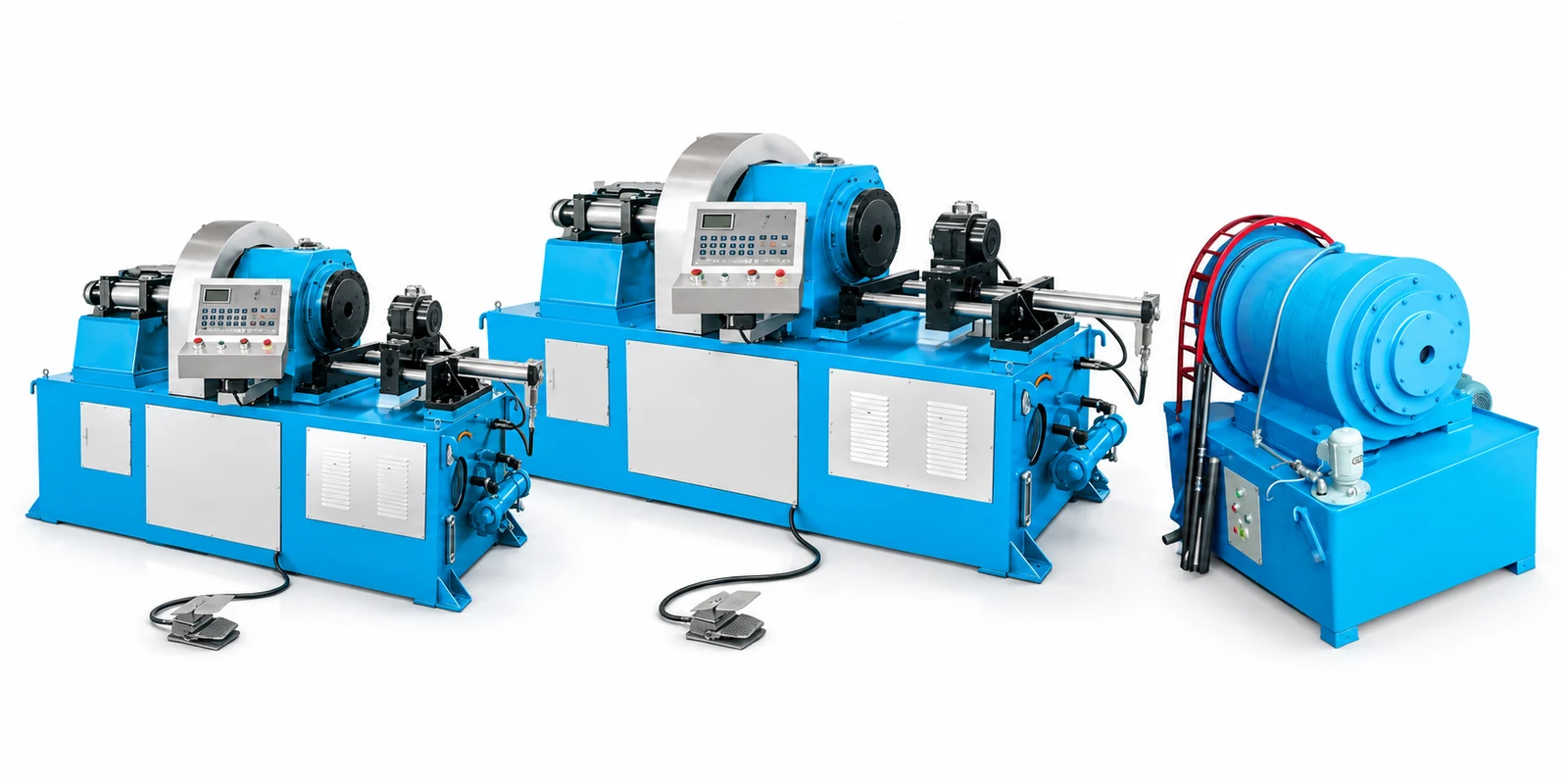

ZS Series Swaging / Shrinking

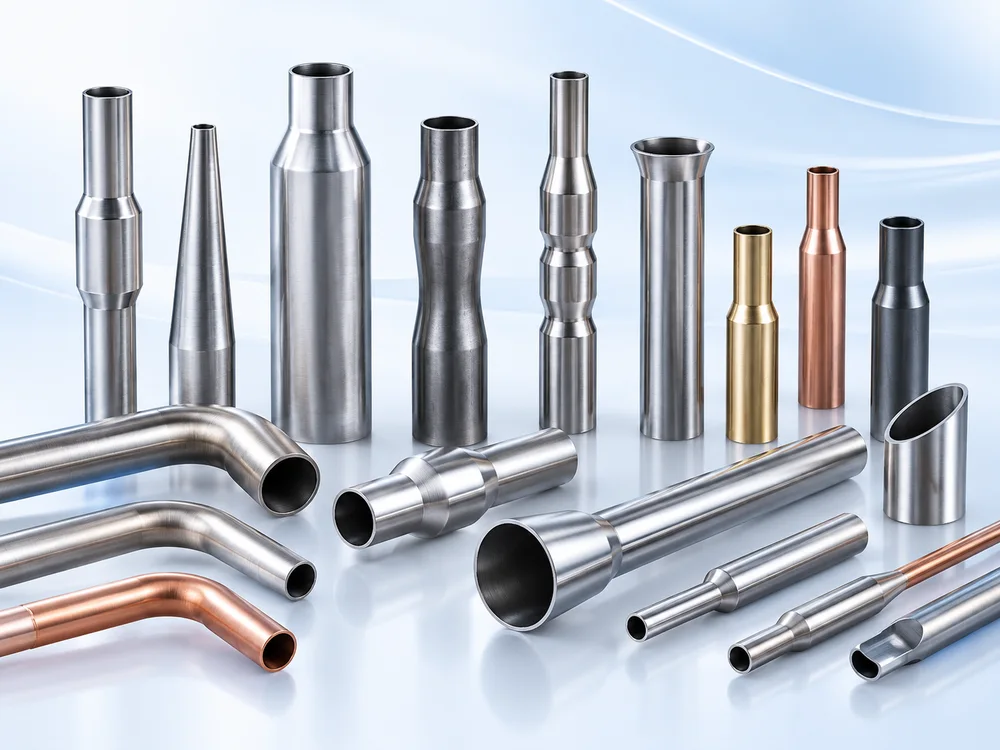

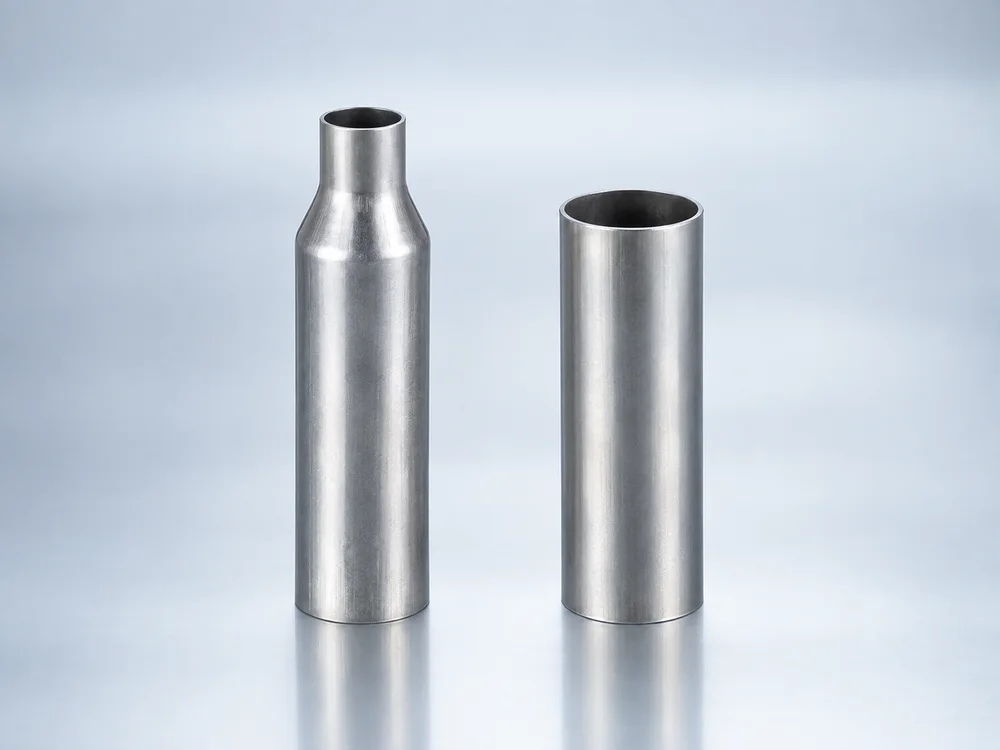

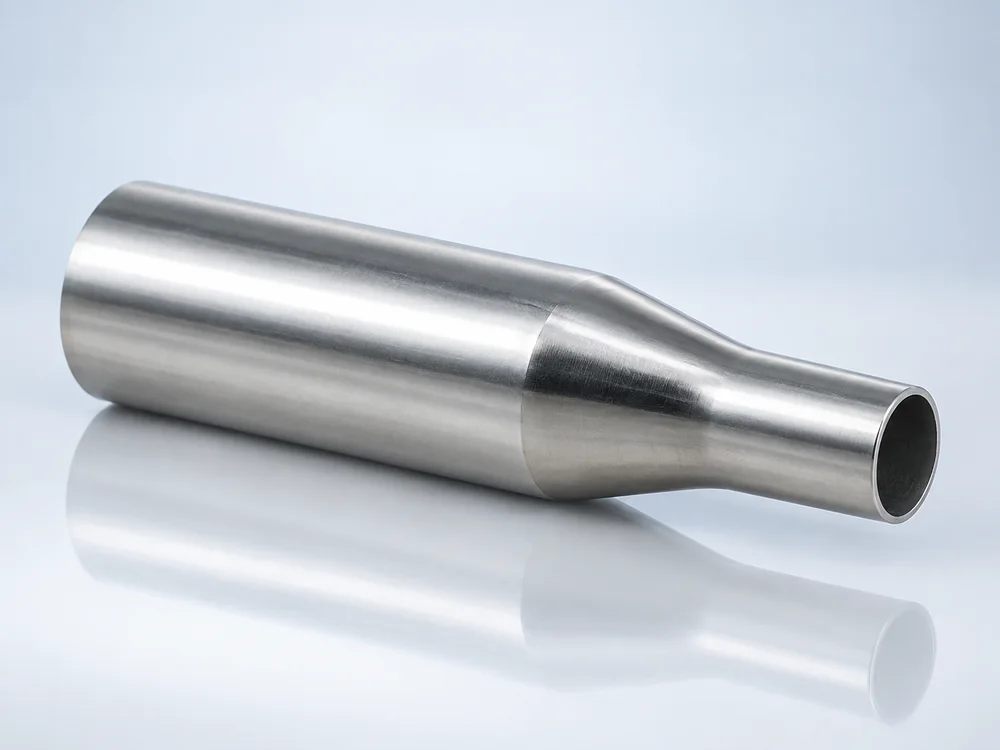

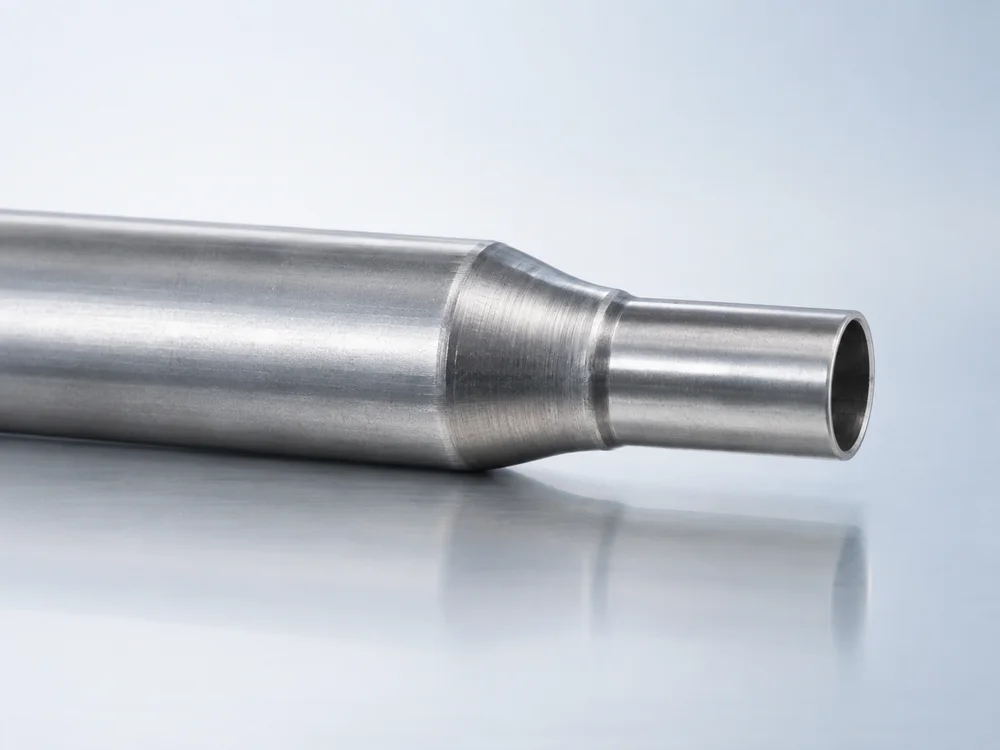

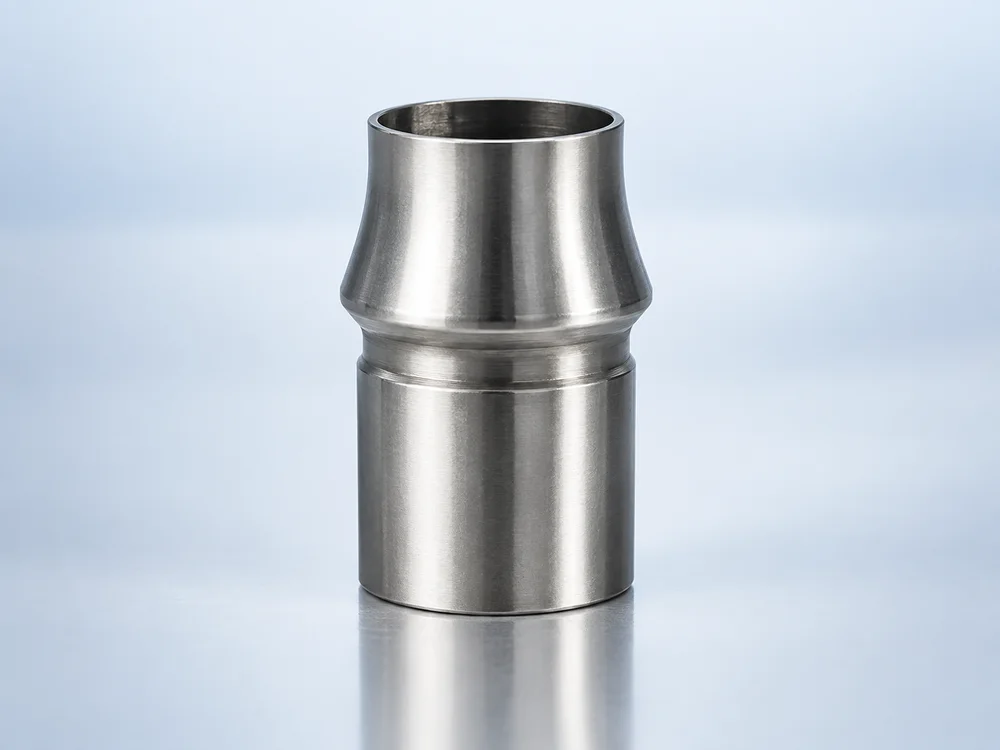

End Forming Results

Main Applications

Start with your part.

Find your chamfering solution

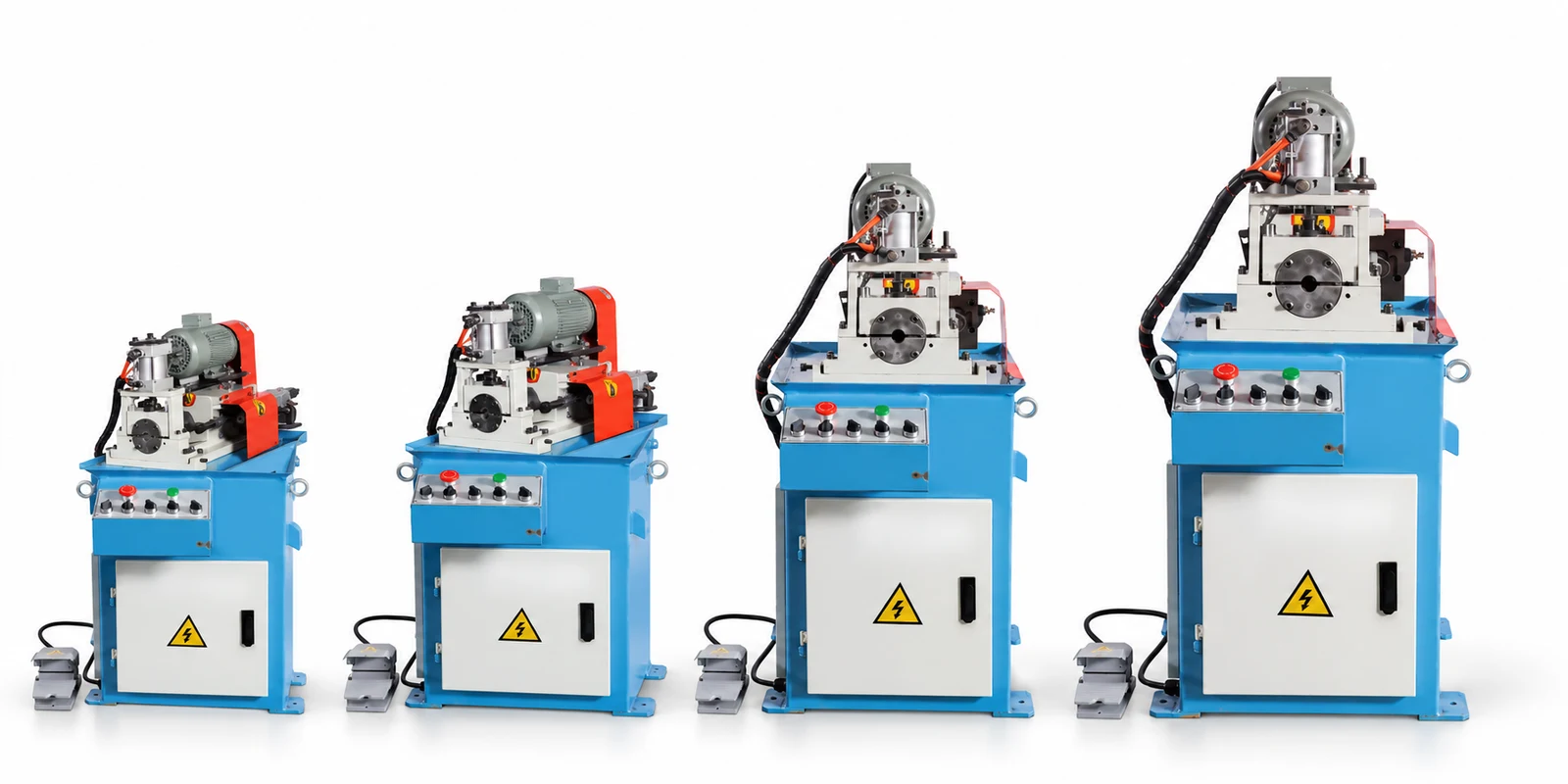

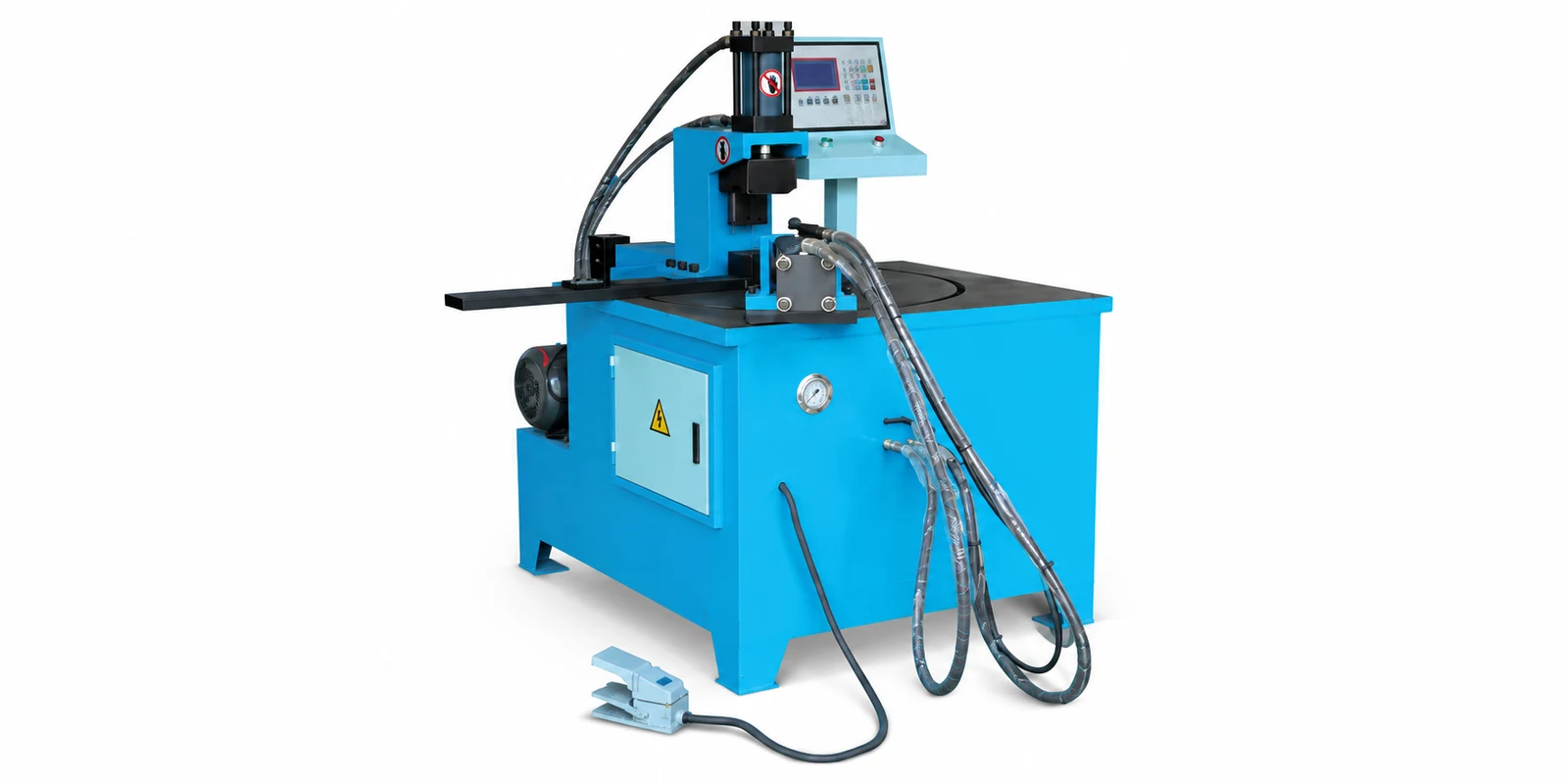

RS Series Semi-Automatic Chamfering

Automatic Chamfering Machines

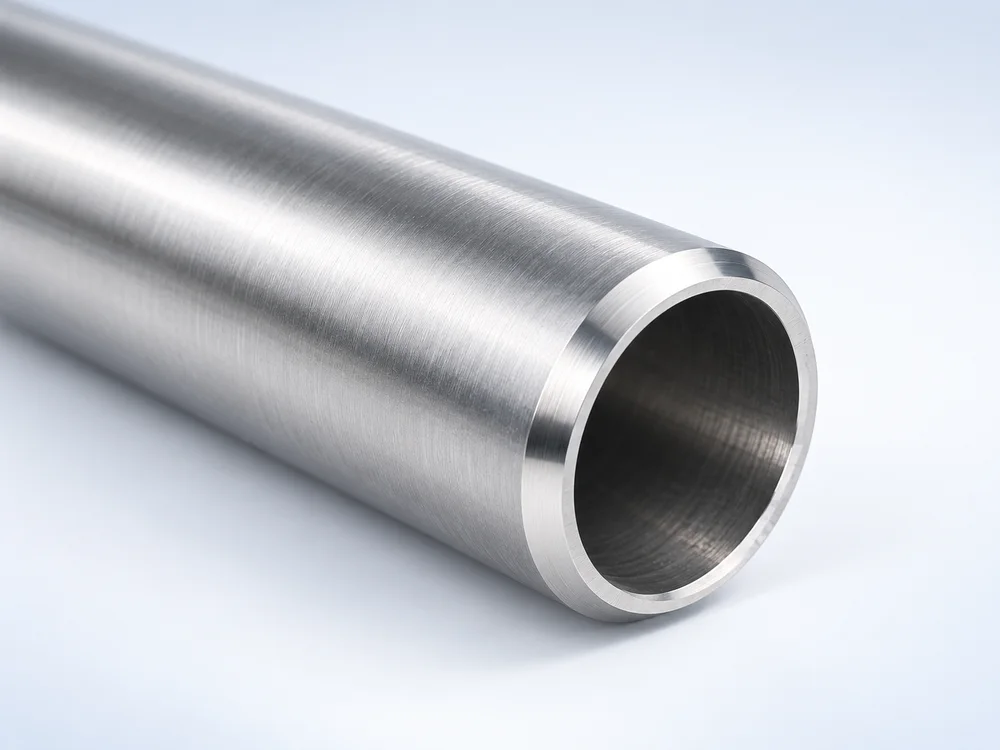

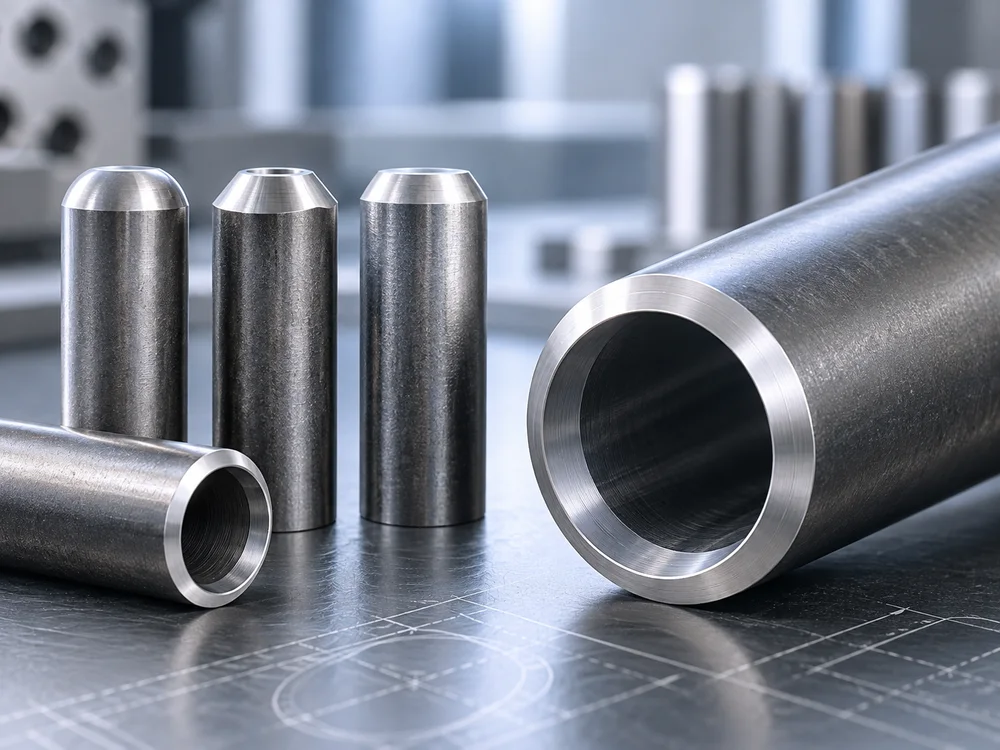

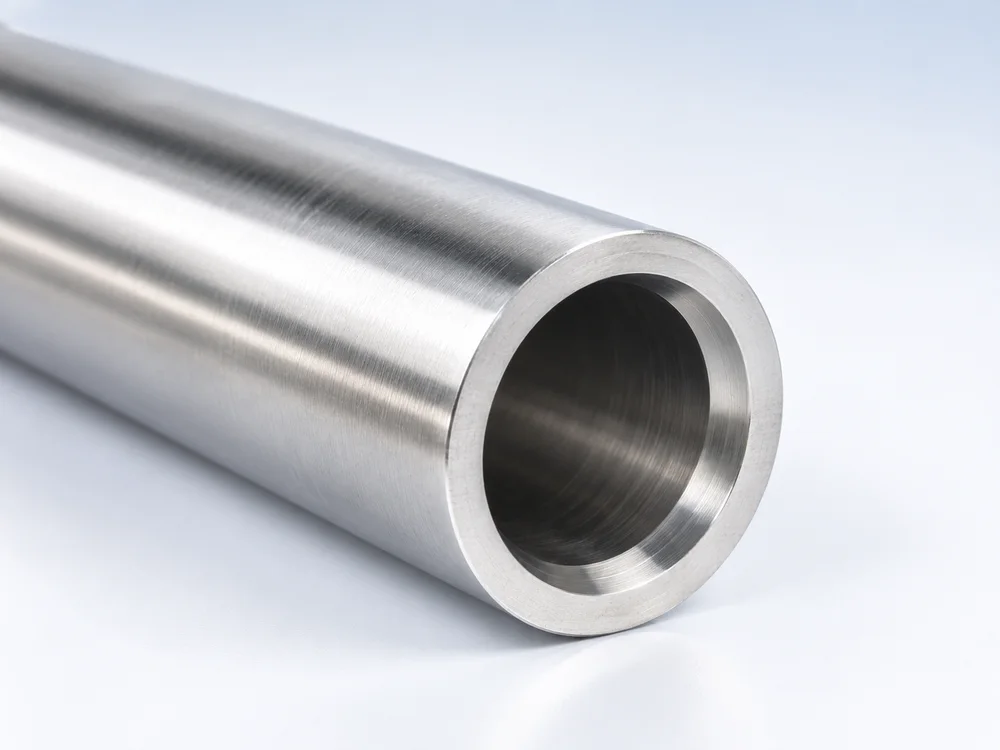

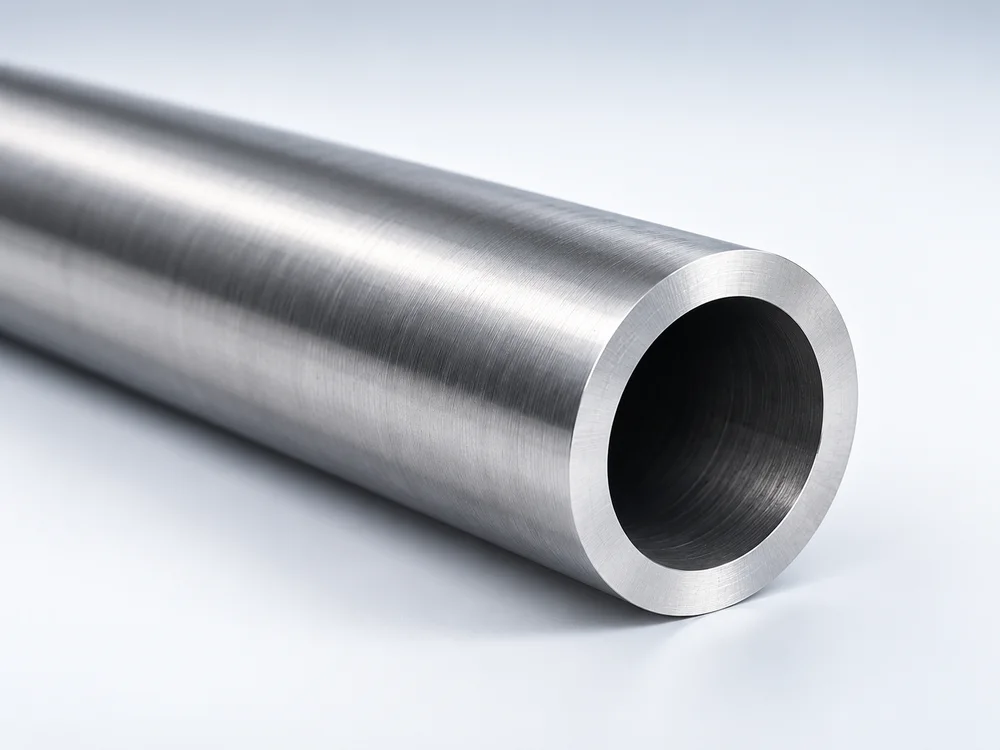

Chamfering Results

Main Applications

Start with your part.

Find your processing solution

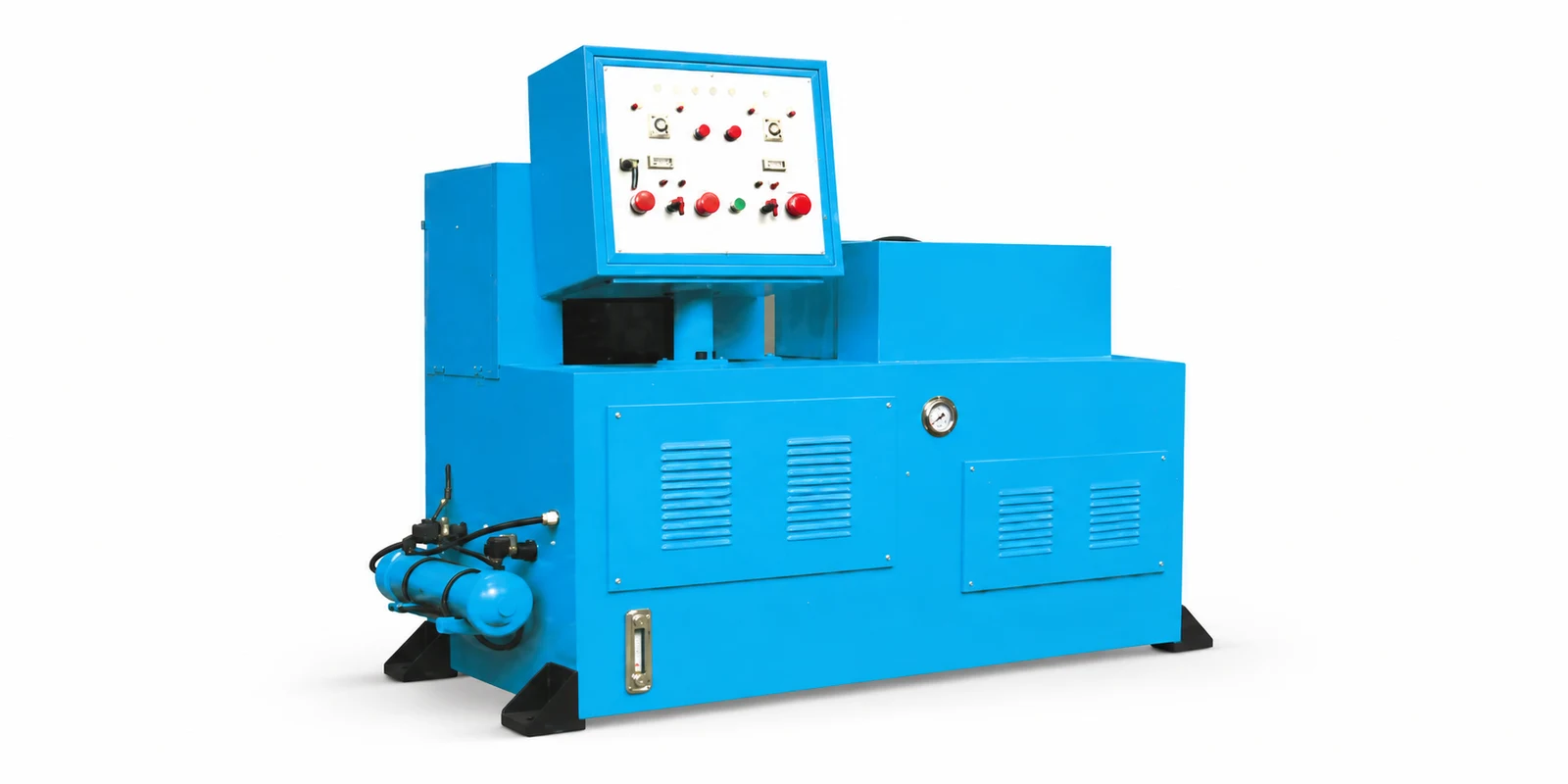

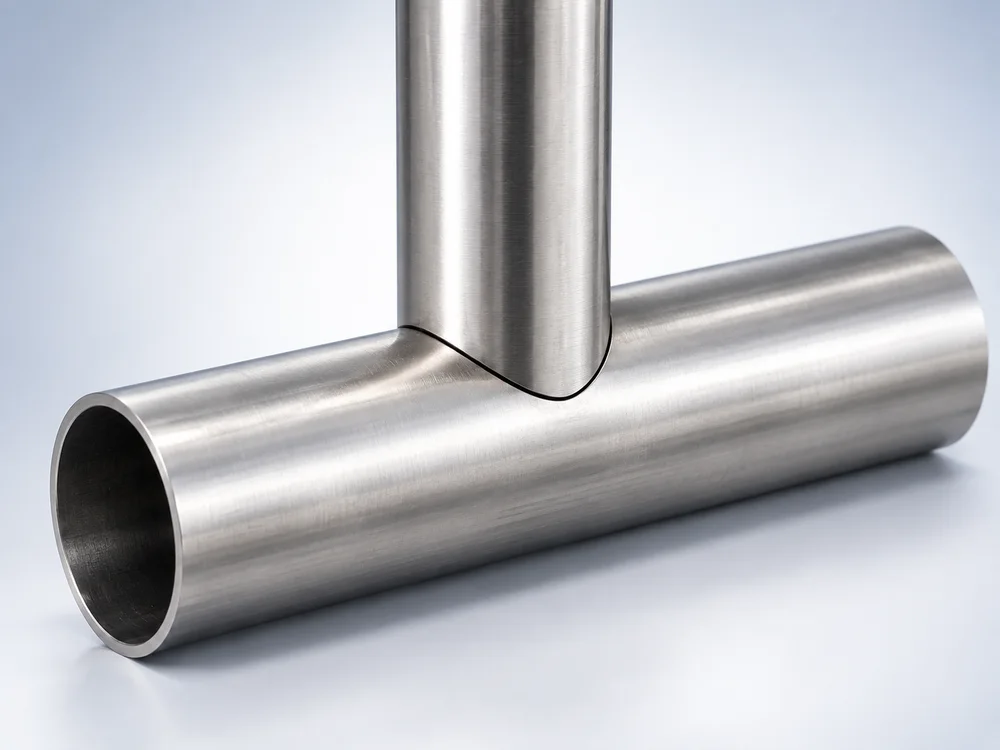

CH Series Tube Notching

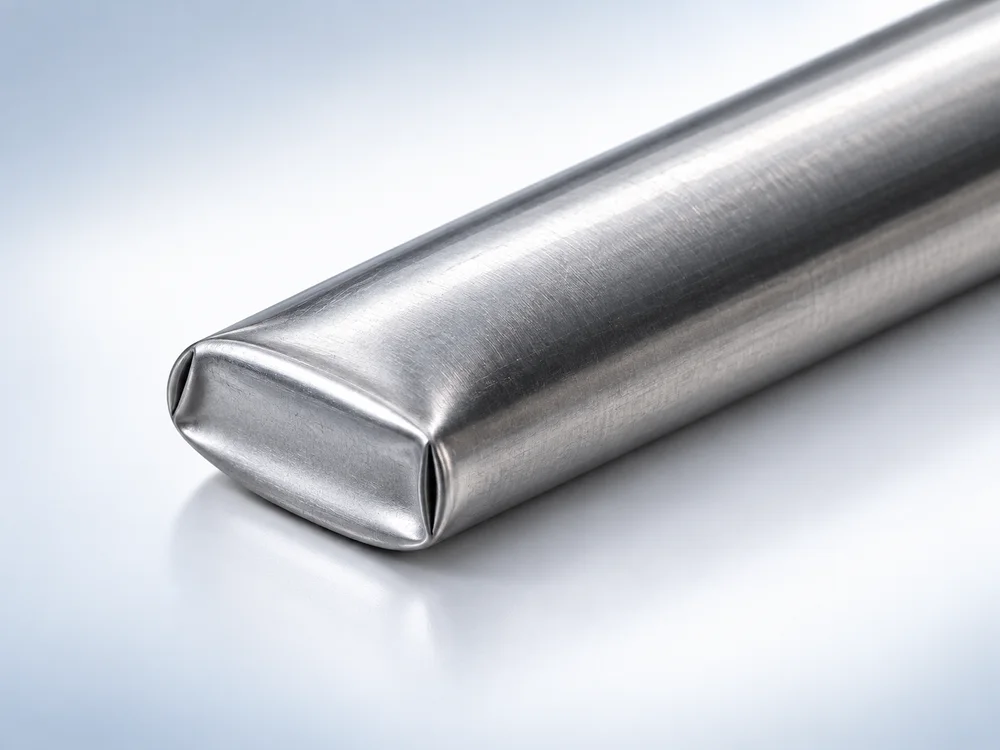

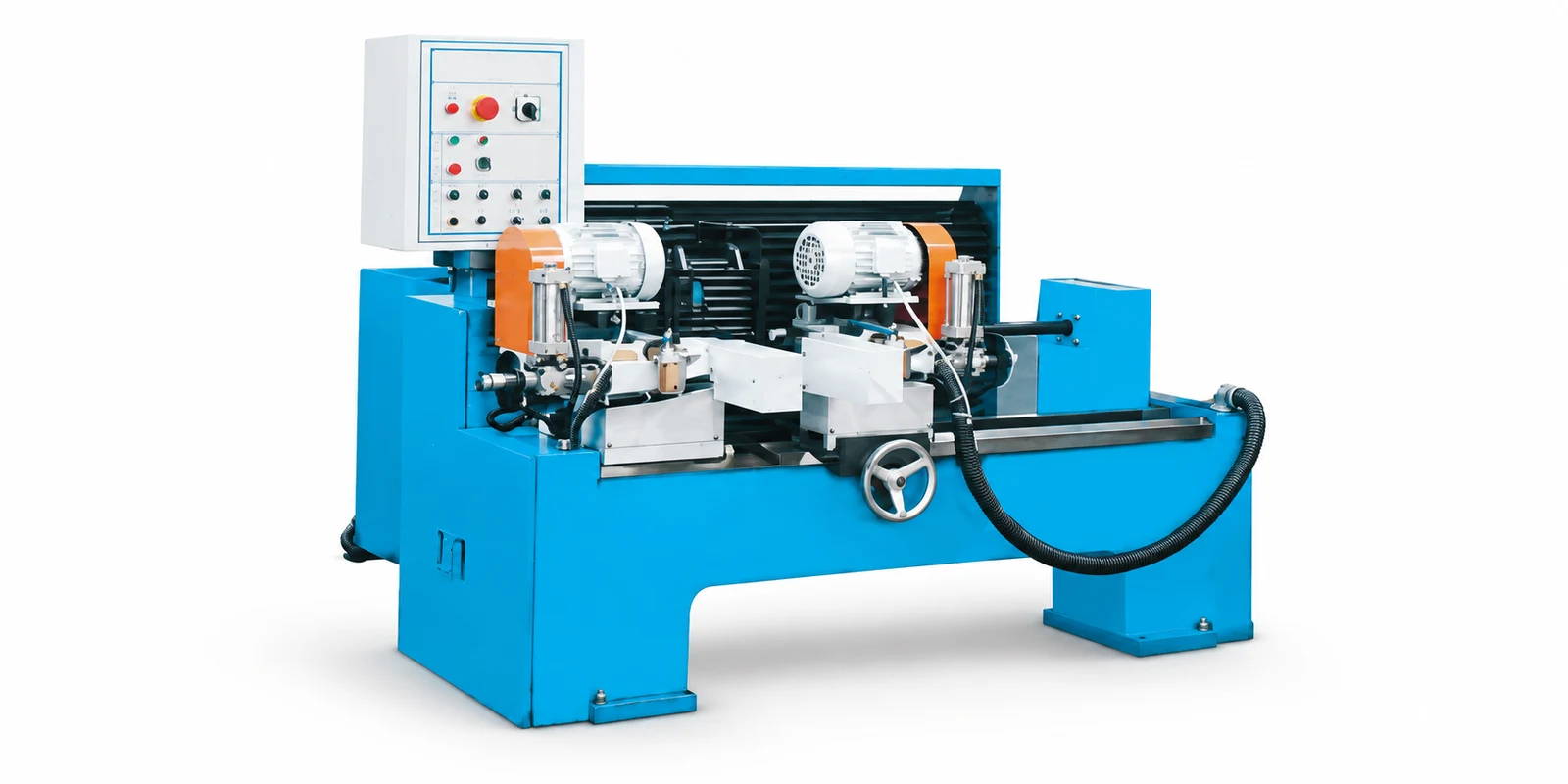

FK Series Tube Sealing

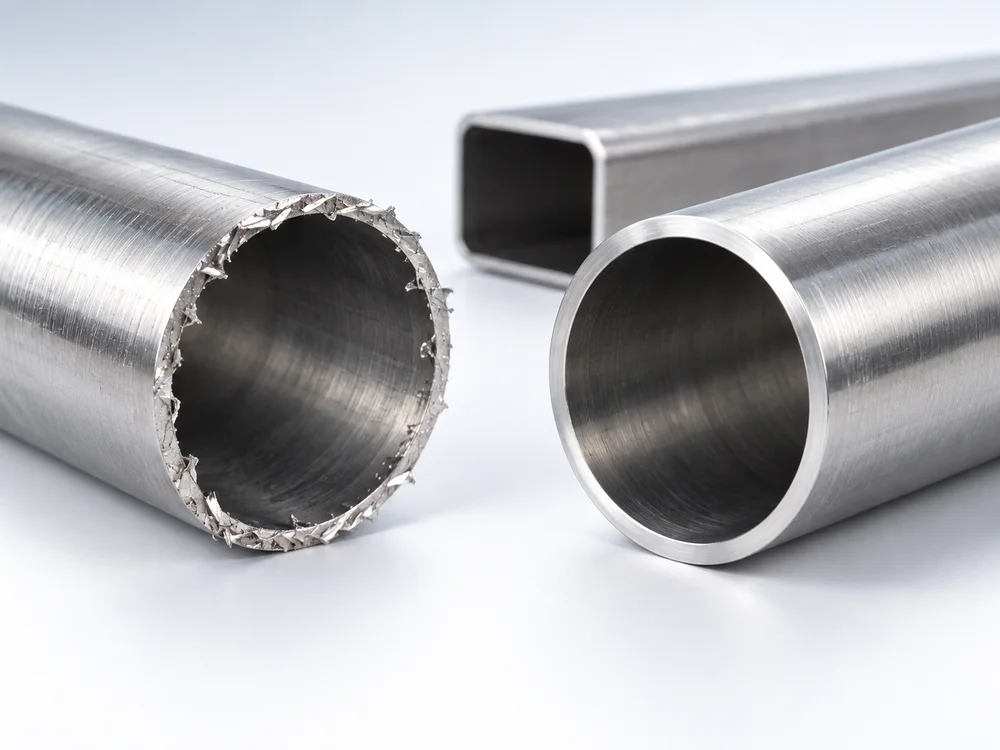

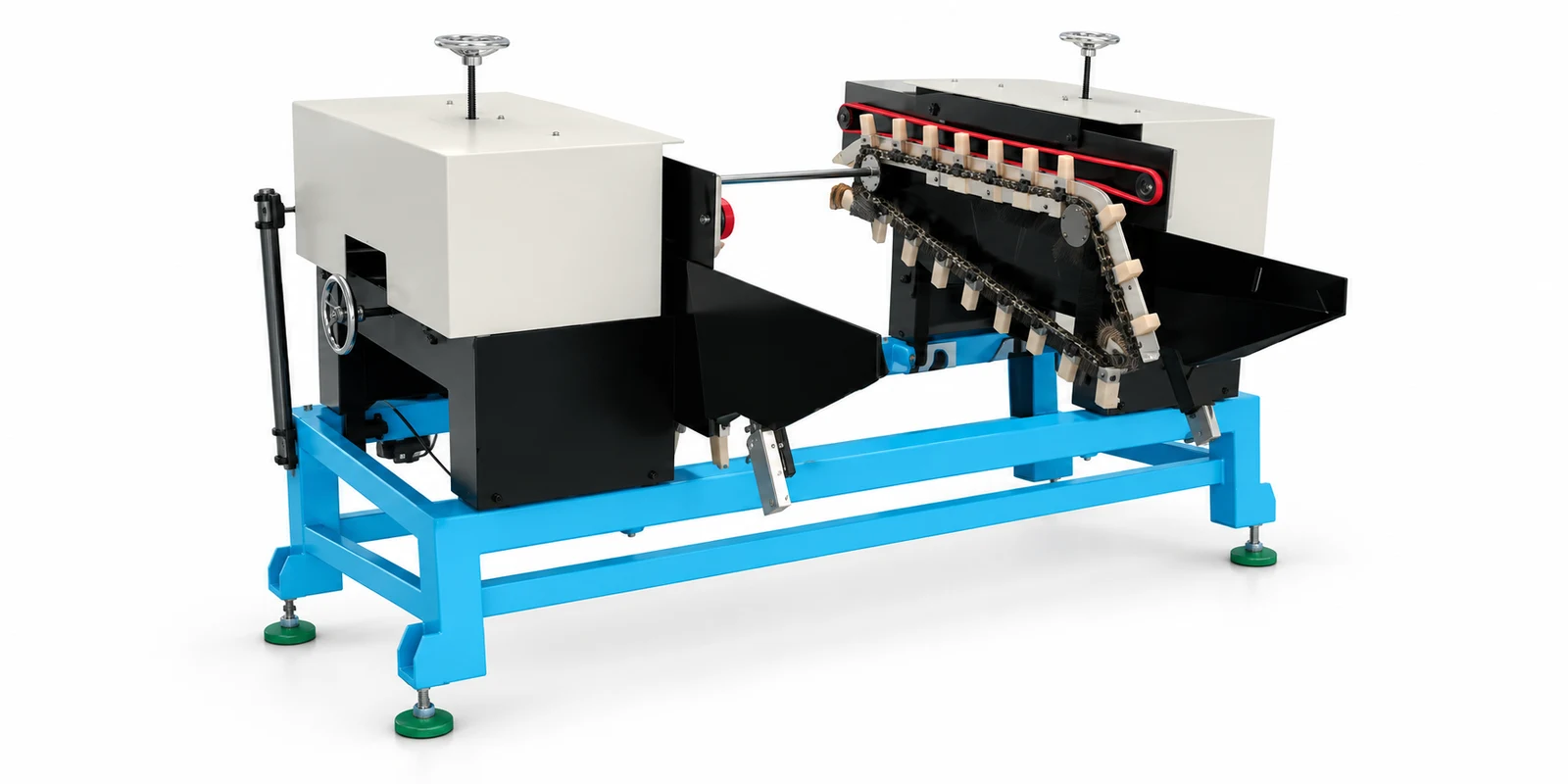

RS-MC90-1000 Deburring

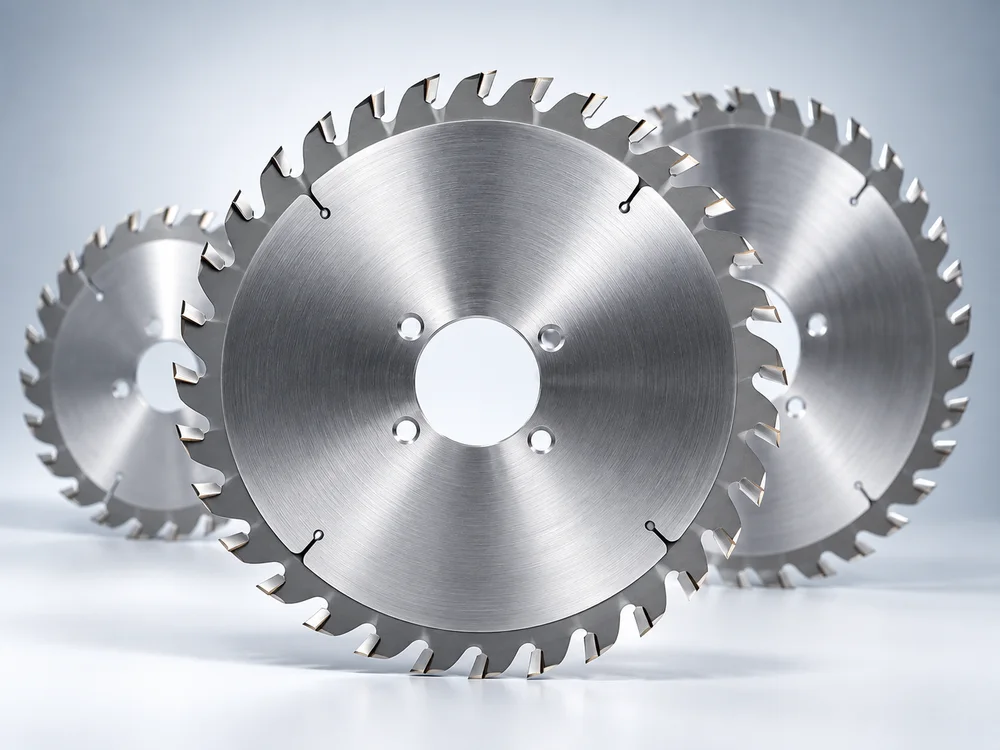

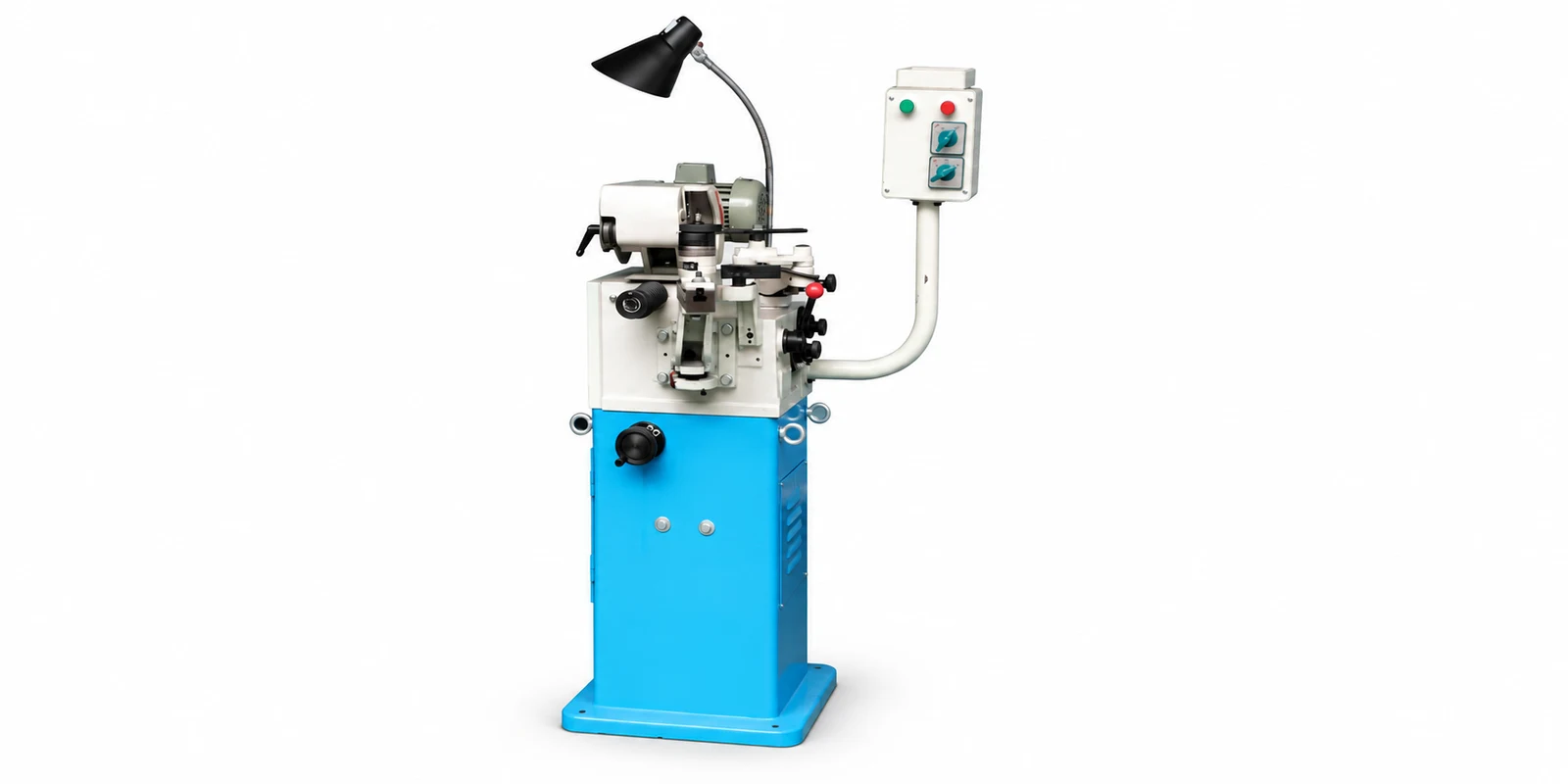

RS-450 Saw Blade Grinding
