Introduction
Rotary draw bending is widely considered when a tubular part needs a controlled centerline radius, repeatable bend angles and a consistent relationship between multiple bends. The process draws the tube around a rotating bend die while other tools hold, guide and support the material. Its suitability depends on the complete part, not simply the outside diameter of the tube.
A sound process review starts with the material, tube shape, outside diameter, wall thickness, requested bending radius and finished-part drawing. Production output, straight lengths between bends, end features and downstream operations also affect the machine and tooling concept. A machine that can generate enough bending force may still be unsuitable if it cannot position the part, accommodate the tooling stack or control the tube wall for the required geometry.
This article explains the operating sequence, the function of each major tool and the questions manufacturers should resolve before purchasing equipment. The objective is to help engineering, production and procurement teams compare proposals on the basis of process fit rather than headline machine capacity.
How the Process and Tooling Work
Basic forming sequence

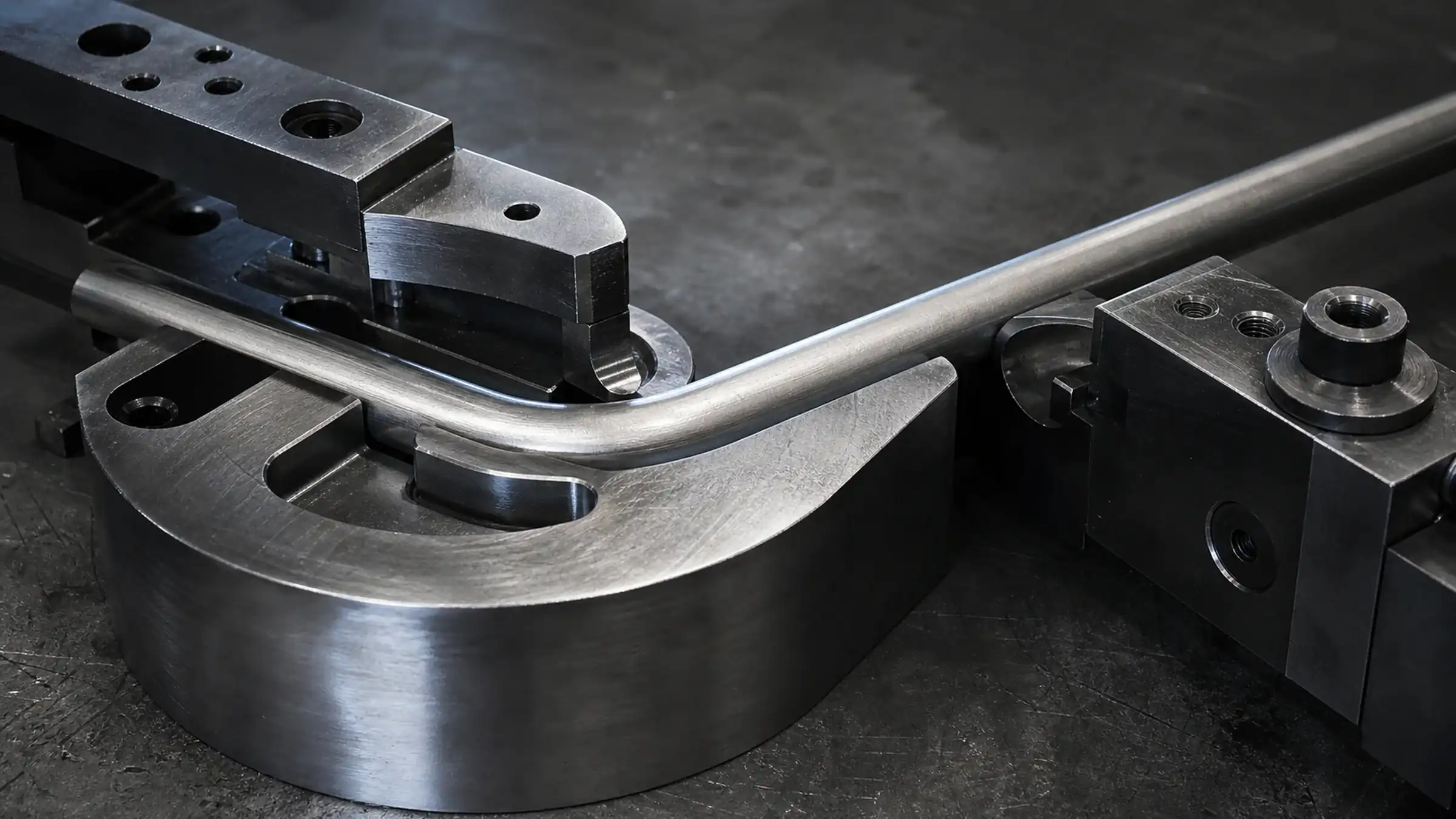

The tube is first loaded to a controlled reference position. The clamp die secures it against the bend die, and the pressure die supports the straight section as the bend die rotates. When required by the material and geometry, a mandrel supports the inside of the tube and a wiper die helps control material near the inside tangent. After the programmed angle is reached, the tools release and the part is repositioned for the next bend.
On a multibend component, the machine may feed the tube, rotate it about its axis and execute another bend. CNC systems can coordinate these movements from a stored program. NC configurations may be appropriate for simpler work where some loading, rotation or positioning is performed manually. The appropriate control level depends on part complexity, changeover frequency, required output and the manufacturer's operating method.
What each tool controls
| Tool | Primary function | Questions to review |
|---|---|---|
| Bend die | Defines the nominal bend radius and supports the outside profile | Does the groove match the tube shape and actual dimensions? |
| Clamp die | Transfers the pulling force into the tube | Is there enough grip length without marking the functional surface? |
| Pressure die | Guides and supports the tube during the draw | Is its length and movement suitable for the bend geometry? |
| Mandrel | Supports the bore where collapse or flattening is a concern | What nose position and ball arrangement suit the material and radius? |
| Wiper die | Controls the inside wall near the tangent | Is the tip material, rake and position compatible with the application? |
| Collet or chuck | Holds and positions the tube between bends | Can it grip the available straight section and clear existing features? |
These tools form a system. Changing one setting can affect several visible results. For example, moving a mandrel forward may improve support in one case but increase drag or marking in another. Tool position, surface condition and lubrication therefore need to be evaluated together with machine motion.
Variables that influence the result
Material grade and condition affect ductility, springback and surface sensitivity. Tube dimensional variation affects how the tools contact the workpiece. The ratio between outside diameter, wall thickness and centerline radius helps indicate how demanding the bend may be, but no single ratio can guarantee the result.
Other relevant variables include bend angle, tangent length, distance between bends, weld seam orientation, prior forming, coatings and holes near the bend zone. A finished-part drawing is particularly important because the straight stock may be easy to bend while the completed sequence creates interference between the part, machine head and tooling.
Applications and Equipment Selection
Rotary draw bending can be considered for frames, handles, fluid lines, furniture structures, exhaust components, fitness equipment and fabricated tubular assemblies. The process may handle round tube as well as square, rectangular or profiled sections when the machine, tooling and material behavior are suitable. Profiled sections often require closer attention to orientation, corner condition and visible surface marking.
Use the following checklist when reviewing a proposed bending solution:
- Confirm the actual material specification and supply condition.
- Record tube shape, outside dimensions and wall thickness tolerances.
- Identify the smallest centerline radius and largest bend angle on every part.
- Check straight lengths before the first bend, between bends and after the final bend.
- Mark holes, brackets, weld seams, coatings and cosmetic surfaces on the drawing.
- Define how bend angle, rotation and linear dimensions will be inspected.
- Estimate output by product mix, batch size and shift pattern, not only pieces per minute.
- State whether loading, unloading, seam detection or part transfer should be automated.
- Plan for tooling storage, changeover, lubrication and operator access.
- Request a review of the most difficult representative part before final configuration.
Production volume is only one selection factor. A manually assisted cell may provide sensible flexibility for varied low-volume work, while automated feeding and unloading may support stable repeat production. Automation should be justified by the real part family, operator interaction, material presentation and downstream flow.
Common Mistakes
One common mistake is selecting a machine from maximum tube diameter alone. Published diameter capacity is normally conditional on material, wall thickness, radius and machine configuration. The actual part may also be limited by tooling clearance or interference during rotation.
Another mistake is treating tooling as an accessory to be finalized after the machine order. Tool geometry, grip length and support strategy influence machine space, axis travel and process feasibility. Tooling should be reviewed with the machine concept.
Teams also underestimate dimensional variation in incoming tube. A process developed with one sample can behave differently when wall thickness, hardness or weld seam position changes. Purchasing specifications and incoming inspection should support the intended forming process.
Finally, output estimates sometimes ignore loading, gauging, tool cleaning, changeovers and inspection. A realistic cycle study should include the complete production routine and the expected product mix.
Information Buyers Should Provide
Provide a finished-part drawing and, where possible, a straight-tube drawing or cut-length definition. The technical package should identify tube material, supply condition, shape, outside diameter or profile dimensions, wall thickness, centerline bending radius, bend angles and tolerances. Include the required production output and expected batch sizes.
Also identify cosmetic surfaces, coating condition, weld seam requirements, holes or features near bends, end forming operations and any gauges already used. A 3D model can help with collision review, but it should not replace a controlled drawing. If several parts are planned, submit the full range and clearly mark the part expected to be most difficult.
Frequently Asked Questions
Is a mandrel always required?
No. Mandrel need depends on the tube geometry, material, bending radius and acceptable cross-section change. Some parts can be formed without internal support, while more demanding combinations may require a plug or ball mandrel. The decision should follow a part and sample review.
What is the difference between CNC and NC tube bending?
CNC equipment can coordinate several programmed axes for feeding, rotation and bending, which may suit complex multibend parts or repeat production. NC equipment may use simpler controlled motions with more manual handling. Neither label alone defines process quality. The correct choice depends on geometry, output, changeover and operator workflow.
Can one tooling set bend different tube sizes?
Normally, the tube-contacting grooves are designed around a specific tube size and bend radius. Limited sharing may be possible within a carefully reviewed part family, but assuming universal tooling can create poor support or surface damage. Each proposed combination should be confirmed.
How should springback be managed?
Springback can be addressed through programmed compensation, controlled tooling and a stable material supply. The required correction may change with material condition and geometry, so it should be established through qualified trials and maintained through process control.
Related Machines
CNC Tube Bending Machines may suit multibend components that need coordinated feed, rotation and bend control. NC Tube Bending Machines may suit simpler parts or production methods with more manual positioning. Final configuration remains conditional on tube material, shape, outside diameter, wall thickness, bending radius, finished-part drawing and required output.
