How to Choose the Right Tube Bending Machine for Your Production

Select a tube bending machine by working backward from the finished part, material behavior, and required production flow. This guide explains the practical questions that engineering, production, and purchasing teams should resolve before requesting a recommendation.

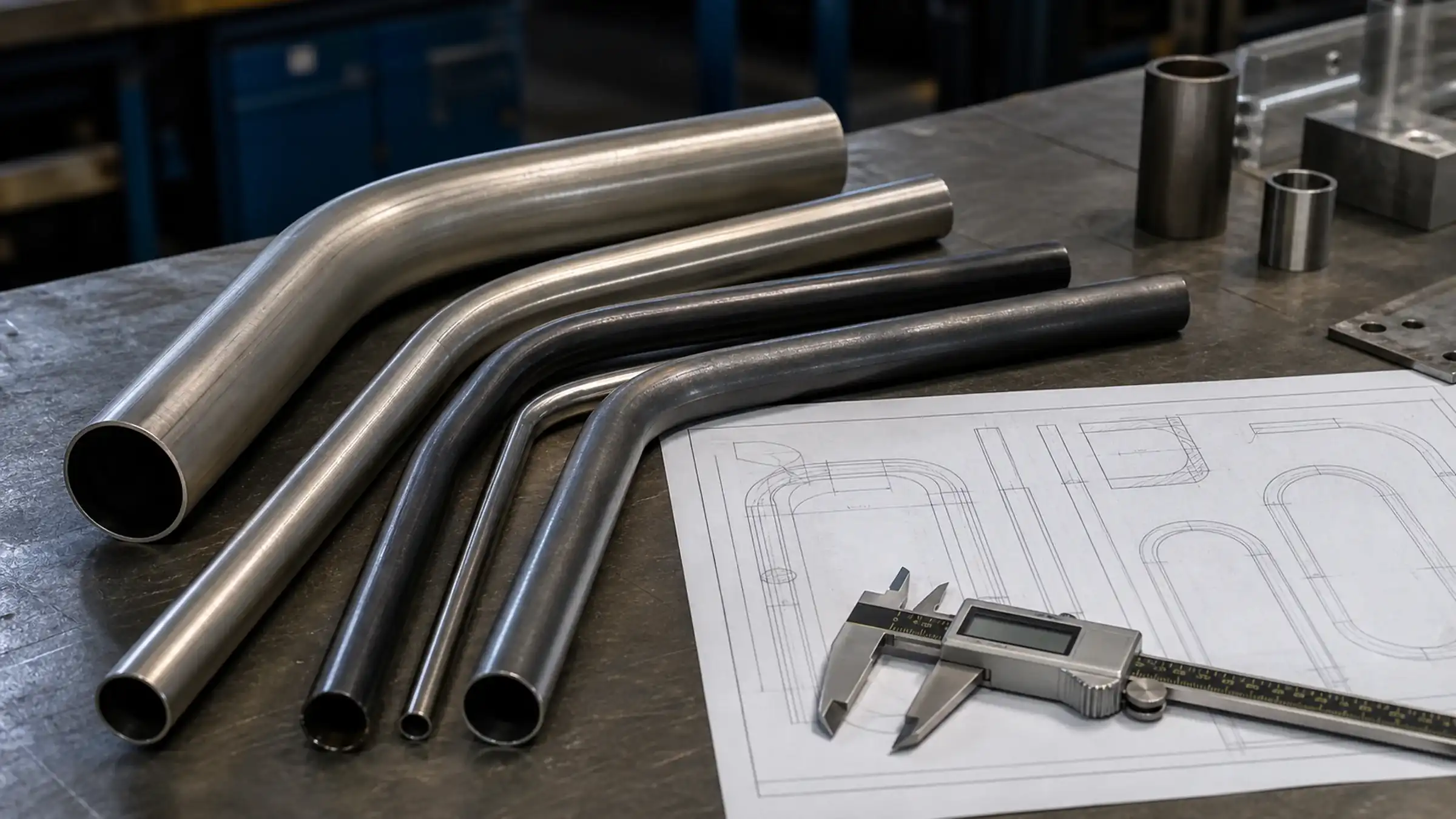

Manufacturing engineer reviewing a finished tube drawing beside a bending workstation

Loading the table of contents.

Introduction

Choosing a tube bending machine is not primarily a question of selecting the largest model or the highest number of controlled axes. It is a process-matching decision. The correct configuration depends on what must be produced, how consistently it must be produced, and how the bending operation connects with cutting, punching, end forming, inspection, and assembly.

A useful selection process starts with the finished part. Review the tube material, tube shape, outside diameter or OD, wall thickness, bending radius, straight lengths between bends, bend angles, and orientation between bend planes. Then consider required output, batch size, part variety, operator involvement, available floor space, and the way material will enter and leave the machine.

Machine capability should always be confirmed against the actual application. A configuration that can form one carbon steel round tube may not be suitable for a thin-wall stainless tube, a square section, or a part with a short distance between bends. Early technical review reduces the risk of ordering a machine that is difficult to tool, slow to change over, or poorly integrated with the rest of the production route.

Start With the Finished Part and Production Need

The finished-part drawing is the most important selection document. It should show all bend centerlines, dimensions, tolerances, cut length, end conditions, holes, brackets, and any areas where marking is unacceptable. If a three-dimensional model is available, include it together with a controlled two-dimensional drawing. The model helps assess spatial interference, while the drawing defines dimensions and acceptance requirements.

Check the tube and bend geometry

Tube geometry determines the forming challenge and the likely tooling arrangement. Record the following before comparing machine models:

  • Tube material and, where available, the material grade or specification
  • Tube shape, such as round, square, rectangular, oval, or profile
  • OD or complete section dimensions
  • Wall thickness and its permitted variation
  • Required centerline bending radius
  • Maximum bend angle and number of bends per part
  • Minimum straight length between adjacent bends
  • Rotation angle between bend planes
  • Surface finish requirements and protected areas

The ratio between OD, wall thickness, and bending radius influences the likelihood of flattening, wrinkling, wall thinning, and surface marking. These outcomes also depend on material condition, dimensional variation, tooling design, lubrication, and machine setup. For that reason, a radius should not be described as feasible based on one dimension alone.

Define the production pattern

Required output must be stated as a realistic operating target, not just an annual total. Provide expected parts per shift, shifts per day, batch quantities, number of part numbers, and typical changeover frequency. A high-volume repeat part may justify automatic feeding, loading, unloading, or integrated inspection. A mixed-product workshop may benefit more from flexible programming, accessible tooling, and efficient recipe changes.

Also identify who will operate and maintain the equipment. Control sophistication should support the production team rather than add unnecessary complexity. Training requirements, program management, access for adjustment, and preventive maintenance should be considered alongside cycle time.

Compare Machine Architecture and Process Requirements

Use a structured comparison instead of evaluating isolated specifications.

Selection factorQuestions to askWhy it matters
Control approachHow many motions must be programmed and coordinated?It affects flexibility, repeatability, setup method, and operator workload.
Tooling systemIs a mandrel, wiper die, pressure die assist, or multi-stack tooling likely to be required?Tooling can determine whether the part is practical and how changeovers are handled.
Feeding and rotationWhat is the longest feed length and how are bend planes indexed?The carriage arrangement must suit part length, geometry, and interference limits.
Loading methodWill tubes be loaded manually, from a bundle, or from an upstream process?Material handling can affect labor, safety planning, and achievable output.
Part removalCan the formed part clear the machine and tooling?Complex parts may need a specific unloading path or machine layout.
Quality controlWhat dimensions require inspection and how will results be recorded?Inspection planning should match drawing requirements and production risk.
Upstream and downstream workAre cutting, punching, chamfering, washing, or end forming required?Process order affects datum control, handling, work in progress, and line design.

CNC or NC control

CNC tube bending machines can be appropriate when a part requires coordinated feeding, rotation, and bending, especially for multiple bends in different planes. NC machines can be practical for simpler parts or production methods where some positioning and handling remain operator controlled. The correct choice depends on the part family, production target, staffing model, and required process control. The control label alone does not establish suitability.

Tooling and bend support

Request a tooling concept as part of the machine review. The concept may include the bend die, clamp die, pressure die, mandrel, collet, wiper die, and any special support. Not every part needs every tool. Thin walls, tight radii, sensitive surfaces, or demanding cross-section requirements may require additional support, but the need should be evaluated from drawings and sample material.

Integration and future parts

Consider verified future parts, but avoid buying around undefined possibilities. Provide drawings for the largest, smallest, and most difficult known parts. If the machine must connect with a Tube Cutting Machine, Tube Punching Machine, or another process, define the material transfer, datum strategy, buffer, and responsibility for line control.

Common Mistakes

One common mistake is comparing machines only by maximum OD. Maximum capacity can change with material, wall thickness, radius, tooling, and bend angle. A nominal capacity statement is not a substitute for an application review.

Another mistake is sending only a product photograph. A photograph can explain the component, but it does not reliably communicate centerline geometry, tolerance, wall thickness, or bend orientation. Selection should be based on a finished-part drawing and tube specification.

Teams also underestimate straight length and interference. A part may fit the bending capacity but collide with the carriage, floor, tooling, or machine frame during rotation. A bend sequence and interference review are therefore essential.

Finally, avoid using theoretical cycle time as the only output measure. Loading, program selection, clamping, bending, unloading, inspection, tool adjustment, and planned changeovers all affect practical output. Ask suppliers to state the assumptions behind any cycle estimate.

Information Buyers Should Provide

Use this checklist when requesting a machine recommendation:

  • Finished-part drawing with dimensions, tolerances, bend planes, and end conditions
  • Tube material and material grade, if controlled
  • Tube shape, OD or section dimensions, and wall thickness
  • Centerline bending radius for every bend
  • Tube cut length and finished part envelope
  • Annual and per-shift output targets
  • Batch size, number of part numbers, and changeover expectations
  • Current process route and any upstream or downstream equipment
  • Loading and unloading preference
  • Surface quality and inspection requirements
  • Available sample tubes and representative finished parts
  • Site electrical standard, floor space, and any line-interface constraints

Where information is not yet confirmed, mark it as TBC rather than estimating. A supplier can then separate confirmed requirements from open engineering questions.

Frequently Asked Questions

Is the largest machine always the safest choice?

No. An oversized machine may increase tooling scale, floor-space demand, energy use, and changeover effort without improving the target process. Select a machine whose verified working range covers the known part family with appropriate margin.

Can one machine bend every material with the same tooling?

Usually not. Tool design and setup can change with material, section, wall thickness, radius, and surface requirement. Even tubes with the same OD may behave differently. Confirm tooling against the actual material and drawing.

When should automation be considered?

Automation can be considered when stable part design, repeat volume, material presentation, and downstream flow support it. It may be less beneficial when batches are small, parts change frequently, or incoming tubes cannot be presented consistently.

Is a sample bend necessary before ordering?

The need depends on process risk and available evidence. A sample or feasibility review can be valuable for tight radii, thin walls, unusual profiles, sensitive surfaces, or demanding appearance requirements. Agree on material, drawing revision, measurement method, and acceptance criteria before any trial.

CNC Tube Bending Machines may suit multi-bend parts that require programmable feeding and rotation. NC Tube Bending Machines may suit simpler geometries or production methods with more operator involvement. Tube Cutting Machines can support controlled blank preparation when cut length and end condition are important to the bending datum.

Related equipment should be reviewed as part of the complete process, not added automatically. The correct combination depends on whether holes, chamfers, formed ends, washing, or inspection should occur before or after bending.

Send Your Drawing

Send the finished-part drawing together with the tube material, tube shape, OD, wall thickness, bending radius, and required output. Include representative sample material when material behavior or surface quality may affect the tooling decision. Raysun can then review a conditional machine and tooling concept against the information supplied.
