Introduction

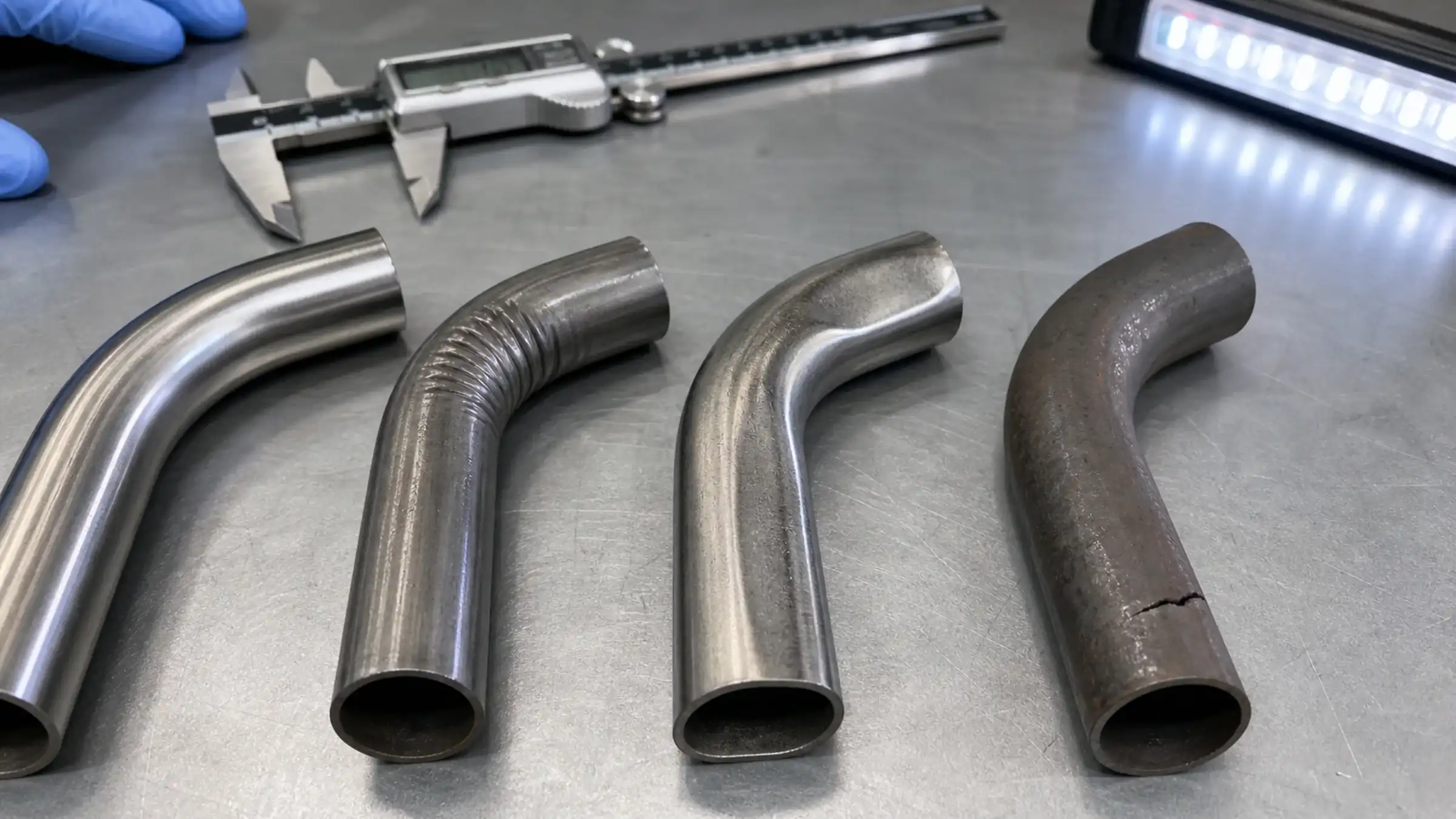

Wrinkles on the inside radius, flattening of the cross-section and cracks on the outside radius are different signs of an unstable or unsuitable bending process. They can be influenced by material condition, tube variation, bend severity, tool design, tool position, lubrication and machine motion. Because these factors interact, changing settings at random often hides the cause and makes the next batch harder to control.
A disciplined investigation begins with a clear defect definition and a verified baseline. Record where the defect starts, whether it repeats at the same point and whether it appears on every tube or only part of the batch. Confirm the tube material, shape, outside diameter, wall thickness, bending radius and finished-part geometry before adjusting the machine.
The objective is not to eliminate every visible change in cross-section. Forming naturally redistributes material, and the allowable result depends on the function and drawing requirements of the part. The objective is to create a stable process that meets defined acceptance criteria without unnecessary tooling force or trial-and-error adjustment.
Diagnose the Defect Before Adjusting the Process
Wrinkling on the inside radius
The inside wall is compressed during bending. If that material is not controlled, it can buckle into waves. Possible contributors include insufficient support near the tangent, an unsuitable or worn wiper die, incorrect mandrel position, excessive clearance, poor pressure-die control, inconsistent lubrication or a geometry that is demanding for the tube condition.
Check whether the wrinkles begin at the tangent, develop through the bend or appear as isolated marks. A problem at the tangent may point toward wiper die position or tip condition, while a pattern extending through the bend may require a wider review of support, pressure and material stability. Do not advance a mandrel or increase pressure without observing the resulting drag, marking and machine load.
Flattening or cross-section collapse
Flattening occurs when the tube cannot maintain its original cross-section through the bend. The outside wall is stretched, the inside wall is compressed and the sides can move inward. The amount depends on the tube proportions, bend radius, material and support system.
Review bend die groove fit, pressure die support and mandrel design. A mandrel that is too far back may not support the critical zone, while an unsuitable ball arrangement can leave areas unsupported. For square or rectangular sections, also check profile orientation, corner radii and twist. The acceptable cross-section should be defined by the part drawing or an agreed inspection method.
Cracking or splitting on the outside radius
Cracking indicates that the outside wall has exceeded the material's forming capability or contains a local weakness. Potential causes include an unsuitable material condition, excessive work hardening from prior operations, thin local wall, surface damage, weld seam concerns, an aggressive radius or excessive drag.
Inspect the fracture location and surface before changing settings. Confirm the material certificate against the actual supply and measure representative wall thickness around the tube. Review whether cutting, punching or end forming occurred before bending and whether those operations introduced a notch or hardened zone. A different operation sequence may sometimes be more appropriate, but it must be evaluated against dimensional and handling requirements.
| Symptom | First observations | Process areas to review |
|---|---|---|
| Inside wrinkles | Start location, pitch, repeatability, tangent condition | Wiper die, mandrel, pressure die, clearance, lubrication |
| Flattening | Major and minor dimensions, bend location, profile twist | Groove fit, internal support, radius, material variation |
| Outside cracks | Crack origin, seam position, surface condition | Material ductility, wall variation, prior operations, drag |
| Excessive springback | Angle variation by lot or part | Material stability, compensation, tooling restraint, measurement |
| Tool marks | Location and direction of marks | Tool finish, contamination, clamping force, lubrication |
A Structured Correction Workflow
Begin with measurement rather than adjustment. Use the same inspection method, gauge locations and sample orientation for every trial. Save the current program and tool positions so the team can return to the baseline.
Practical troubleshooting checklist:
- Verify the drawing revision and acceptance criteria.
- Confirm material grade, condition, tube shape, outside diameter and wall thickness.
- Inspect the tube for seam position, dents, corrosion, coating damage and cut-end distortion.
- Clean and inspect the bend die, clamp die, pressure die, mandrel and wiper die.
- Confirm tool identity, groove size, alignment and documented setup positions.
- Check lubrication type, application point and consistency.
- Run a controlled sample and record angle, cross-section and surface condition.
- Change one variable at a time within the approved setup range.
- Compare the result with the baseline and record both improvement and new side effects.
- Repeat the trial across more than one tube from the relevant material lot before releasing the process.
Machine settings should be adjusted only after tooling condition and material identity are confirmed. Otherwise, a setting change may compensate temporarily for a damaged tool or variable tube supply. Once a stable combination is found, document tool positions, program revision, lubricant and inspection results so operators can reproduce the setup.
Common Mistakes
The first mistake is assuming that every defect is caused by the machine program. Tool wear, contamination and material variation can create similar symptoms. Inspect these items before rewriting a proven program.
The second mistake is changing several parameters at once. If mandrel position, pressure and lubrication all change, the team cannot identify which change helped or which one created a new mark. Controlled single-variable trials provide stronger process knowledge.
Another mistake is using only bend angle as the acceptance result. A part can meet angle while failing cross-section, surface or tangent requirements. Inspection should reflect the functional drawing.
Teams may also use one visually good sample to approve production. A useful validation should consider representative tube variation, the planned operation sequence and repeat runs. The required validation scope depends on part risk and the manufacturer's quality system.
Finally, do not polish or rework evidence away before recording it. Defect location, direction and relation to the weld seam can help identify the cause.
Information Buyers Should Provide
For a useful technical review, provide the tube material and supply condition, tube shape, outside diameter or profile dimensions, wall thickness, bending radius and finished-part drawing. State the required output, batch size and intended inspection criteria.
Include photographs that show the entire part and close views of each defect, with the bend direction and weld seam marked where relevant. Supply current tooling details, machine type, operation sequence, lubricant information and recorded setup values. If samples come from different material lots, keep their results separate. These details help distinguish a geometry limitation from a tooling, material or setup issue.
Frequently Asked Questions
Can wrinkling be removed by increasing clamping force?
Not necessarily. Clamping force mainly prevents slipping at the clamp area. Wrinkles on the inside bend may relate to support, clearance, wiper condition, pressure die behavior or material compression. Excessive force can create marks or shorten tool life. Review the full tooling system.
Does a larger bend radius always solve cracking?
A larger radius generally reduces outside-wall strain, but cracking can still result from material condition, local wall variation, surface damage or prior operations. Radius changes also affect part fit. Confirm the crack origin and material before changing the drawing.
How much flattening is acceptable?
There is no universal value for every component. Acceptance depends on fluid flow, assembly, fatigue, appearance and customer drawing requirements. Define the measurement method and limit before trials so all suppliers evaluate the same result.
Why does a proven setup fail with a new tube batch?
Tube lots may vary in wall thickness, mechanical condition, seam behavior or dimensions within the purchasing specification. Compare the new batch with the qualified baseline and review whether the incoming specification is tight enough for the process.
